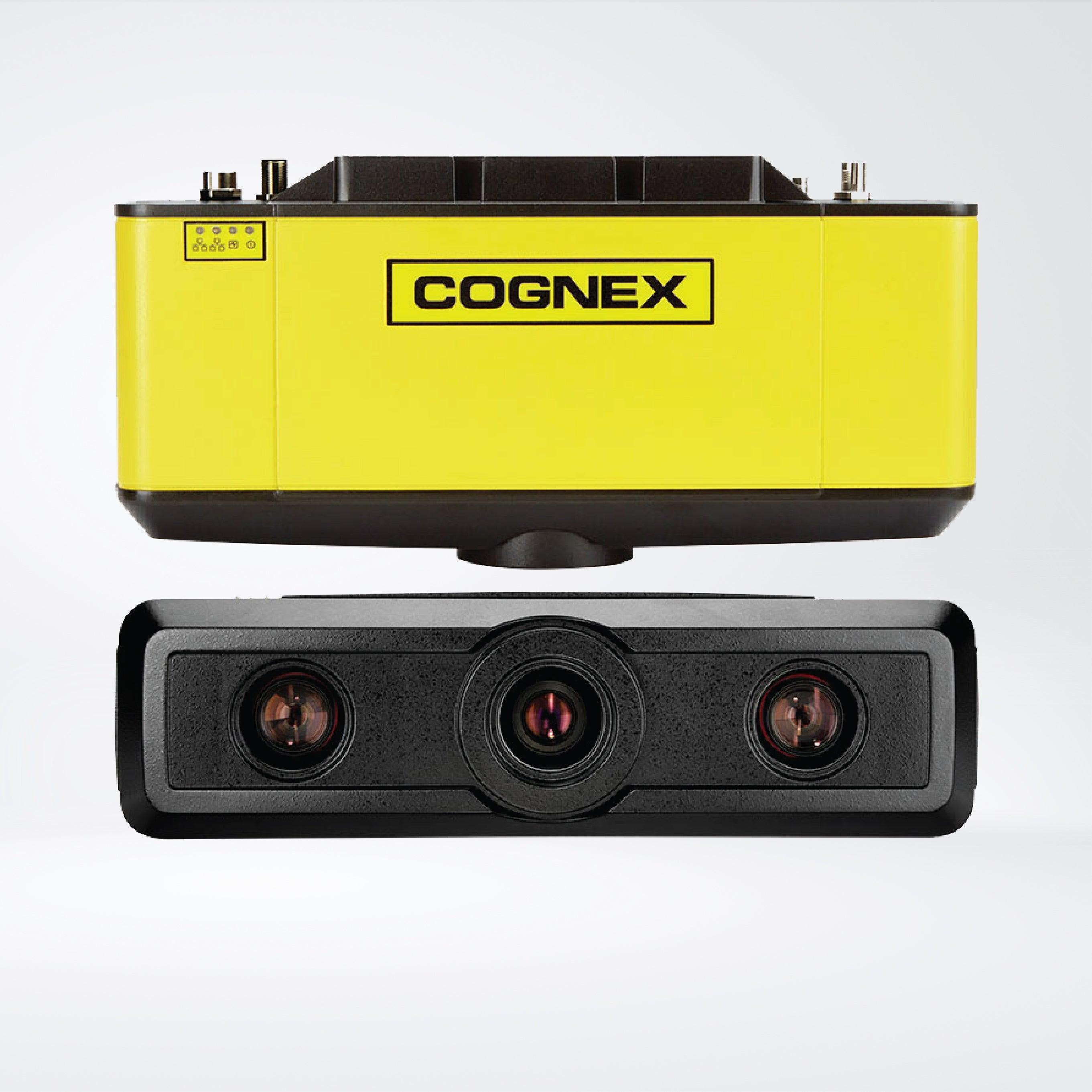

3D-A5000 series area scan 3D camera , Solves 3D applications with unmatched performance, accuracy, and ruggedness

Cognex’s 3D-A5000 series is an area scan 3D camera designed to capture high-resolution 3D images. It features 3D LightBurst technology which rapidly acquires images to maximize throughput. High-resolution 3D images combined with industry-leading Cognex 3D vision tools enable reliable and accurate solutions to applications such as assembly verification, in-line measurement, and robotic guidance.

Features

• Patent-pending 3D LightBurst technology enables rapid image acquisition
• More than 1.5 million 3D data points detect fine features on parts
• High Dynamic Range (HDR) mode captures scenes with high contrast

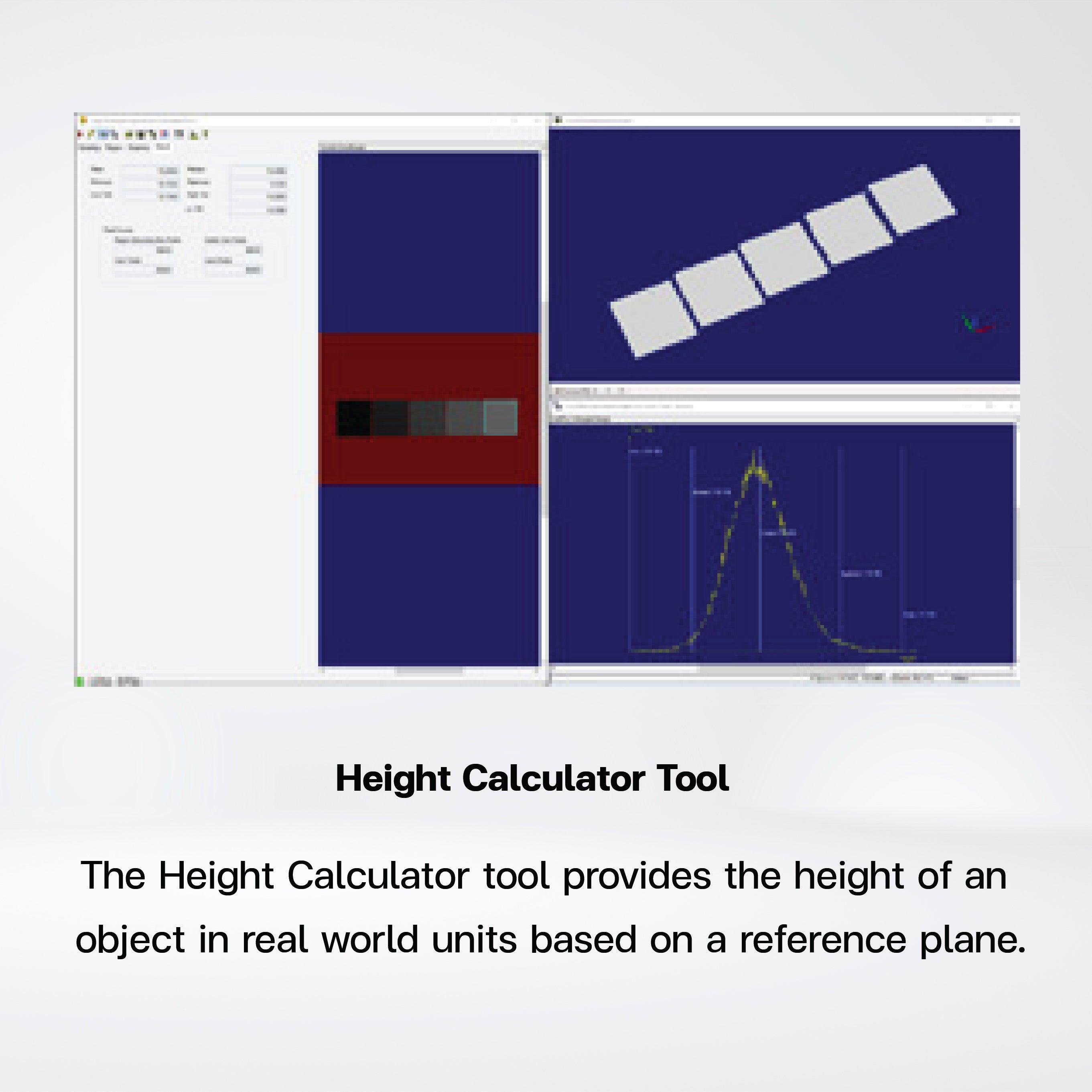

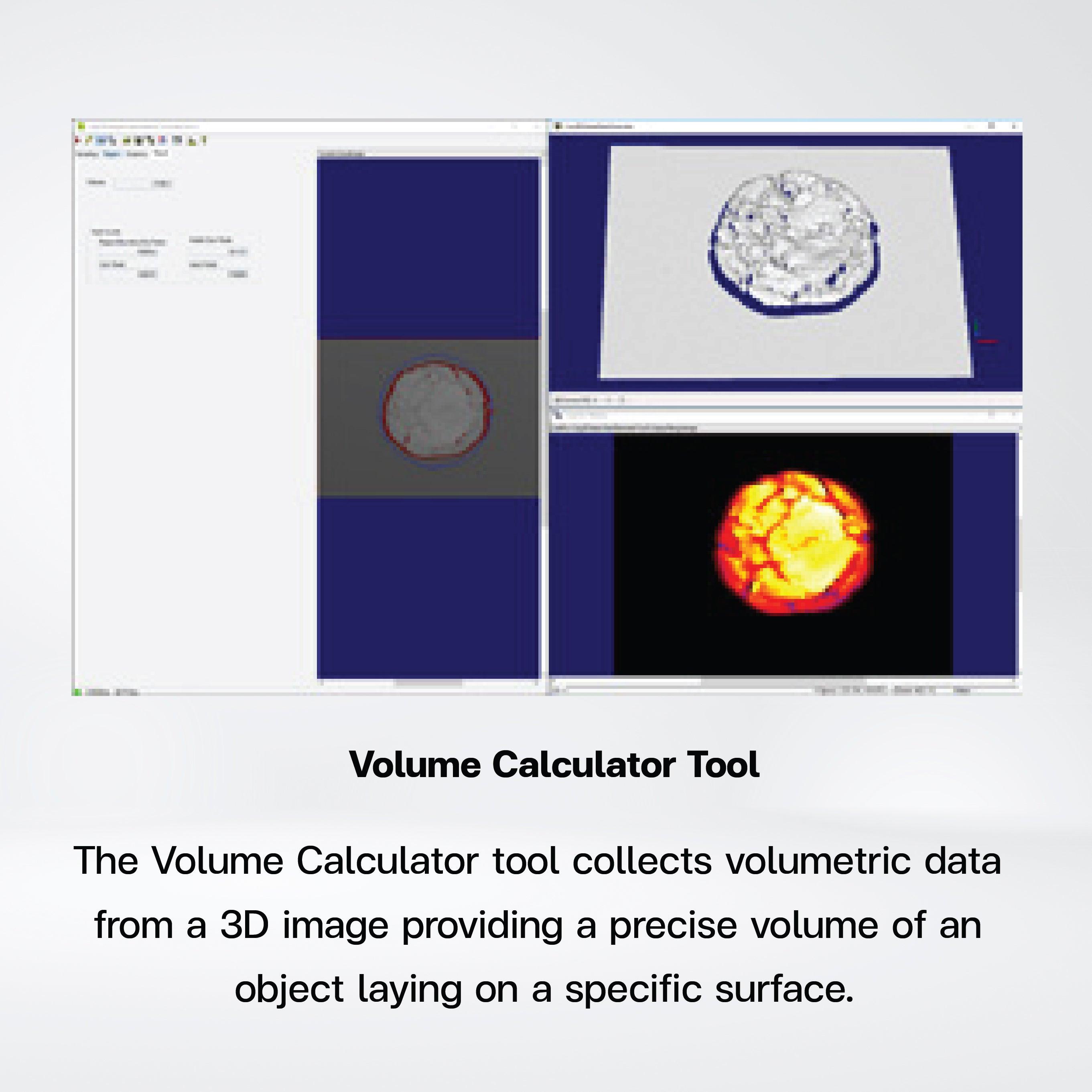

• Powerful, industry proven VisionPro® 3D tools solve challenging 3D applications
• Factory calibration delivers accurate measurement results in real-world units
• Rugged IP65-rated housing provides protection in harsh factory environments

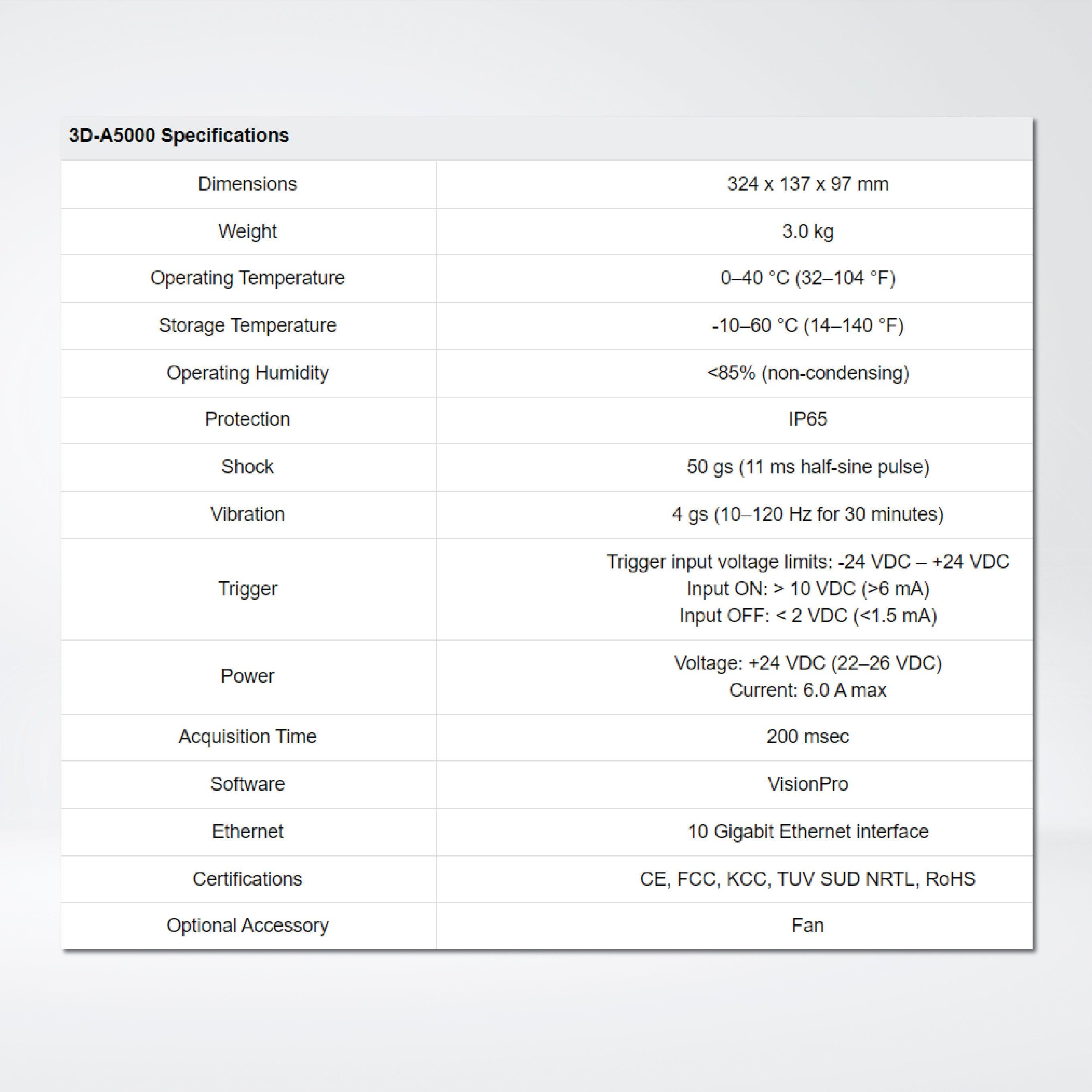

• Dimensions : 324 x 137 x 97 mm
• Weight : 3.0 kg
• Operating Temperature : 0–40 °C (32–104 °F)
• Storage Temperature : -10–60 °C (14–140 °F)
• Operating Humidity : <85% (non-condensing)
• Protection : IP65
• Shock : 50 gs (11 ms half-sine pulse)
• Vibration : 4 gs (10–120 Hz for 30 minutes)
• Trigger
  Trigger input voltage limits: -24 VDC – +24 VDC
  Input ON: > 10 VDC (>6 mA)
  Input OFF: < 2 VDC (<1.5 mA)
• Power :
  Voltage: +24 VDC (22–26 VDC)
  Current: 6.0 A max
• Acquisition Time : 200 msec
• Software : VisionPro
• Ethernet : 10 Gigabit Ethernet interface
• Certifications : CE, FCC, KCC, TUV SUD NRTL, RoHS
• Optional Accessory : Fan

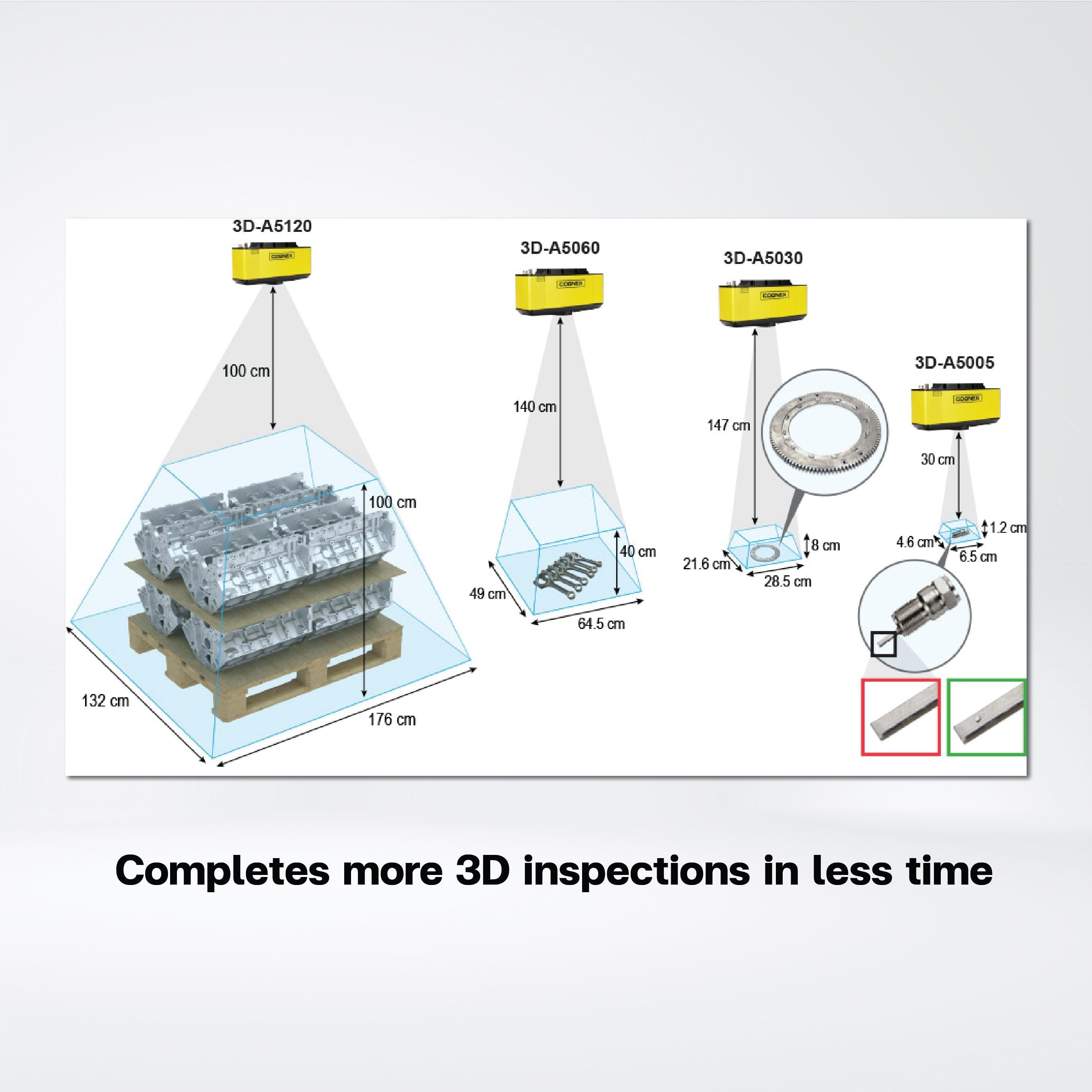

Completes more 3D inspections in less time

The 3D-A5000 features 3D LightBurst technology which casts a unique blue light pattern on a part to acquire high-resolution 3D images at an unparalleled speed. It delivers a full field-of-view (FOV) 3D point cloud image as fast as 200 milliseconds, allowing higher throughput and shorter cycle times for time-critical in-line applications.

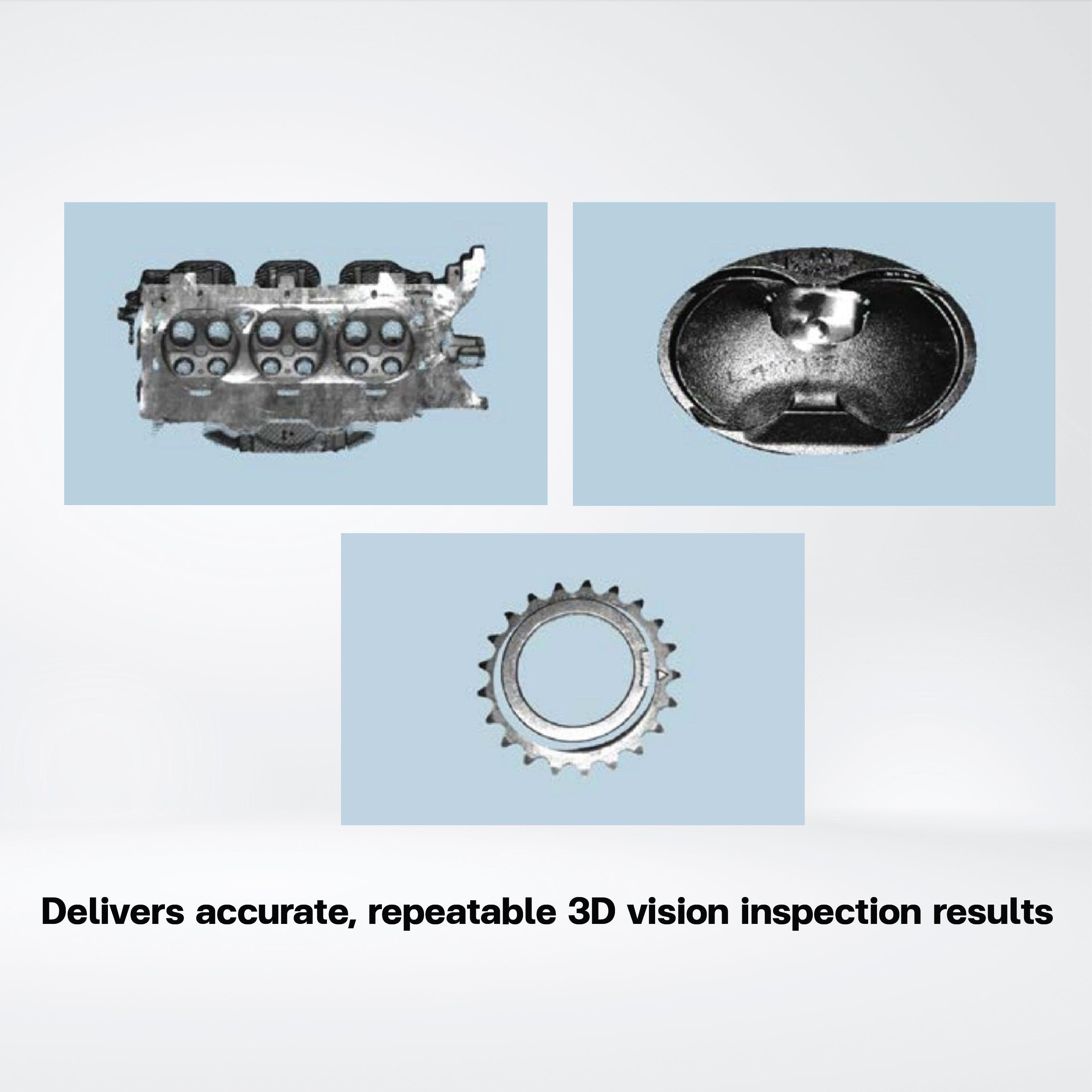

Delivers accurate, repeatable 3D vision inspection results

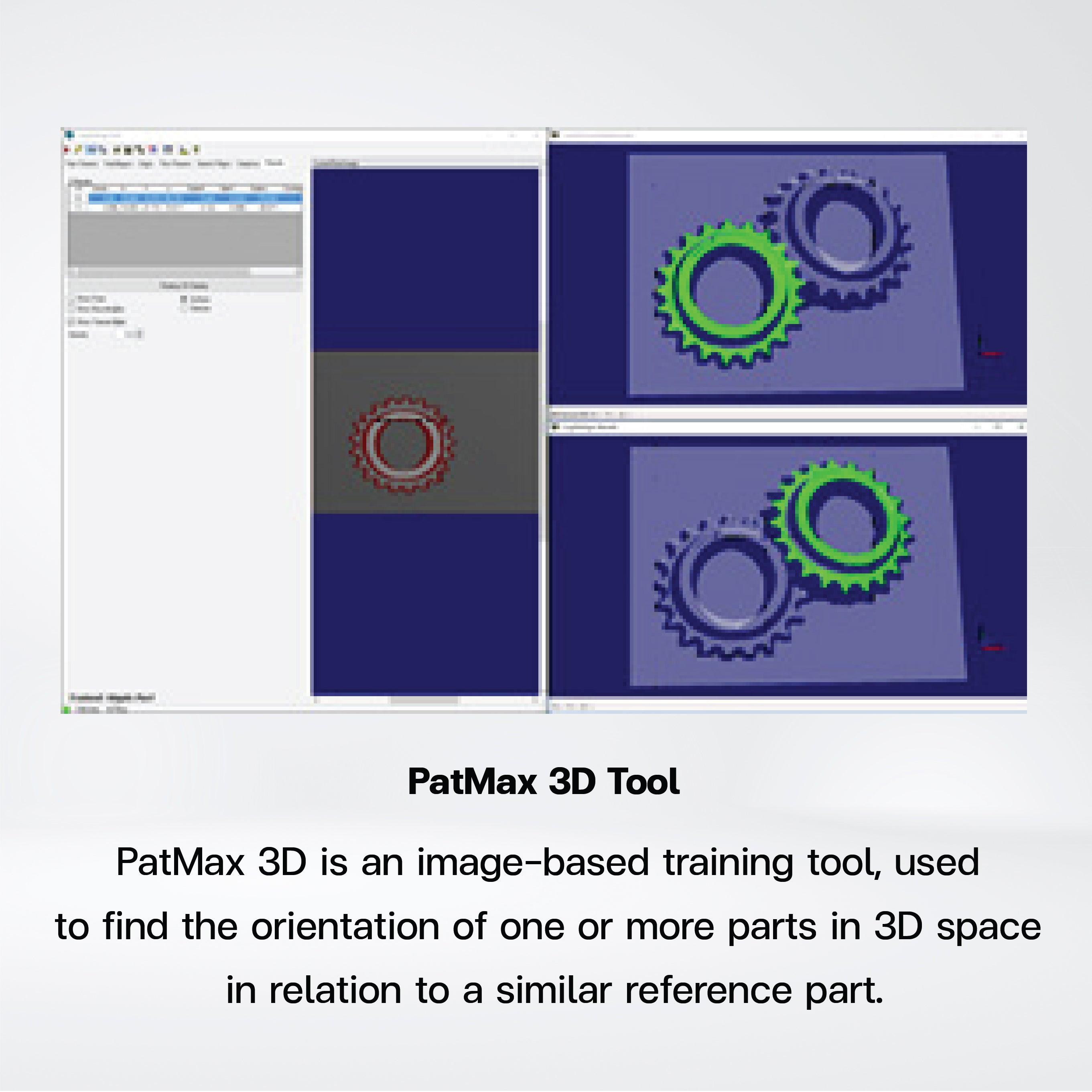

The 3D-A5000 delivers high-resolution 3D point cloud images constructed from over 1.5 million 3D data points. These high-resolution images coupled with a powerful Cognex 3D toolset in VisionPro, including PatMax 3D, allow the 3D-A5000 to solve a wide range of applications from assembly verification to in-line measurement and robotic guidance.

Performs reliably in harsh factory environments

The 3D-A5000 has a rugged IP65-rated, die cast aluminum housing that is built to last on the factory floor. The industrial design ensures consistent measurement results, even under varying temperatures.
