3D-L4000 with VisionPro , 3D laser displacement sensor with PC-based development environment

The 3D-L4000 with VisionPro combines laser triangulation with advanced image formation to create highly-detailed, three-dimensional renderings of parts under inspection. From these topographical renderings, you can capture precise measurements of every surface-level feature including length, width, height, tilt, and volume.

With a rugged, IP-65 rated design and a compact form factor, the 3D-L4000 with VisionPro easily fits into any production environment and offers manufacturers of all size:

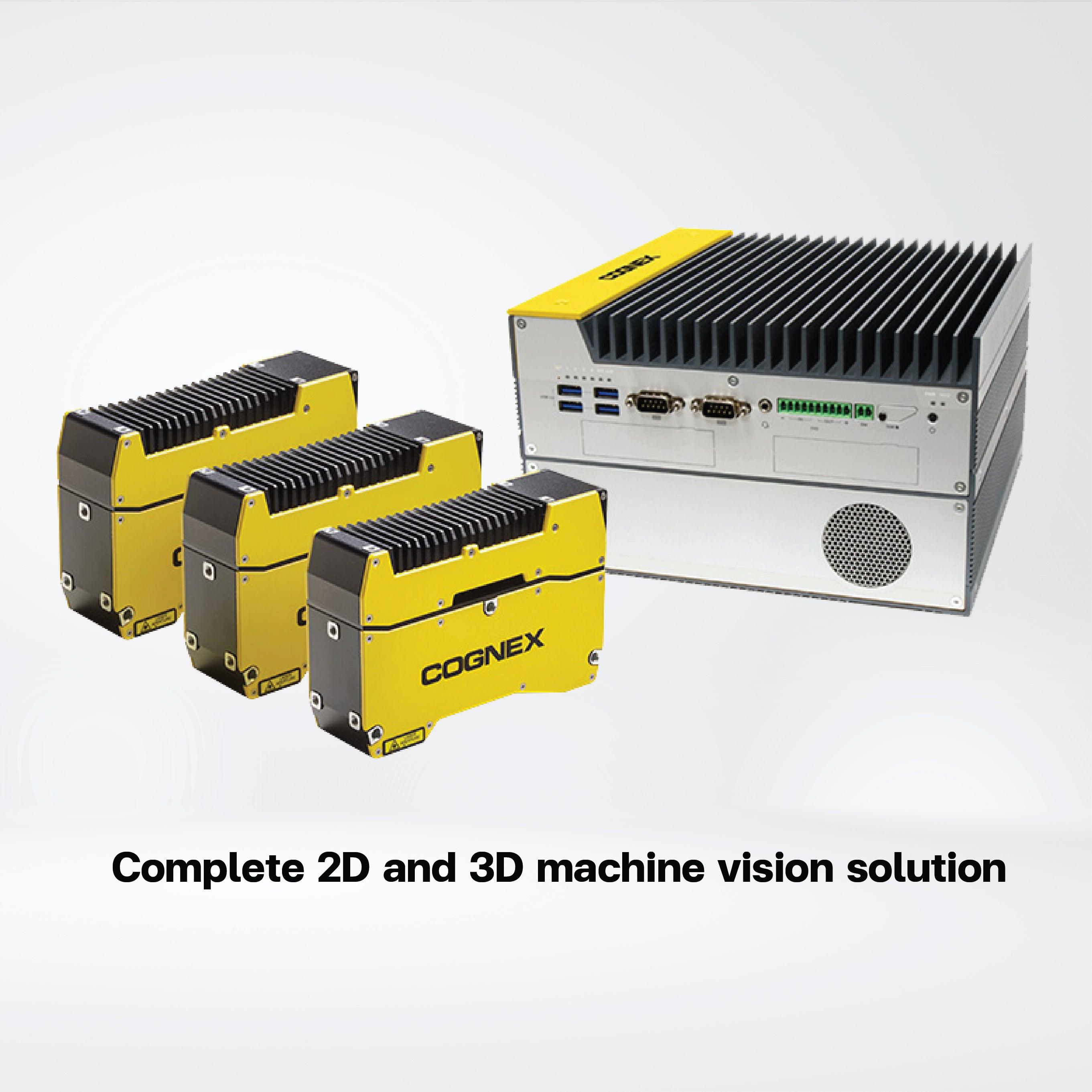

• A versatile solution to automate both 2D and 3D vision tasks

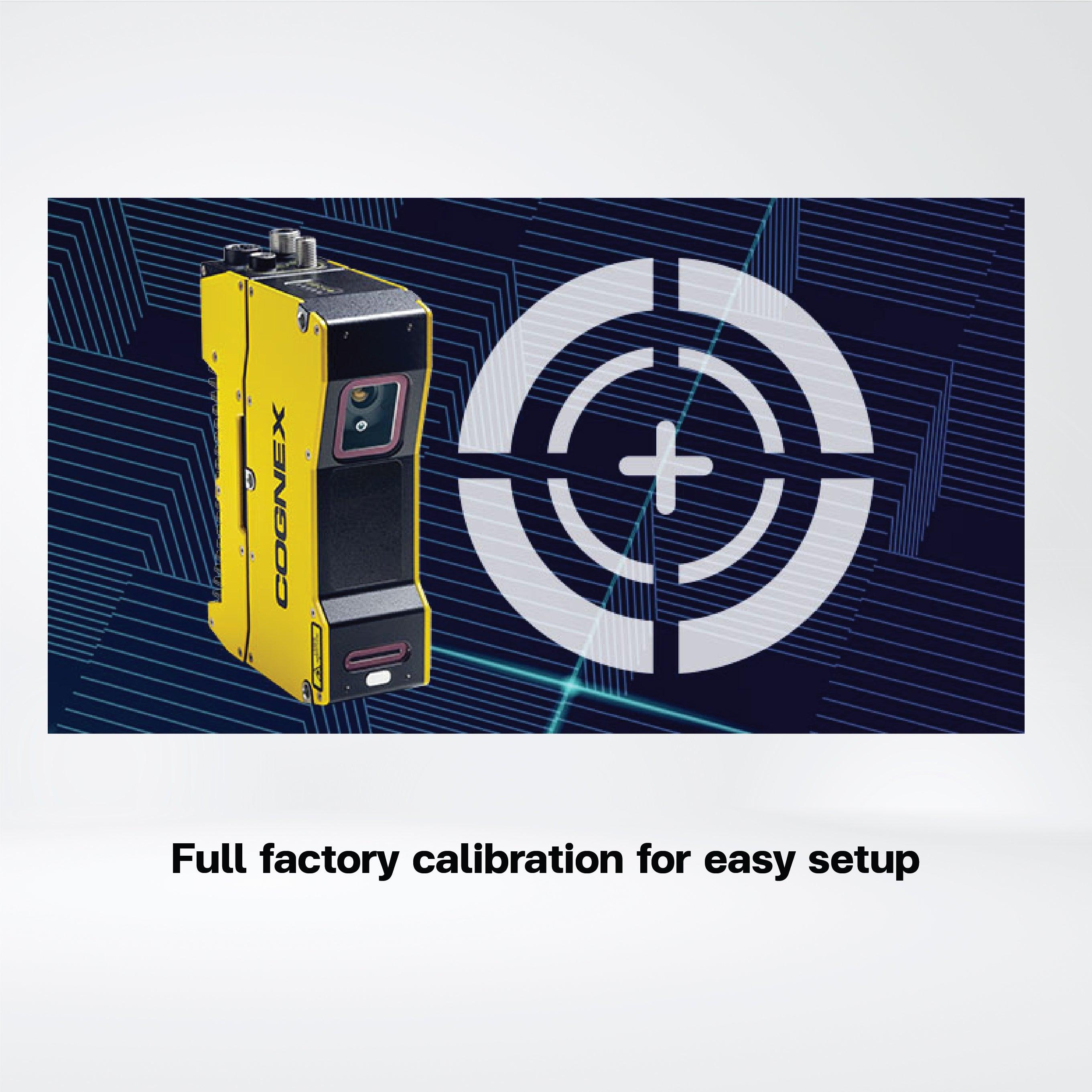

• Full factory calibration to simplify deployment

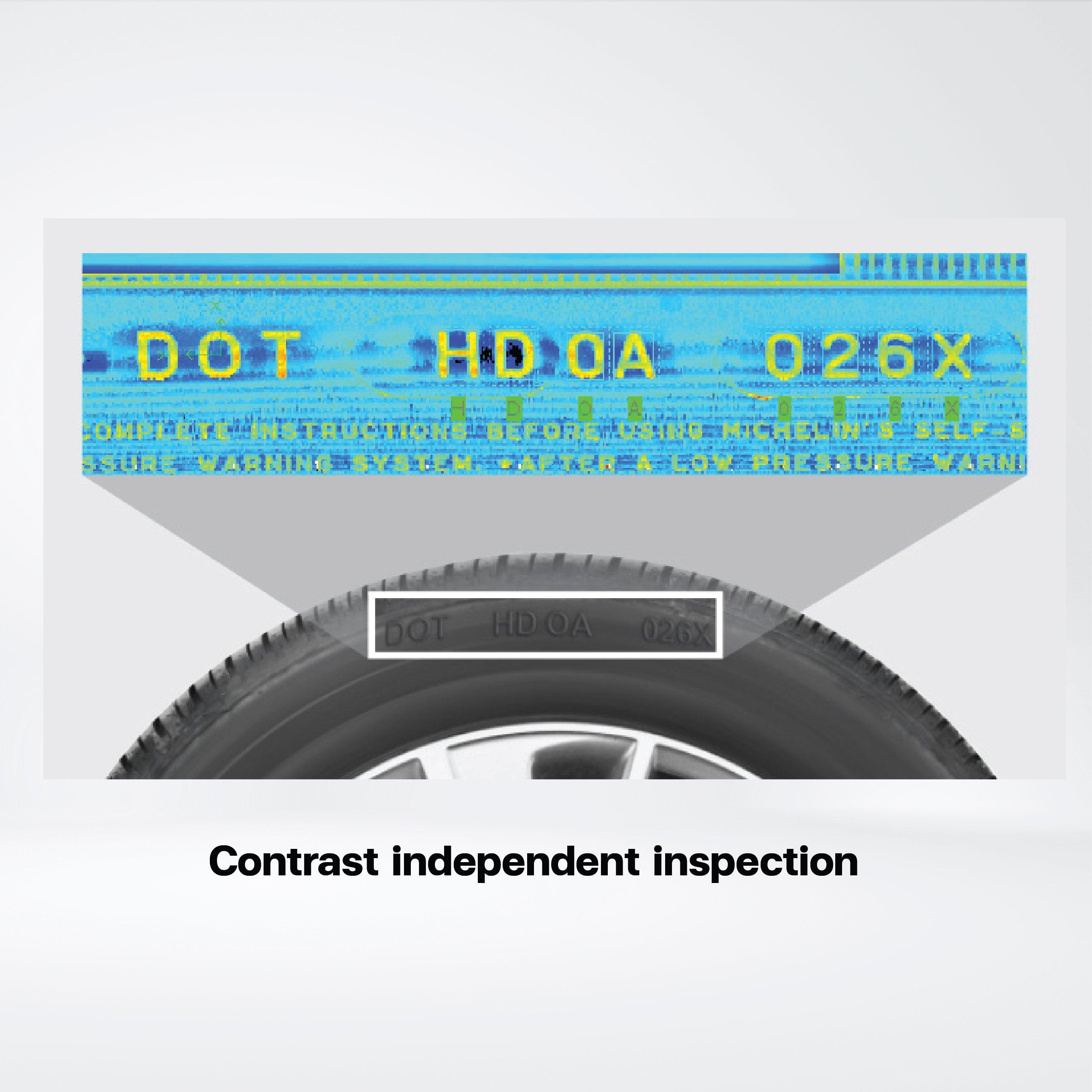

• Contrast independent inspection for higher detection

Features

• Meet any application requirement with an extensive range of sensor options and the ability to combine 3D and 2D cameras

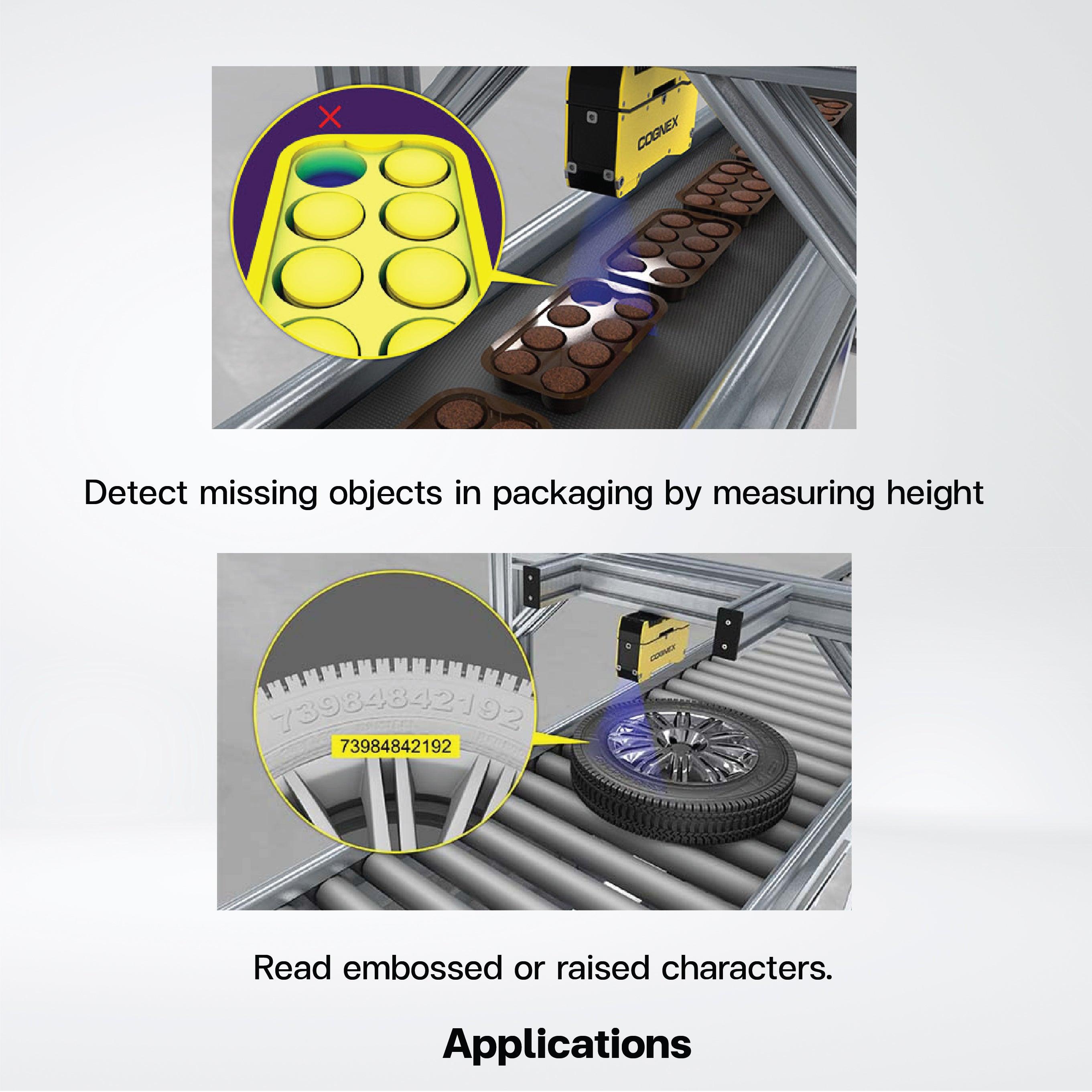

• Quickly deploy inspection, OCR, and presence/absence applications with intuitive software
• Connect up to four 3D displacement sensors for centralized management

• Achieve micron-level accuracy

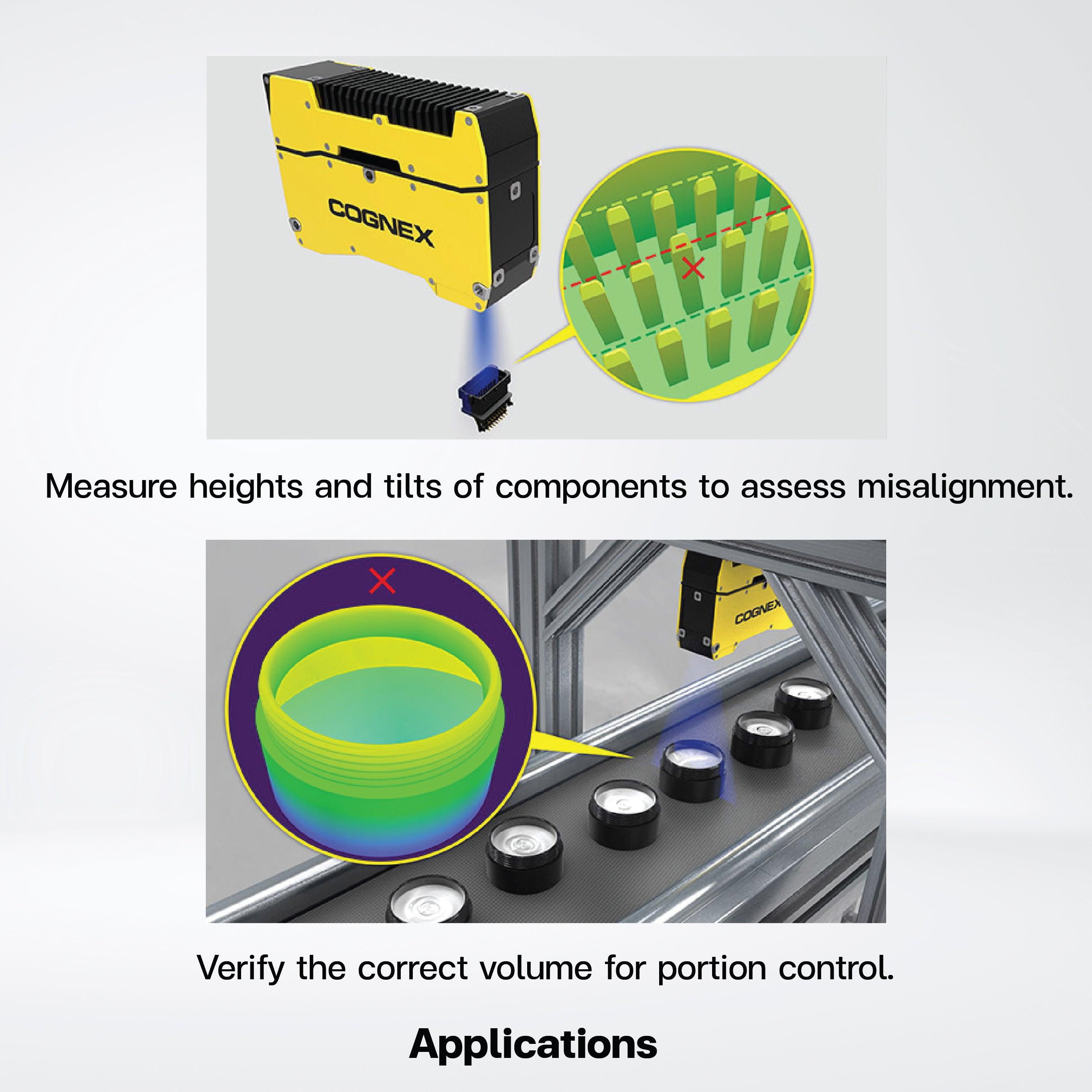

• Prevent misalignment and motion errors
• Generate measurements in real-world units
• Establish consistency across production lines
• Achieve higher resolution and accommodate wider fields of view
• Simplify multi-head analysis with 3D image stitching

• Detect objects on challenging backgrounds, including reflective surfaces and dark parts against dark surfaces
• Generate intensity data of different regions concurrently
• Enhance texture of 3D visualizations for more accurate inspections
• Solve a wide range of vision tasks with height, volume, plane-fitting, and tilt tools

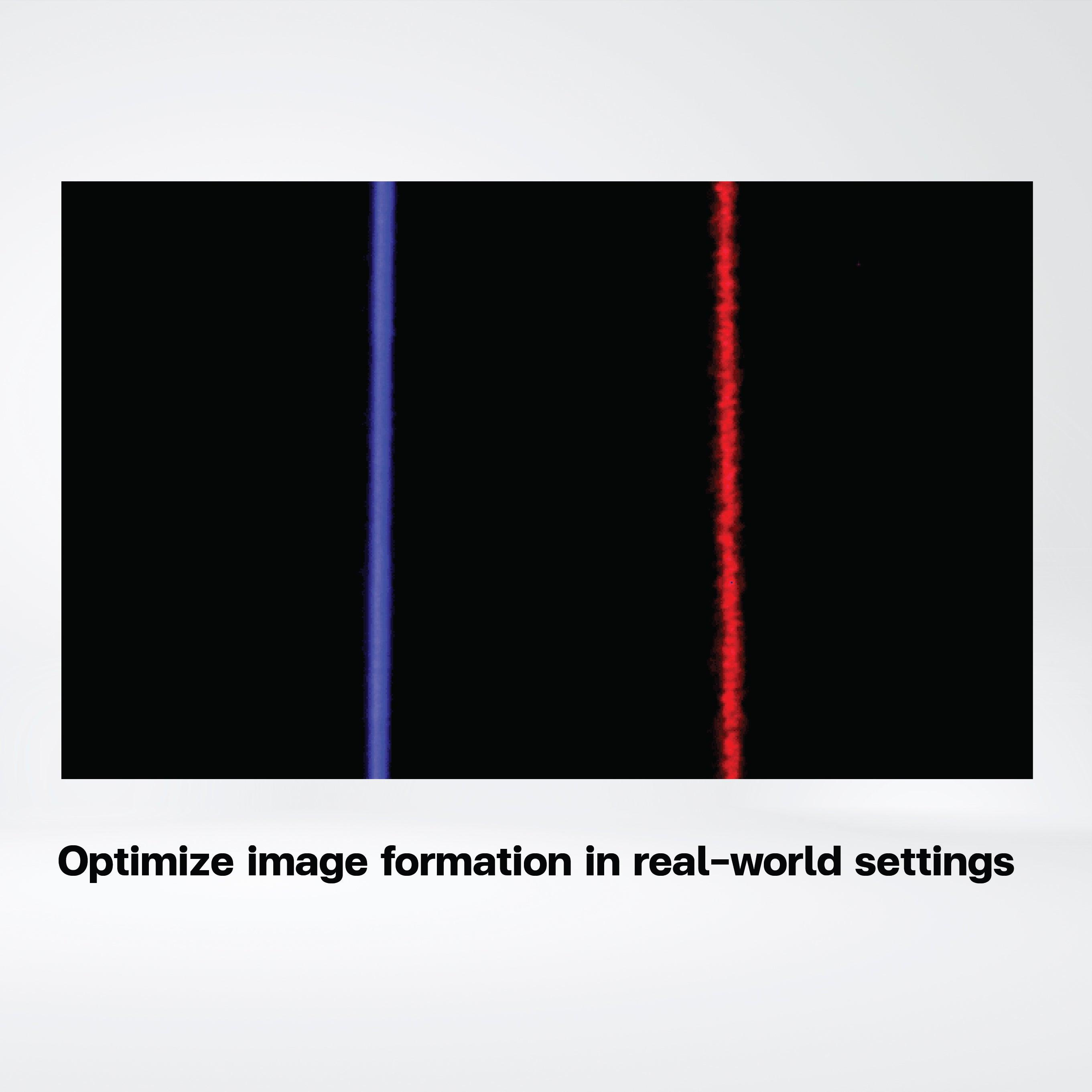

The 3D-L4000 with VisionPro includes patented, speckle-free blue laser optics that enable the system to capture higher quality images than traditional laser displacement sensors. This type of laser optics minimizes speckle and glare, common problems for 3D laser systems.
