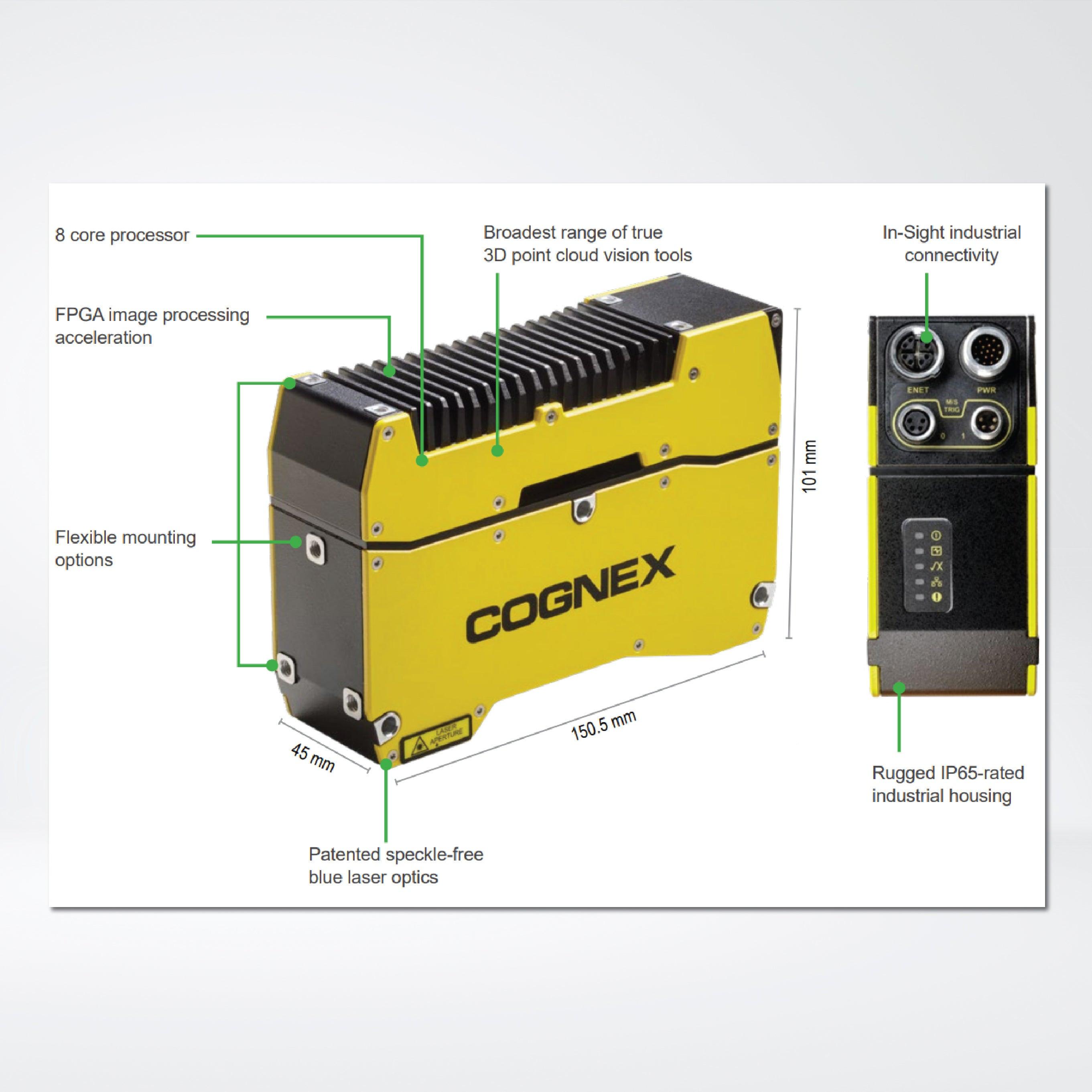

In-Sight 3D-L4000 , All-in-one vision system solves 3D applications as easily as 2D vision

The In-Sight 3D-L4000 is a breakthrough in three-dimensional (3D) vision technology. This unique vision system combines 3D laser displacement technology with a smart camera allowing factory engineers to quickly, accurately, and cost effectively solve a wide variety of inspections.

The patented speckle-free blue laser optics, an industry first, acquires high quality 3D images and on-board high-performance processing powers a comprehensive set of true 3D vision tools, without the need for external processing. 3D vision tools are set up as easily as 2D vision tools thanks to the familiar and robust In-Sight spreadsheet environment.

Features

• High performance 2K resolution 3D smart camera
• Broad suite of true 3D vision tools
• Speckle-free blue laser optics
• In-Sight spreadsheet-based setup

The 3D-L4000 series’ patented, speckle-free blue laser optical system (left) enables the vision system to capture higher quality images than traditional laser displacement sensors (right).

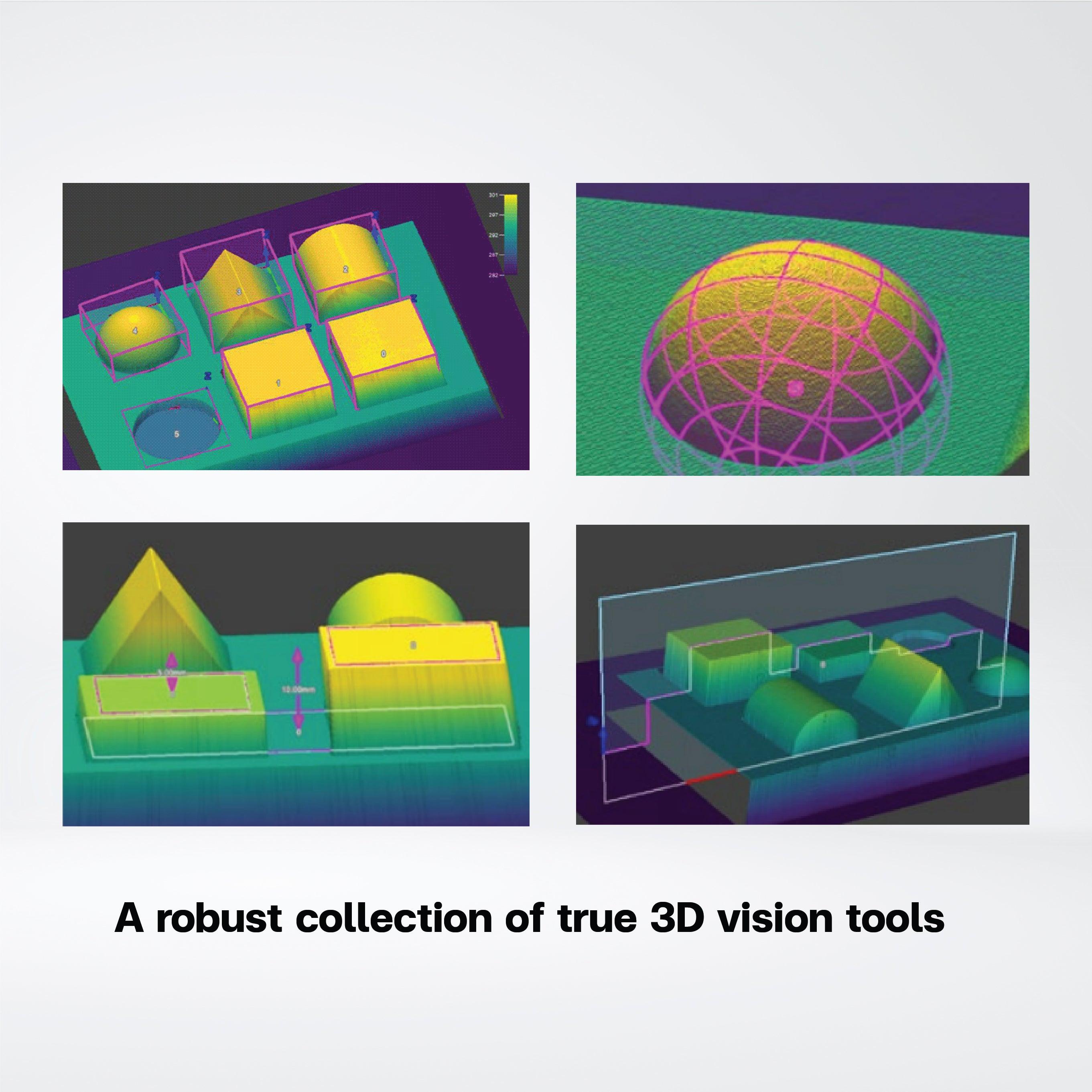

The In-Sight 3D-L4000 allows users to place vision tools directly on a true 3D image of the part

The 3D-L4000 includes all the traditional 3D measurement tools users expect such as plane and height finding.

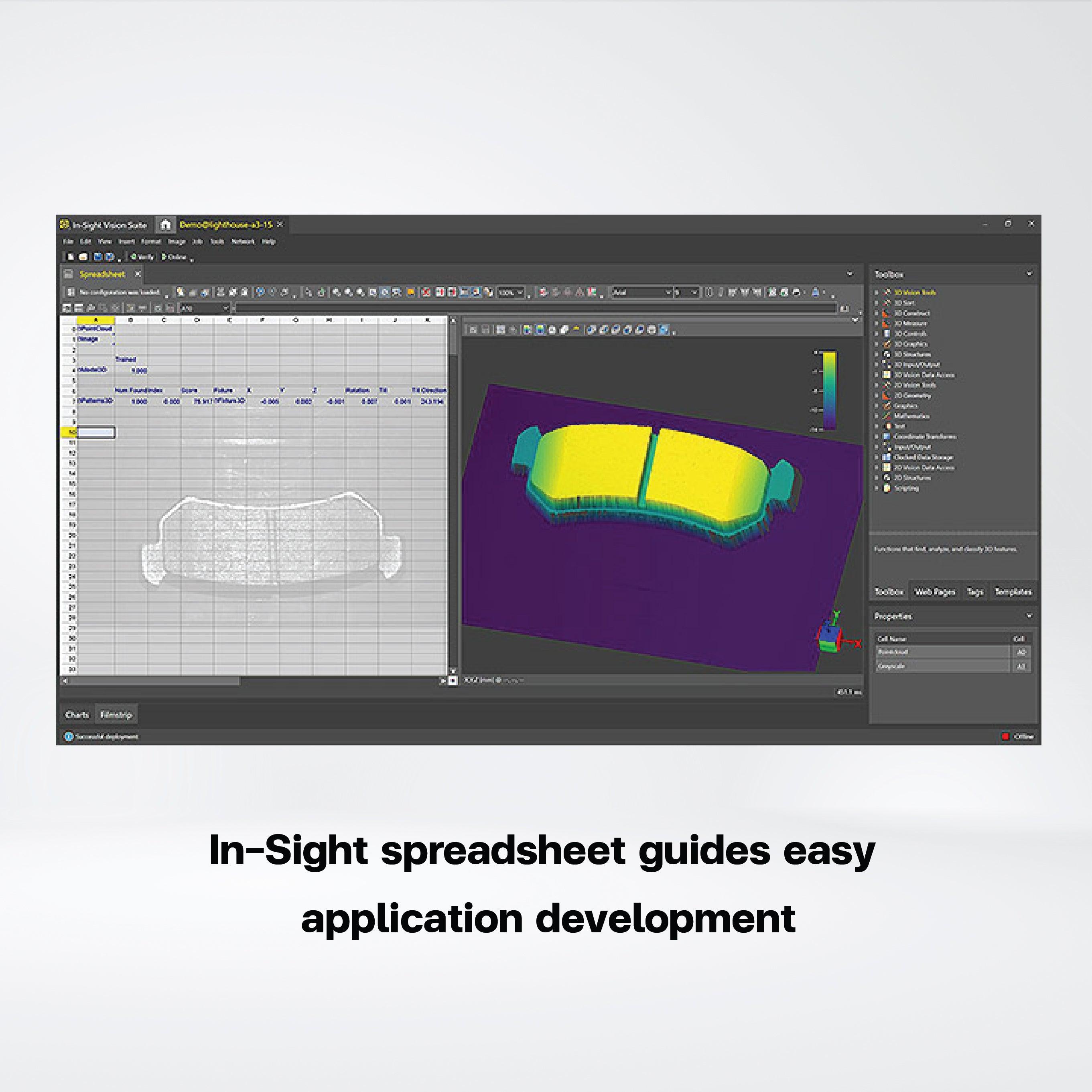

The intuitive In-Sight spreadsheet interface quickly and easily sets up and runs 3D applications without the need for programming.
