EX-LYNX-WP-TX US Wall Plate - LYNX Series

Lynx is a maximum value extension solution for high resolution 4K graphics requiring smooth video playback and audio de-embedding at a value price point.

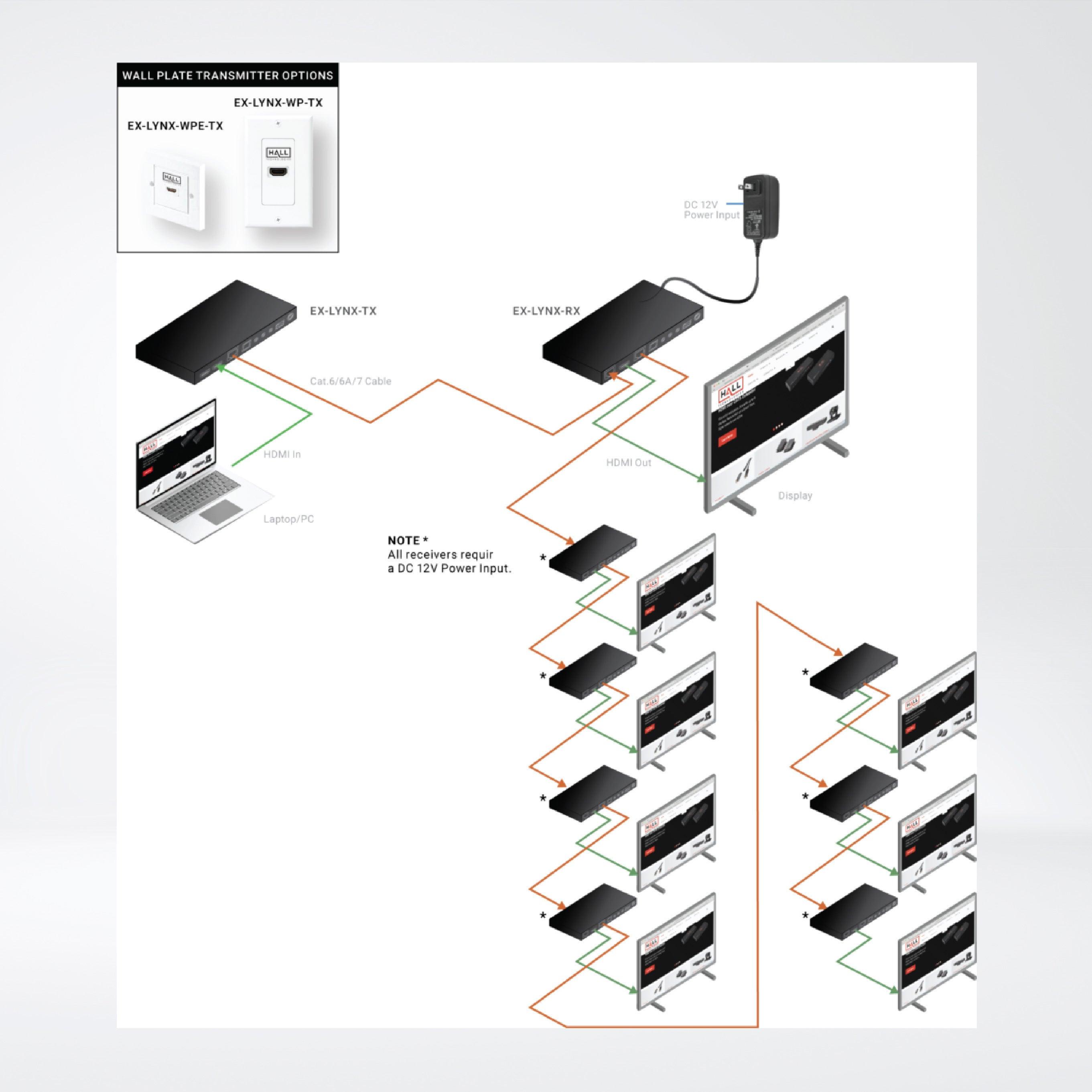

Cascade up to 8 receivers to scale functionality and maximize distribution distance.

Ideal Applications: K-12 & Higher Ed, meeting spaces of all sizes, hospitality, and digital signage applications for up to 8 displays.

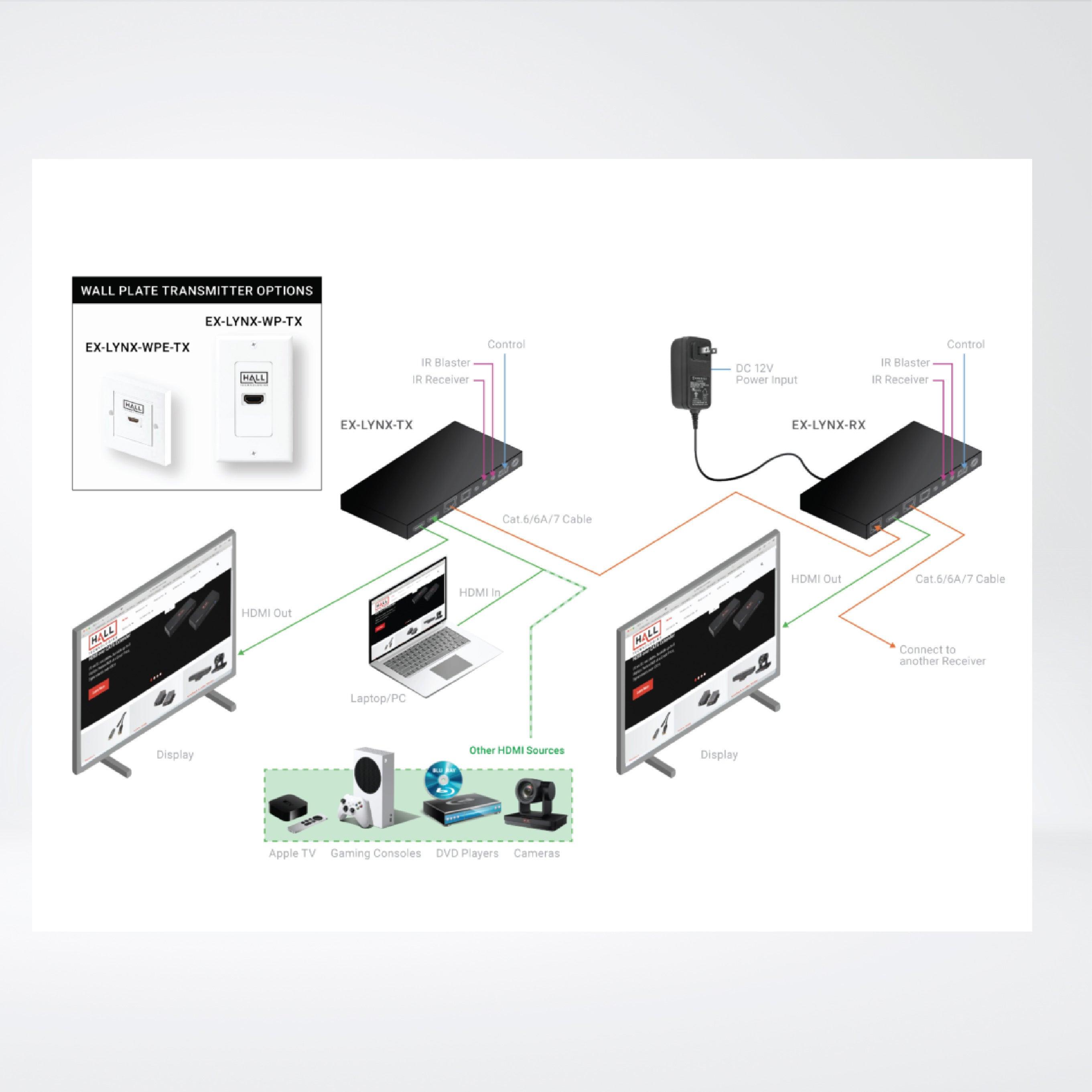

The LYNX Series features extension of Ultra HD resolution, 4K2K@60Hz video signals with audio and control up to 60m (197ft) over a single category cable. Both the LYNX-TX and the LYNX-RX include local audio de-embedding via a 3.5mm stereo output. The LYNX-TX transmitter includes an HDMI Local Loop output to allow for monitoring and playback status of the local video source. Additionally, the LYNX-RX receiver includes an RJ45 Loop Output to allow up to eight receivers to be cascaded to create a larger distribution solution and/or to enable greater distribution distance. LYNX also supports bi-directional control pass-through for source and display control, and ships with a pair of infrared emitters.

Features

• HDMI 2.0
• Supports Cat5e, CAT 6, CAT 6A, CAT 7, CAT 8 network cable
• 18 Gbps video bandwidth
• Supports 4K2K/60 Hz, 4:4:4
• HDCP 2.2 / 1.4
• Maximum transmission distance: 60 m
• PoC (Power over Cable)
• Automatic EDID detection
• HDR support
• HDMI loop-out / output – Connection of local monitor to the source device
