ECAT-2052-NPN EtherCAT Slave I/O Module with Isolated 8-ch DI and 8-ch DO

• On the fly processing: EtherCAT
• Powerful MCU handles efficient network traffic
• 2 x RJ-45 bus interface
• Distance between Stations up to 100 m (100BASE-TX)

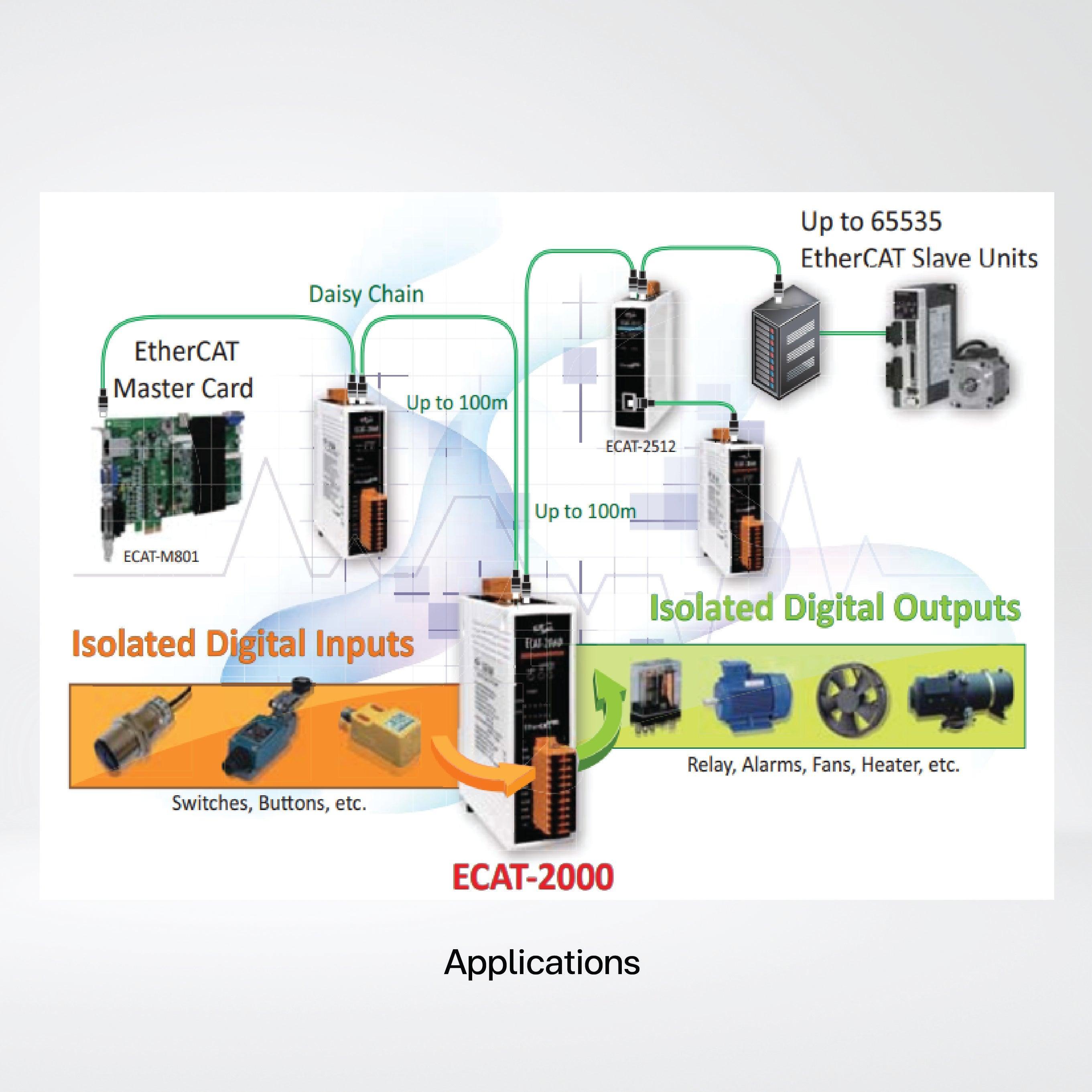

• Support daisy chain connection
• EtherCAT conformance test tool verified

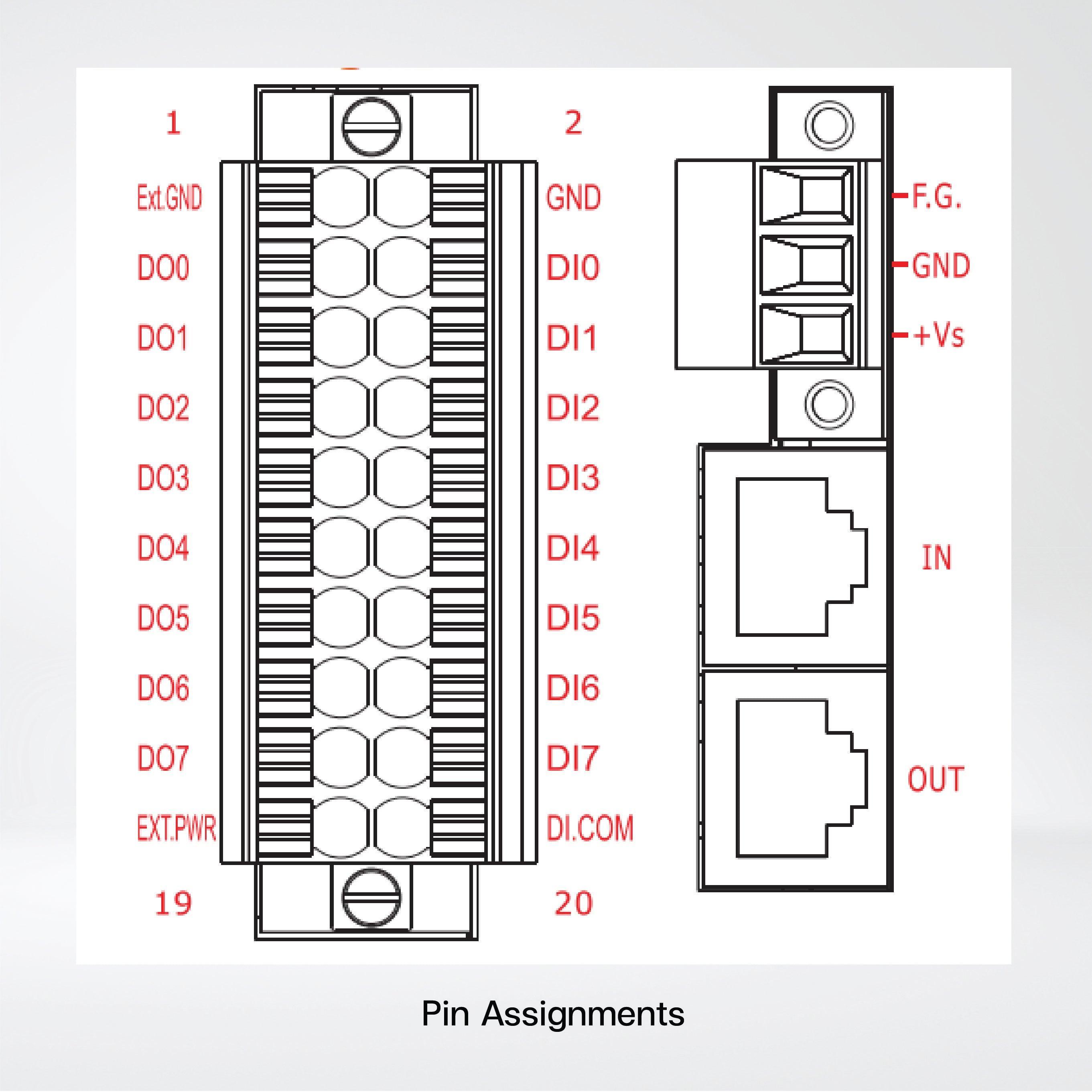

• Removable terminal block connector
• LED indicators for the I/O status
• Built-In digital I/O: 8 DI and 8 DO
• RoHS compliant
• ESD Protection 4 KV Contact for each channel
