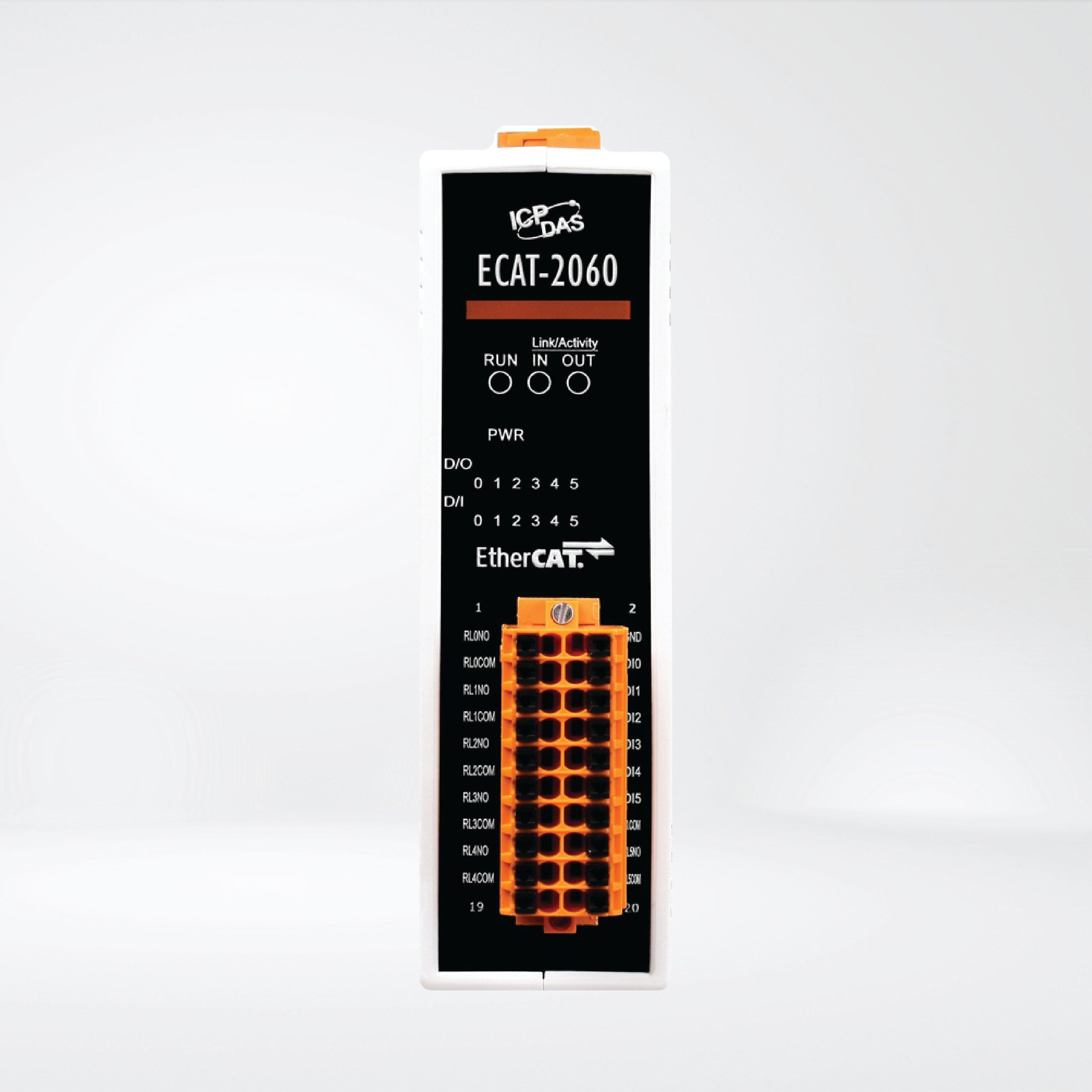

ECAT-2060 EtherCAT Slave I/O Module with Isolated 6-ch DI and 6-ch Relay

Save 1,982.50 ฿
ICP DASSKU: ECAT-2060
No reviews
Price:
5,947.50 ฿ 7,930.00 ฿

Shipping calculated at checkout

Stock:
Re-stocking soon

Description

Features

• On the fly processing: EtherCAT
• Powerful MCU handles efficient network traffic
• 2 x RJ-45 bus interface
• Distance between Stations up to 100 m (100BASE-TX)

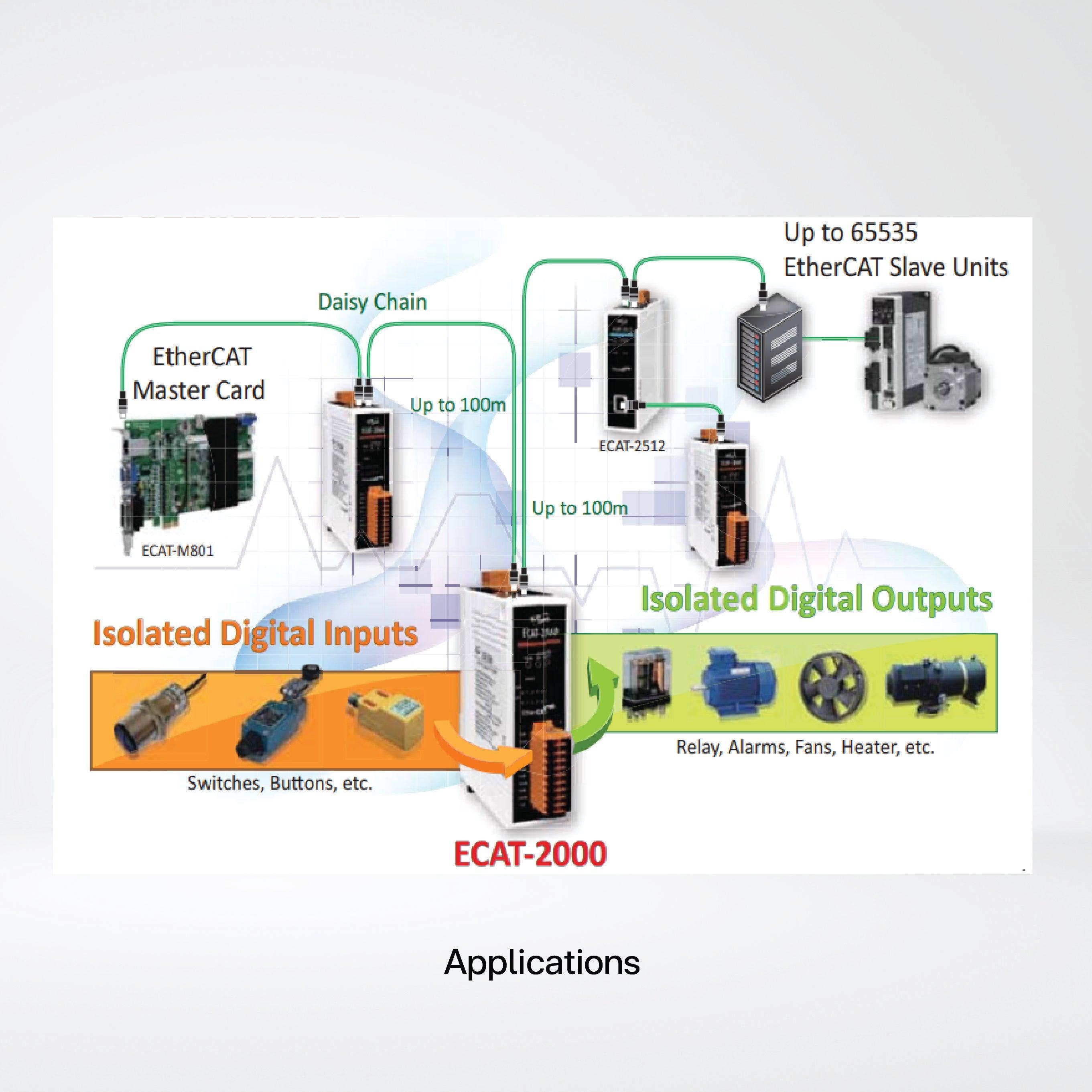

• Support daisy chain connection
• EtherCAT conformance test tool verified

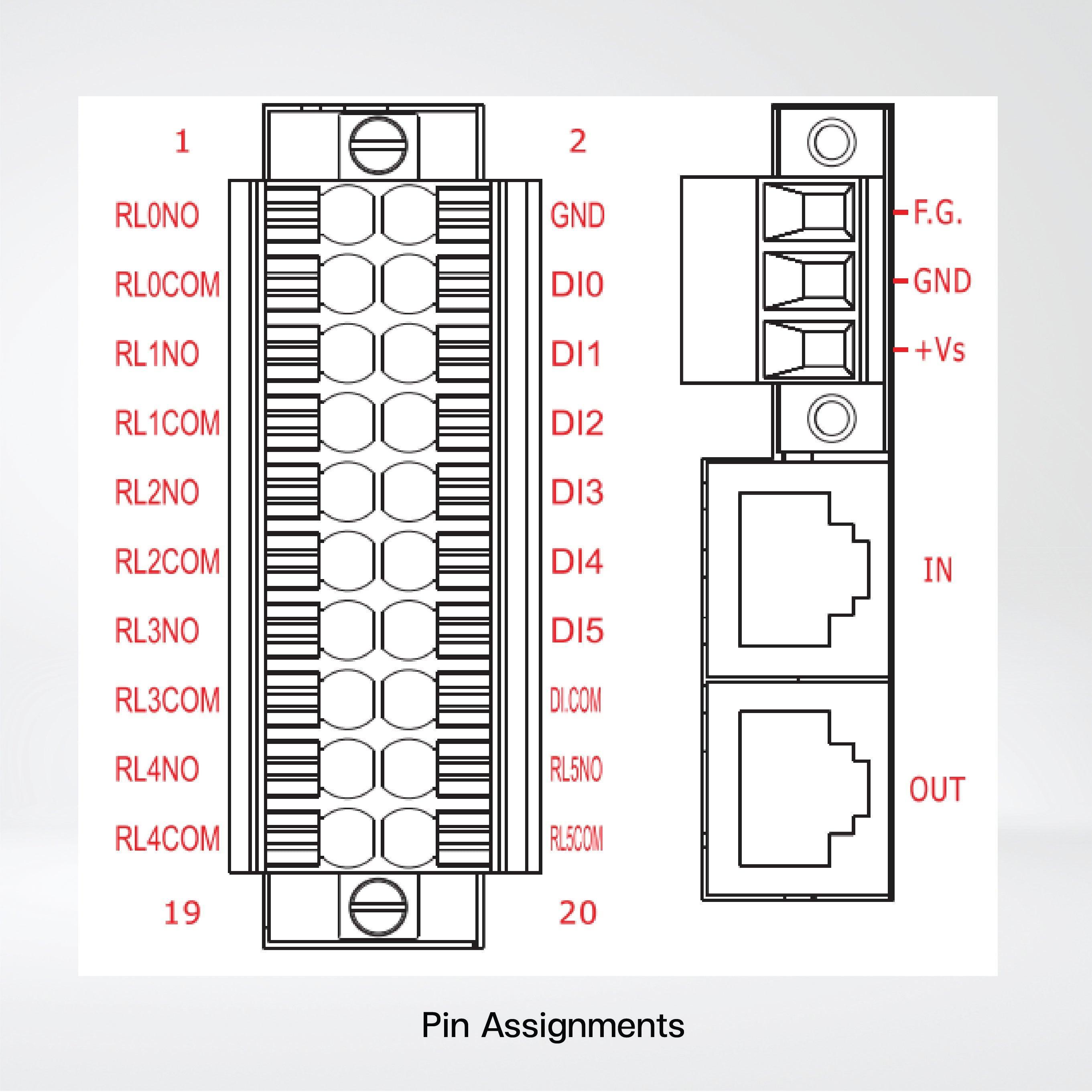

• Removable terminal block connector
• LED indicators for the I/O status
• Built-In digital I/O: 6 DI and 6 Relay DO
• RoHS compliant

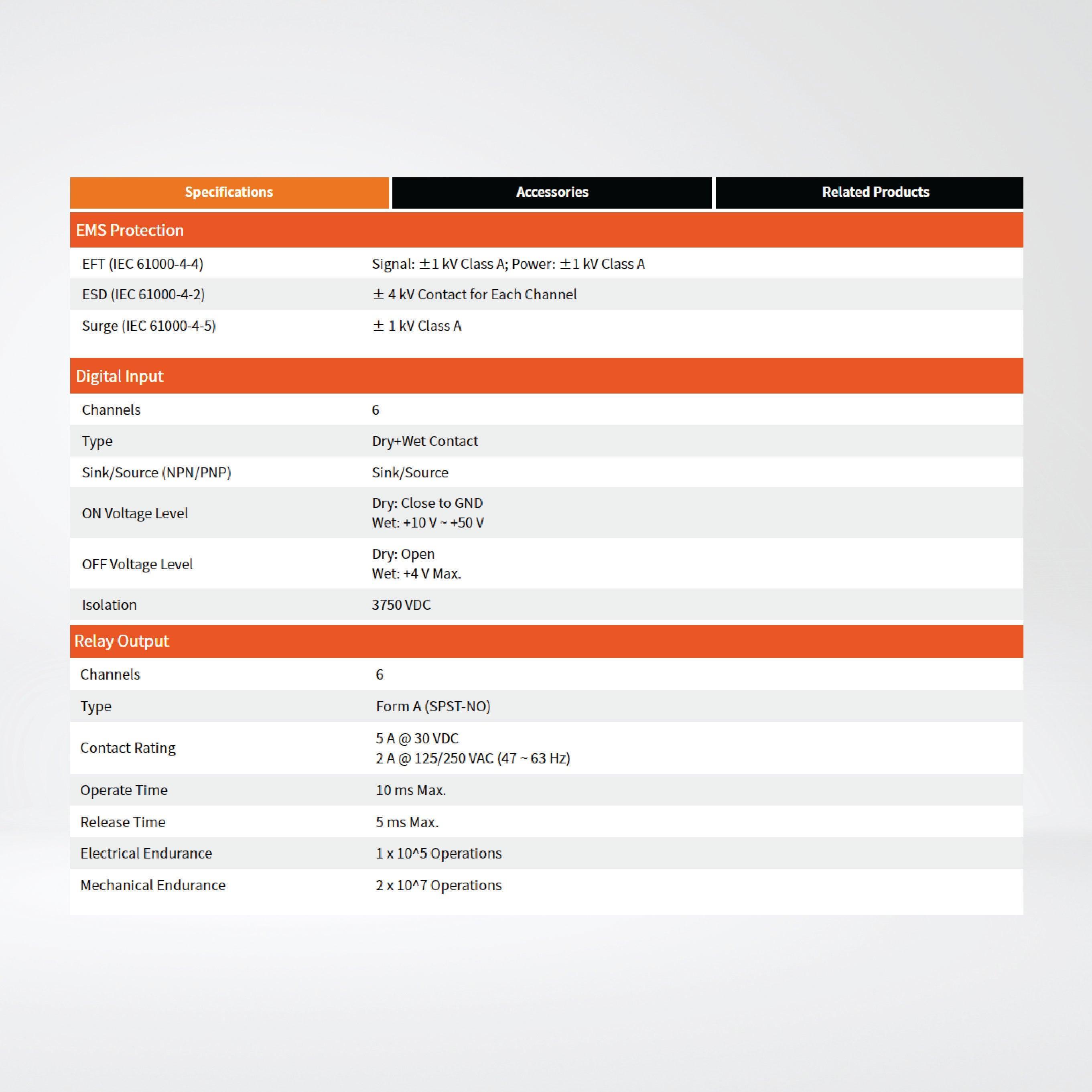

• ESD Protection 4 KV Contact for each channel

Term and Condition

ส่งสินค้า : By Order 4-6 สัปดาห์
รับประกันสินค้า : 1 Year

Download

Datasheet
Download
