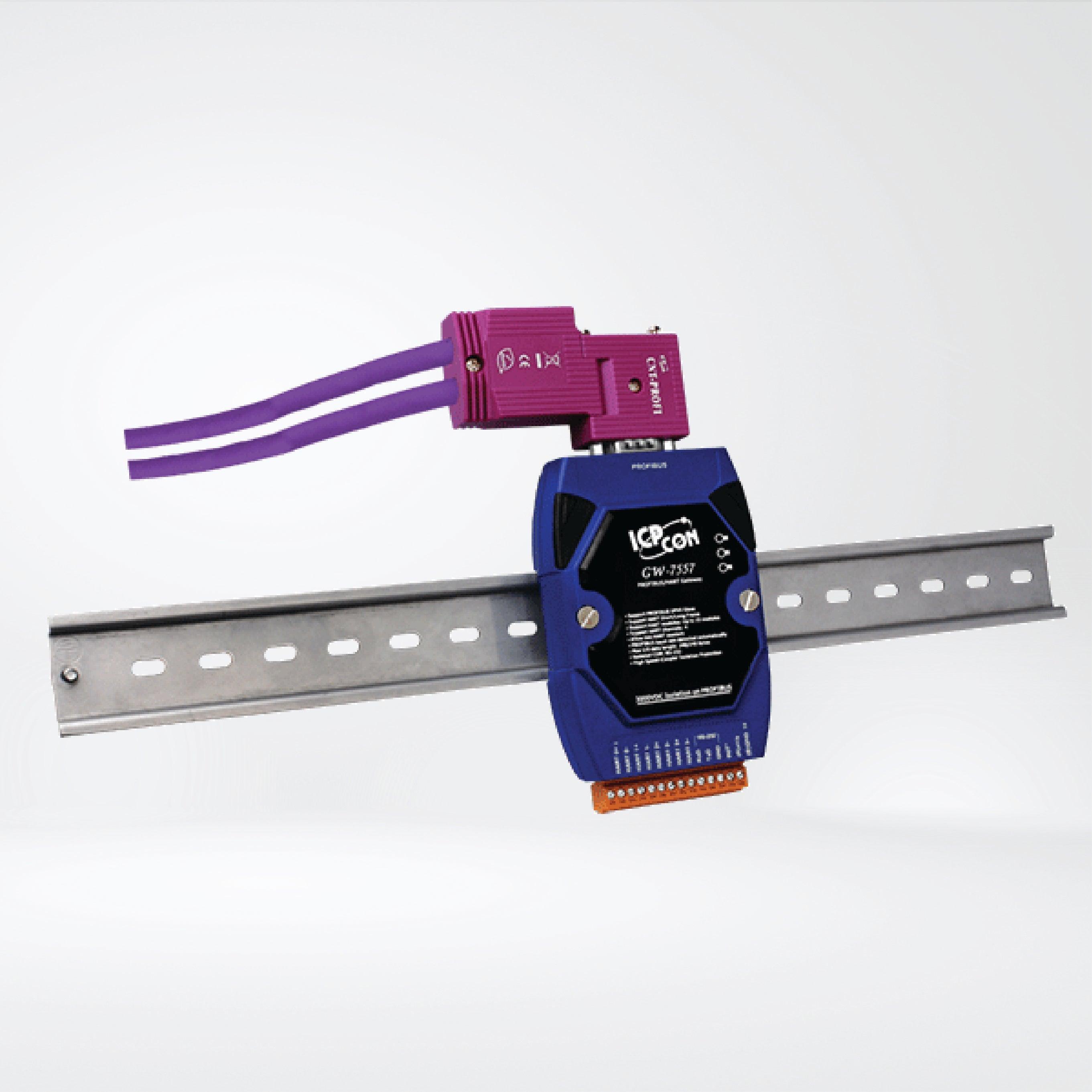

GW-7557-B PROFIBUS to HART Gateway

Features

- Protocol & Hierarchy : DP-V0 Slave
- Transmission Rate Setting : detected automatically
- Max Input Data Length : 240 Bytes
- Max Output Data Length : 240 Bytes
- Address Setting : 0~126 set by DIP switch or EEPROM
- Supports HART Mode : point-to-point / multi-drop
- Support HART Master : Allow two HART Masters
- Support HART Channel : 4 channels
- Support HART Frame : Short/Long frame
- Support HART modules : Connecting up to 15 HART modules
- Support HART Burst mode : YES
- Network Isolation Protection : 2500 Vrms High Speed iCoupler
- DC Isolation Protection : 3000 VDC on PROFIBUS side
