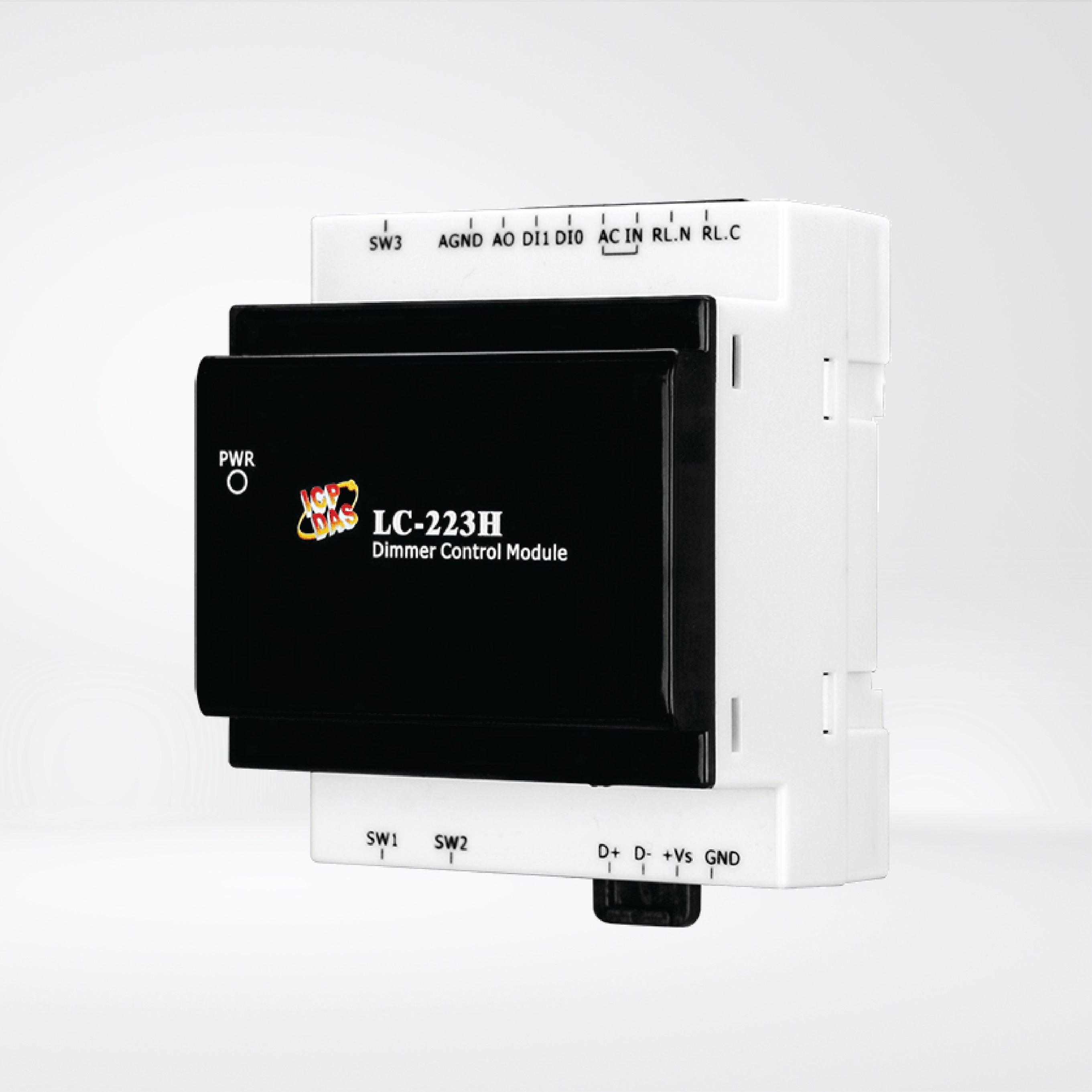

LC-223H 1-channel Dimmer Control Module

Features

- Isolated Analog Output (0 to 20 mA, 0 to 10 V, 1 to 10 V) For Dimming Control
- Relay Operation Current: 16 A (Res. Load)
- Support Lighting Module (Max.):
- Incandescent Lamp: 40W/ 220VAC * 8 Sets
- LED(Electronic ballast): 40W/ 220VAC * 10 Sets

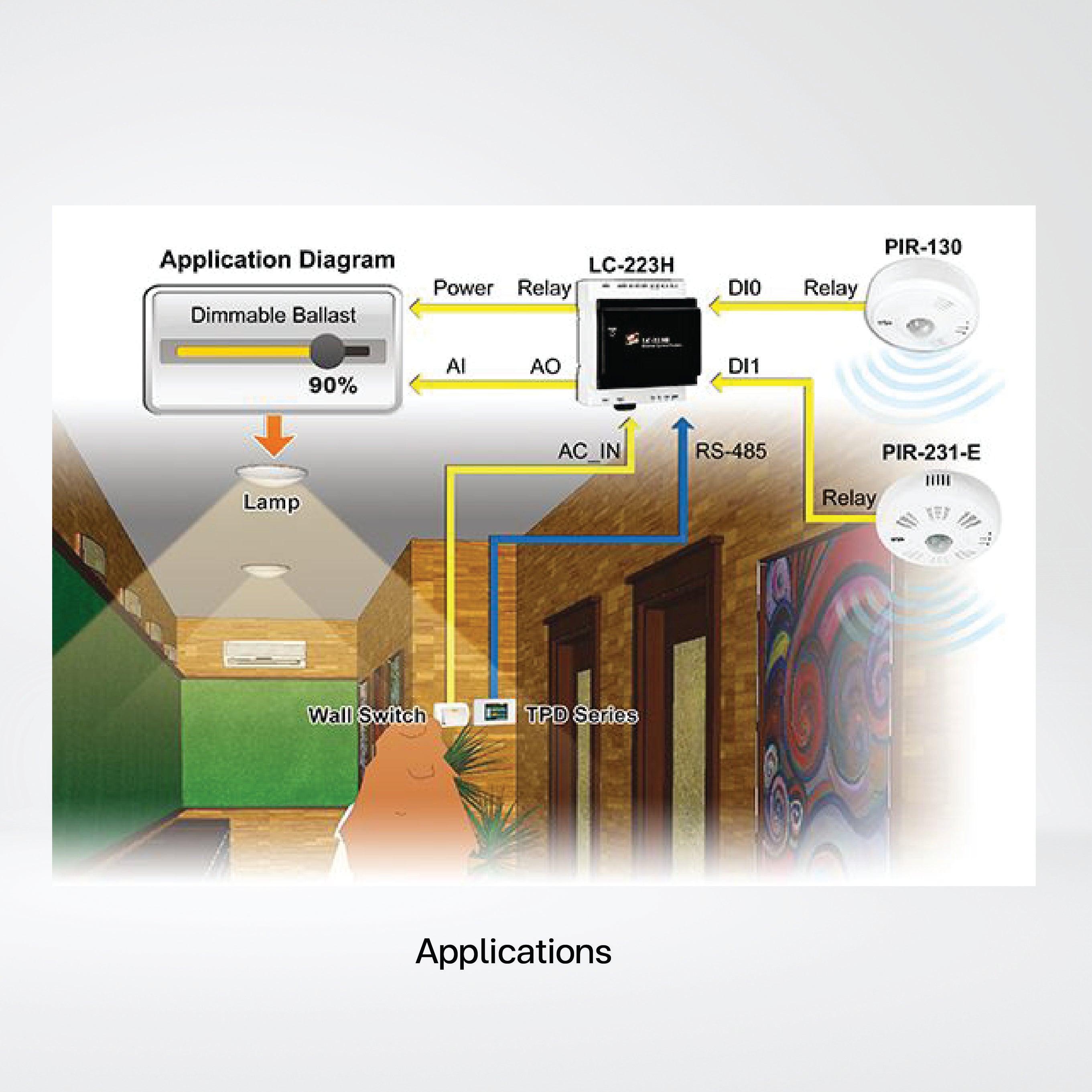

- Provide Power Relay Output to turn ON/OFF the Dimming Ballast
- Isolated Analog Output(0 to 20 mA, 0 to 10 V, 1 to 10 V) for Dimming Control
- Provide the wall Switch function to Control the Brightness of the Dimming Ballast
- Provide The Dry Contact to trigger the Brightness of the Dimming Ballast
- Supports Modbus RTU and DCON Protocols
