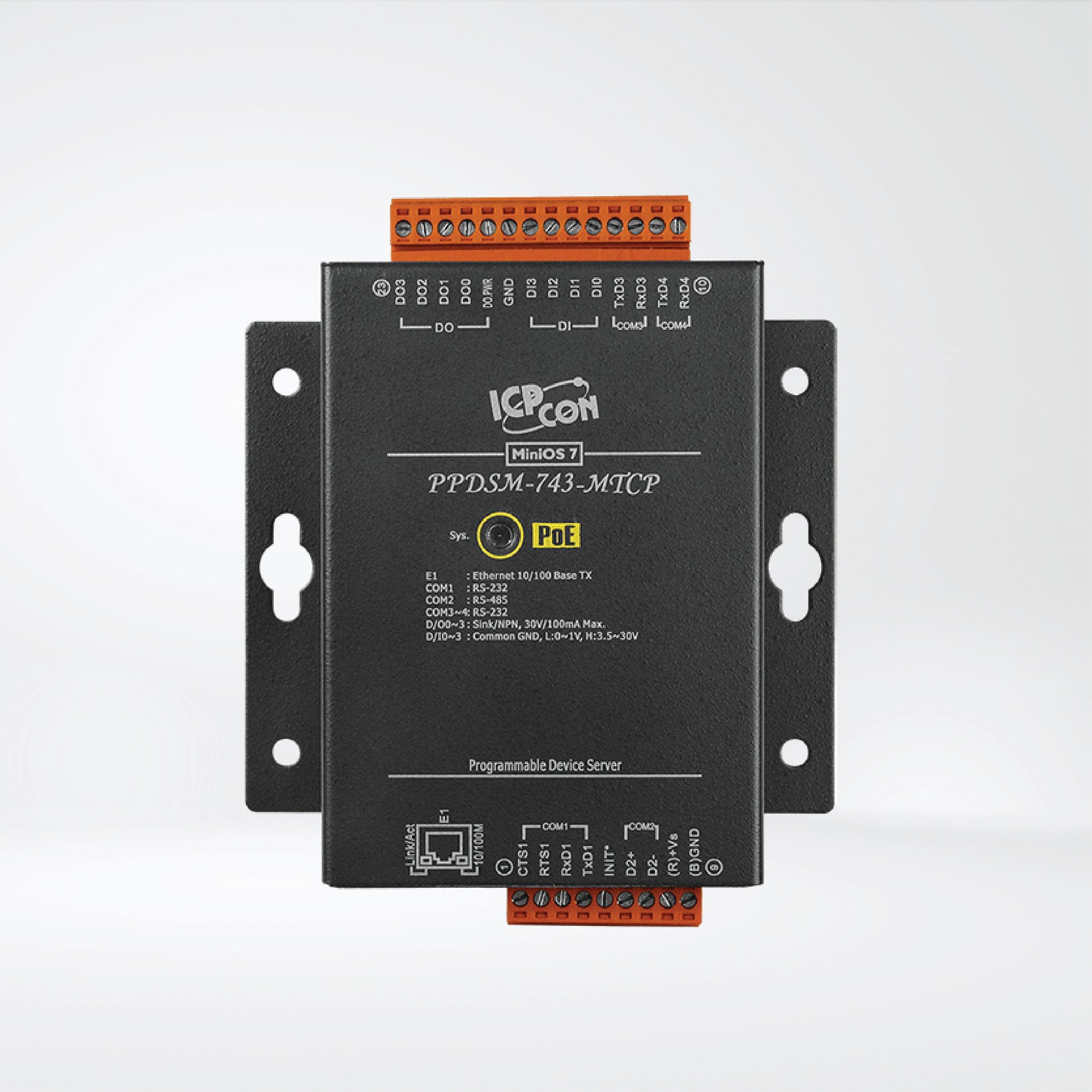

PPDSM-743-MTCP Programmable (3x RS-232 and 1x RS-485) Serial-to-Ethernet Device Server

Features

- Programmable (3x RS-232 and 1x RS-485) Serial-to-Ethernet Device Server with 4x DI, 4x DO, PoE and Modbus Gateway (Metal Case)
- Incorporate Serial Devices in an Ethernet network
- "Virtual COM" Extend COM Ports
- VxComm Utility supports 32/64-bit Windows 7 SP1/10/2012/2016
- Supports Modbus TCP to RTU/ASCII Gateway
- Powerful Programmable Device Server
- Watchdog Timer suitable for use in harsh environments
- Serial Port +/-4 kV ESD Protection Circuit
- Self-Tuner ASIC Controller on the RS-485 Port
- Built-in High Performance MiniOS7 from ICP DAS
- Supports Latched D/I and Counter Functions
- Palm-Sized with multiple Serial Ports
