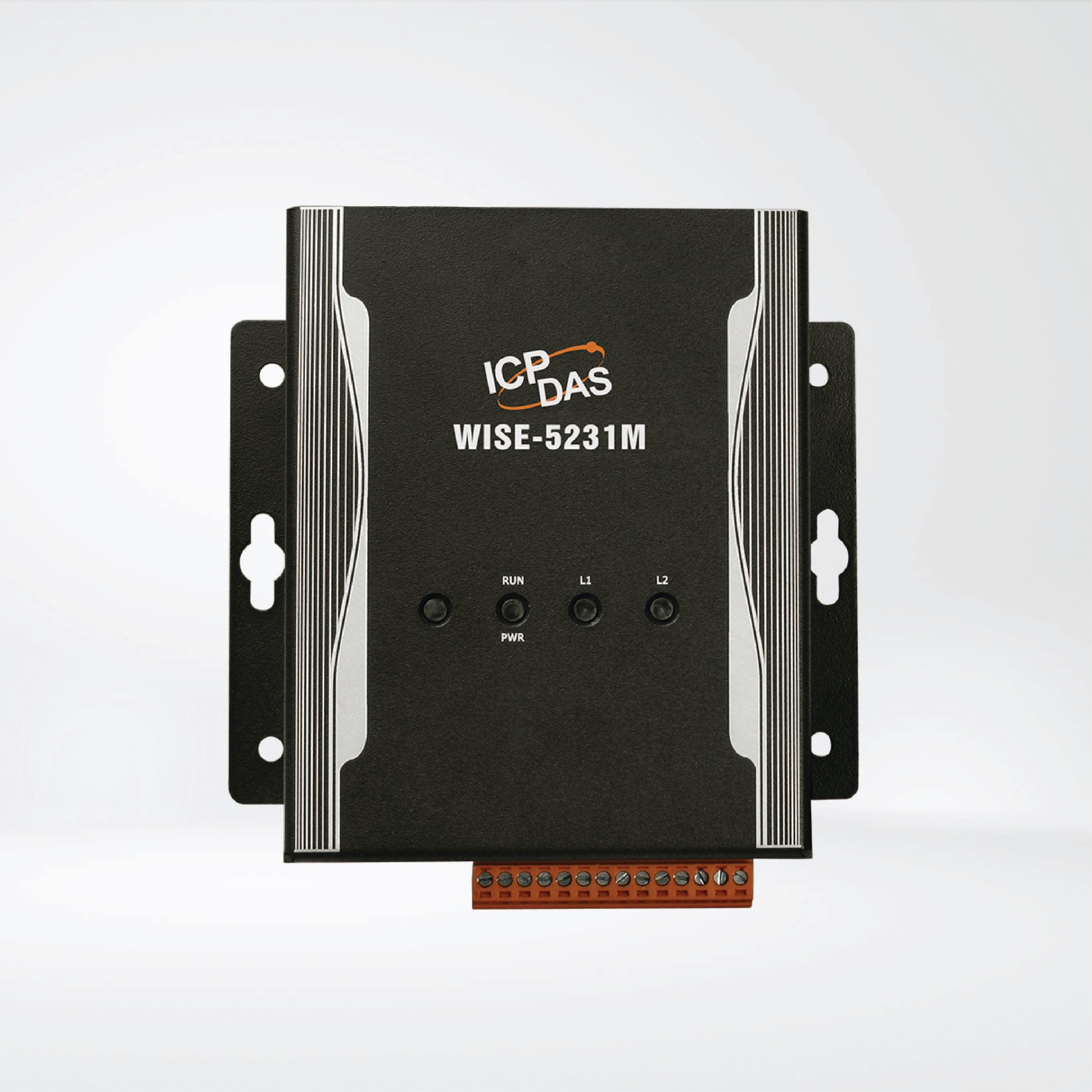

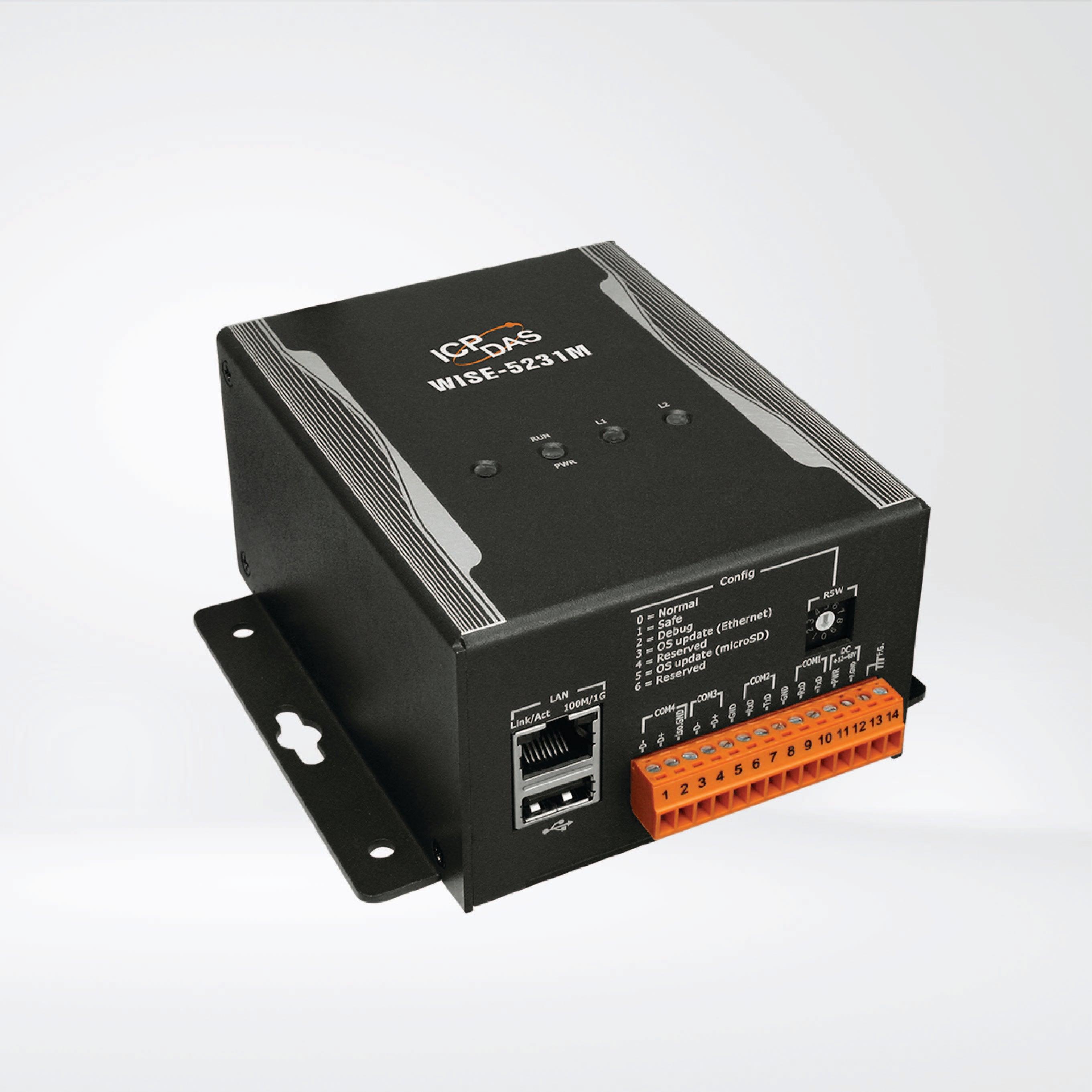

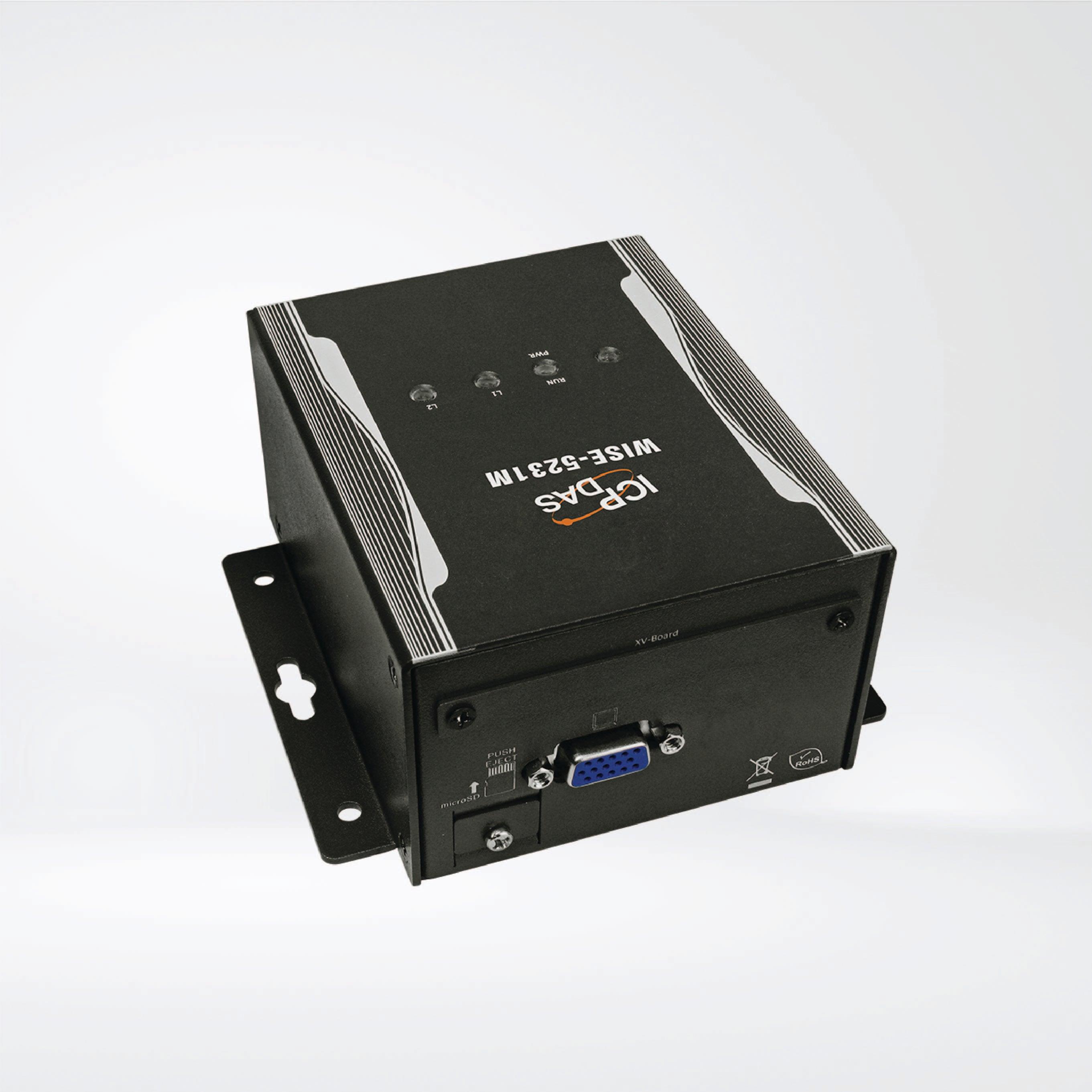

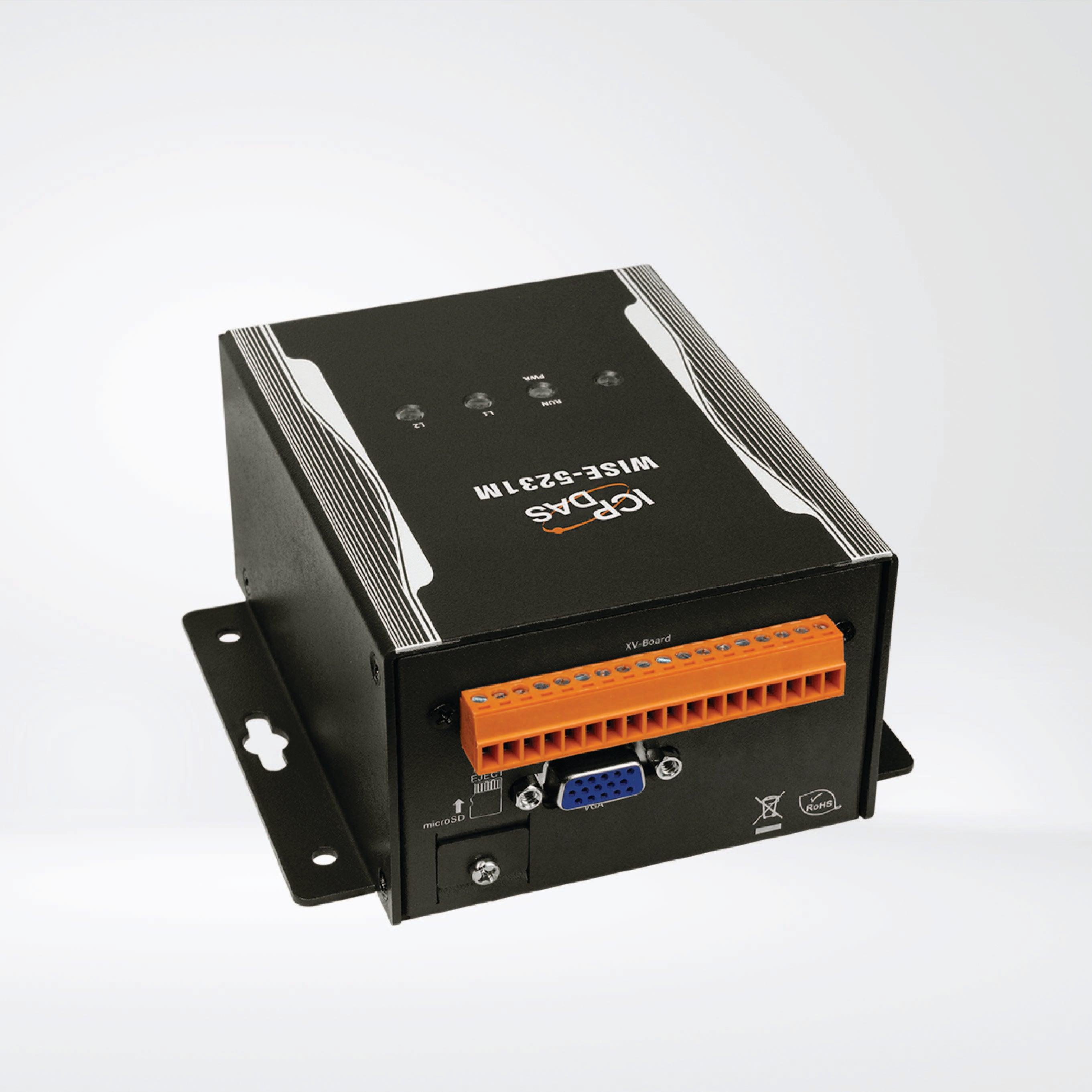

WISE-5231M Intelligent IIoT Edge Controller

Features

- Runs on browsers, no extra software tool is required.
- No more programming, Web pages provided for control logic editing.
- IF-THEN-ELSE logic rules execution ability.
- Support XV-board.
- Support DCON or Modbus RTU Slave modules (Up to 32, COM3 and COM4 can connect to Max. 16 modules individually.).
- Support Modbus TCP Slave modules (Up to 16).
- Timer and Schedule functions supported.
- Data logger and data files send back function supported.
- Active I/O sending function for real-time data transfer.
- CGI Command sending and receiving function supported for IP Camera and Network device.
- Support Modbus TCP/RTU, SNMP, FTP and MQTT protocols.
- Support Connection with IoT Cloud Platform (Microsoft Azure and IBM Bluemix).
- Support IoTstar Cloud Management Software.
