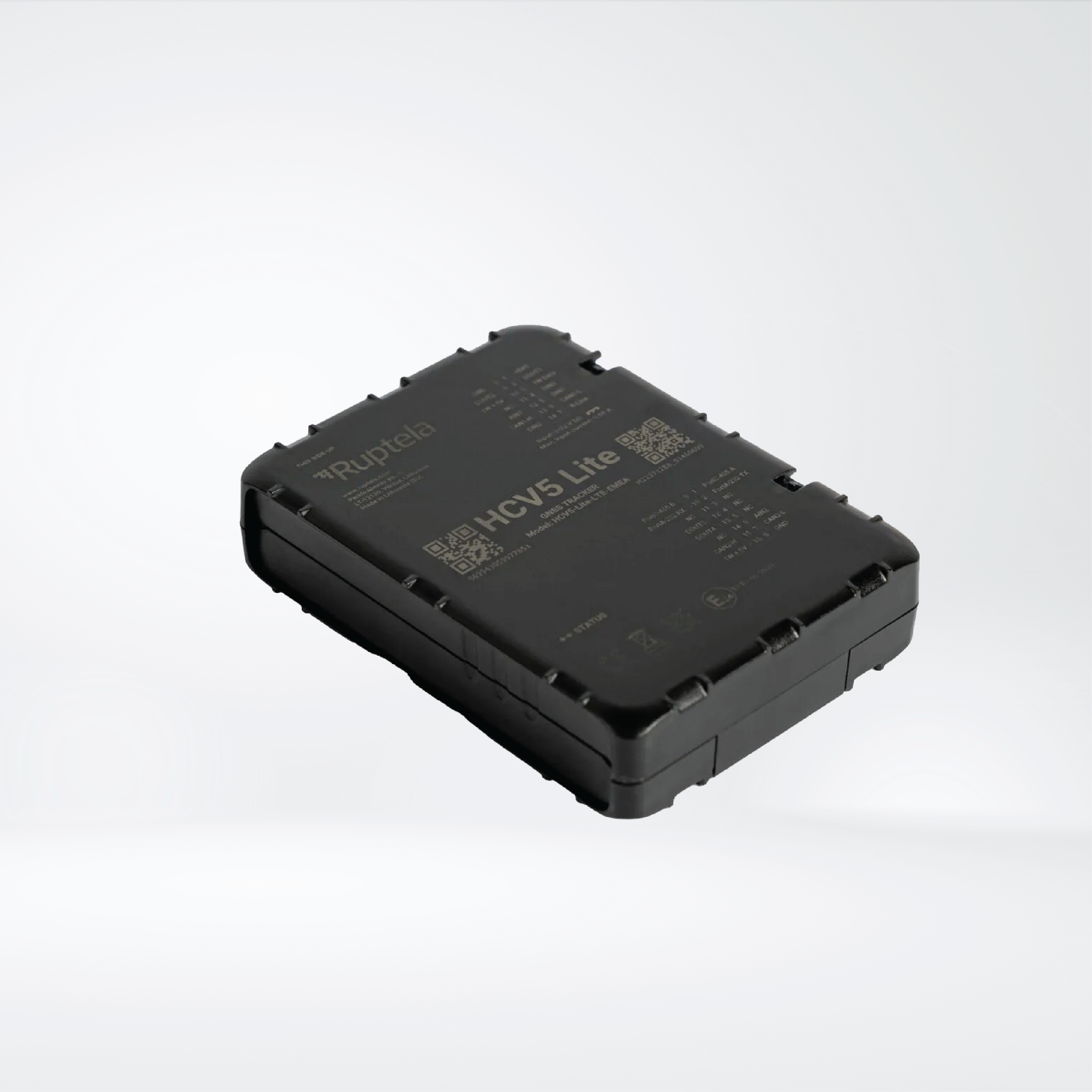

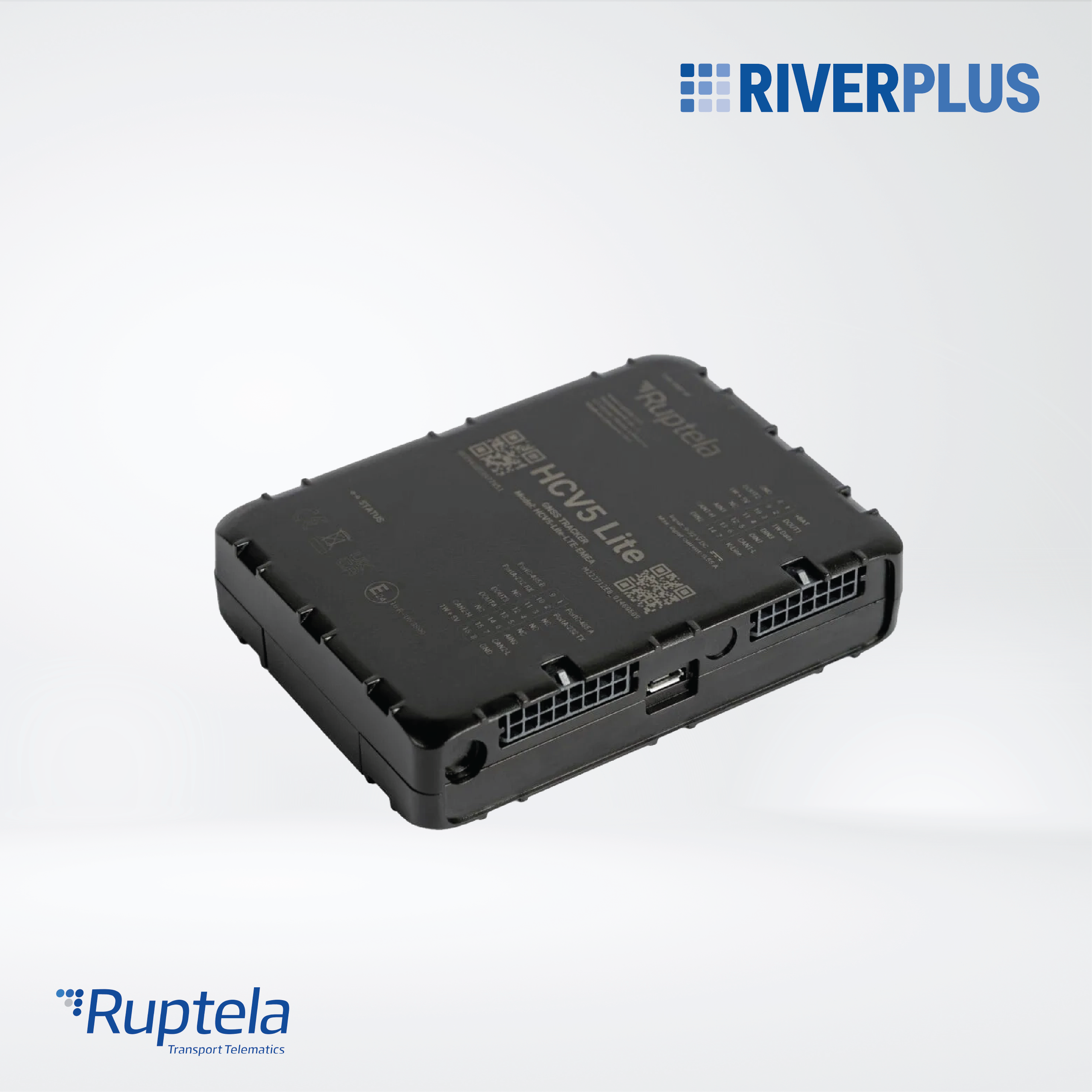

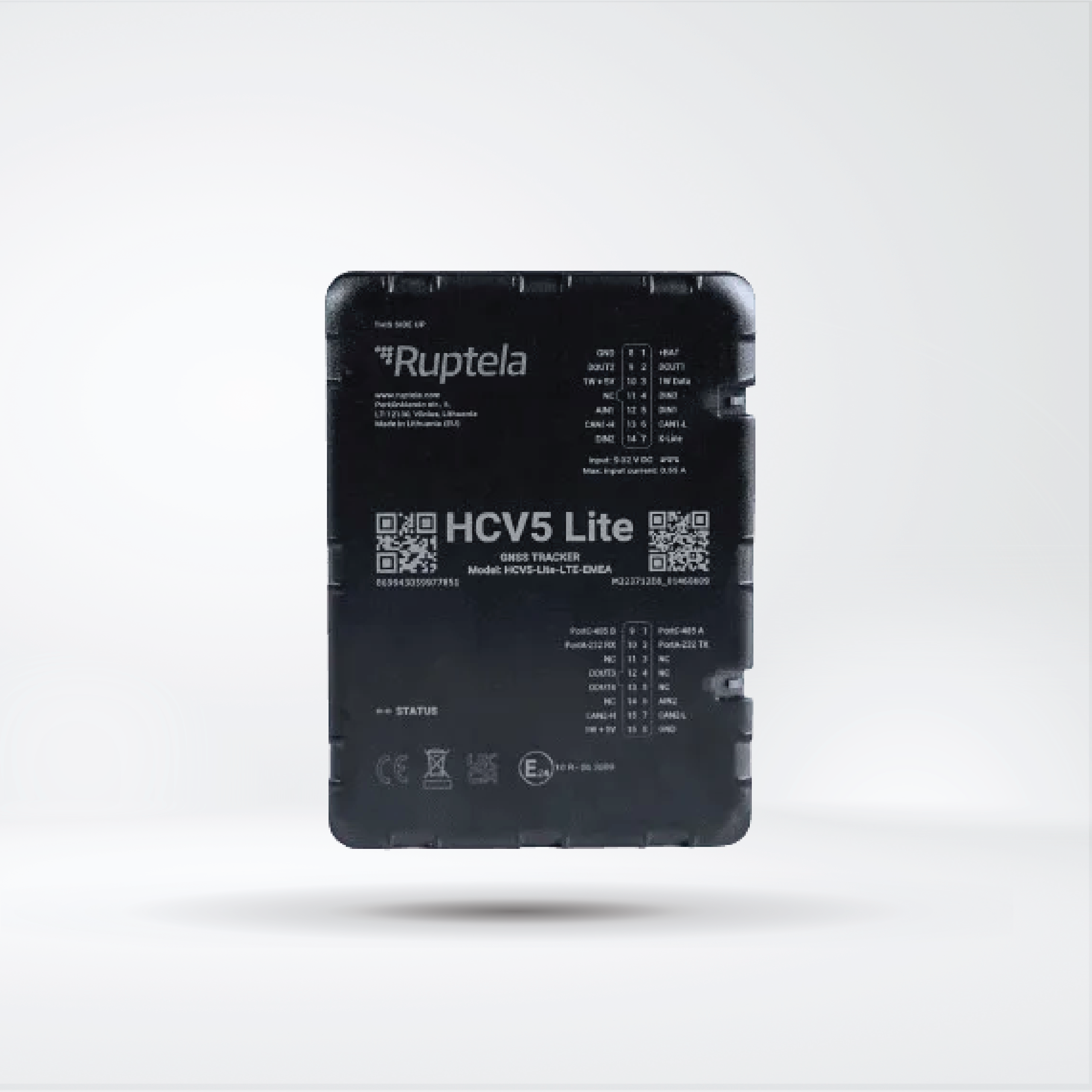

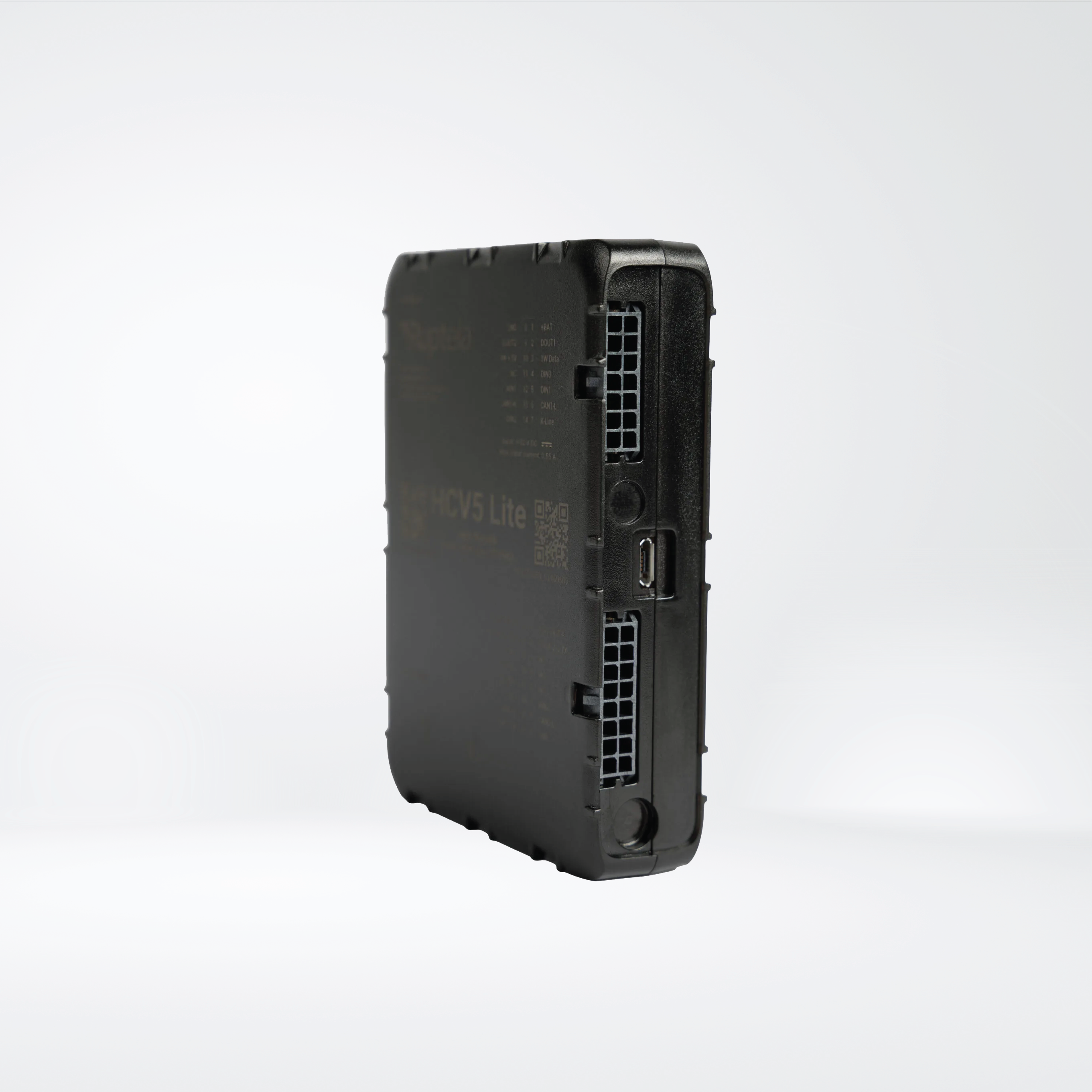

HCV5 Lite Advanced tracker balancing functionality and efficiency for mixed fleets

HCV5 Lite is an advanced GPS tracker for trucks, buses, agriculture, and other specialized machinery. It is designed for vehicle tracking and can perform advanced tasks – read on-board computer data (CAN), monitor driver behavior, remotely download tachograph data, manage fuel, etc. The device is available with the LTE CAT1 bis (4G) network.

Features

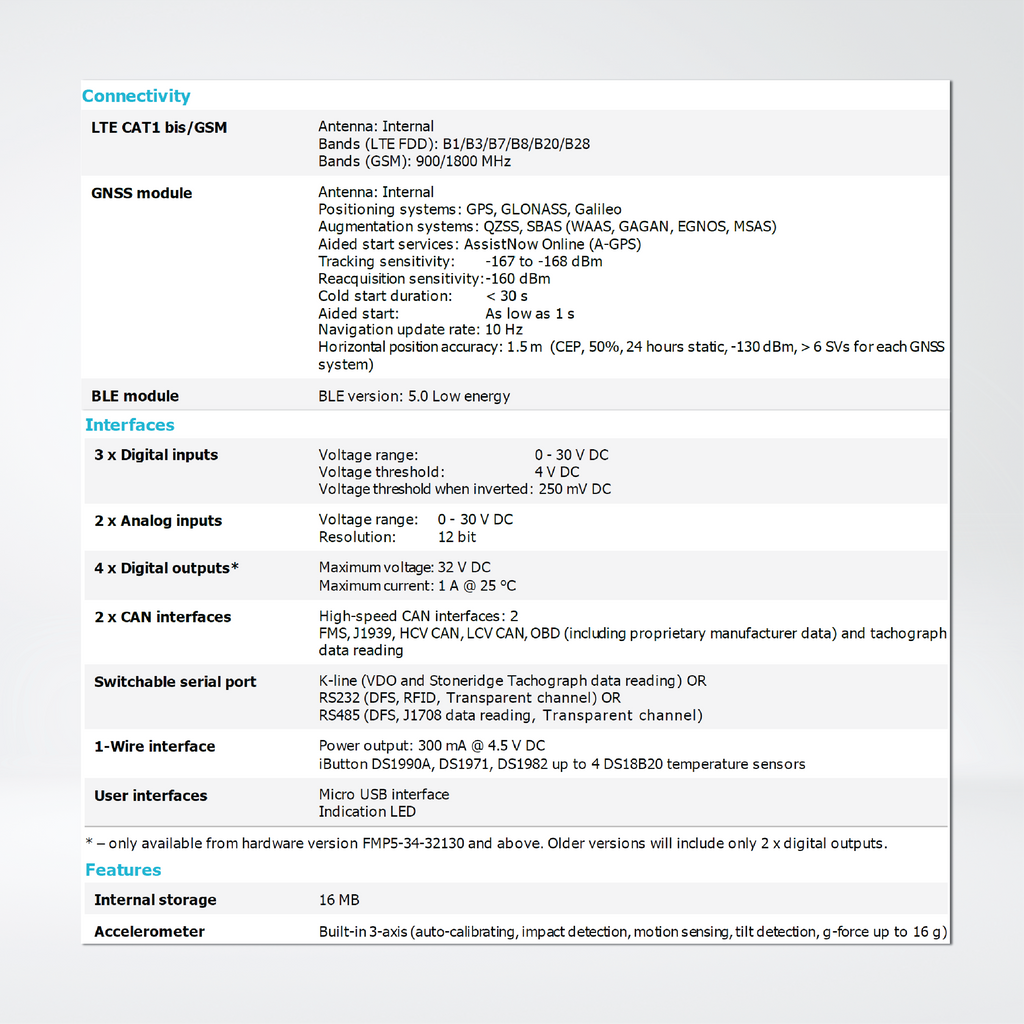

• Specifications:

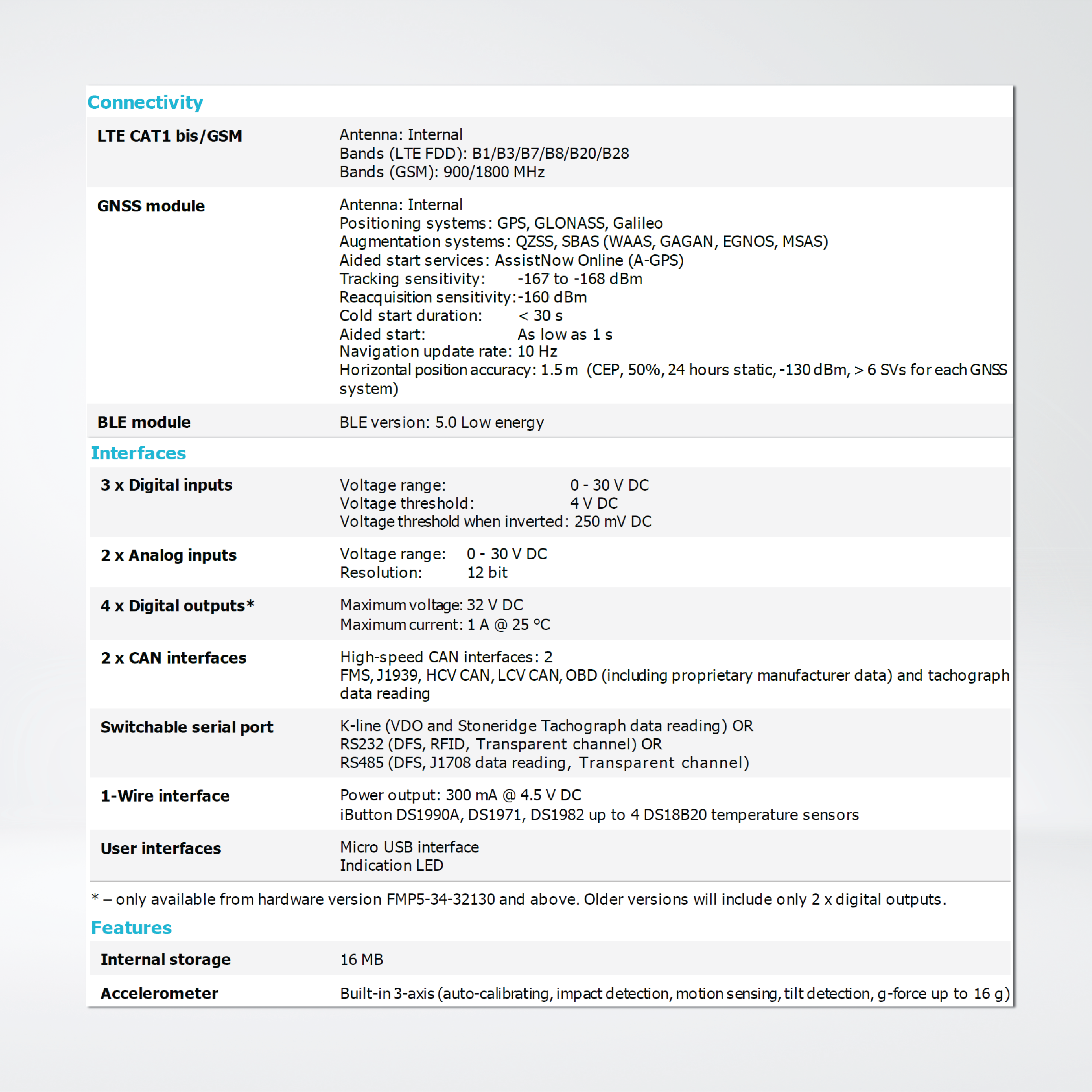

  • LTE CAT1 connectivity with 2G fallback
  • 3-axis accelerometer
  • 2xCAN for OBD and CAN data reading
  • CustomCAN
  • Internal 1050 mAh backup battery
  • Remote tachograph data reading
  • U-blox GNSS module

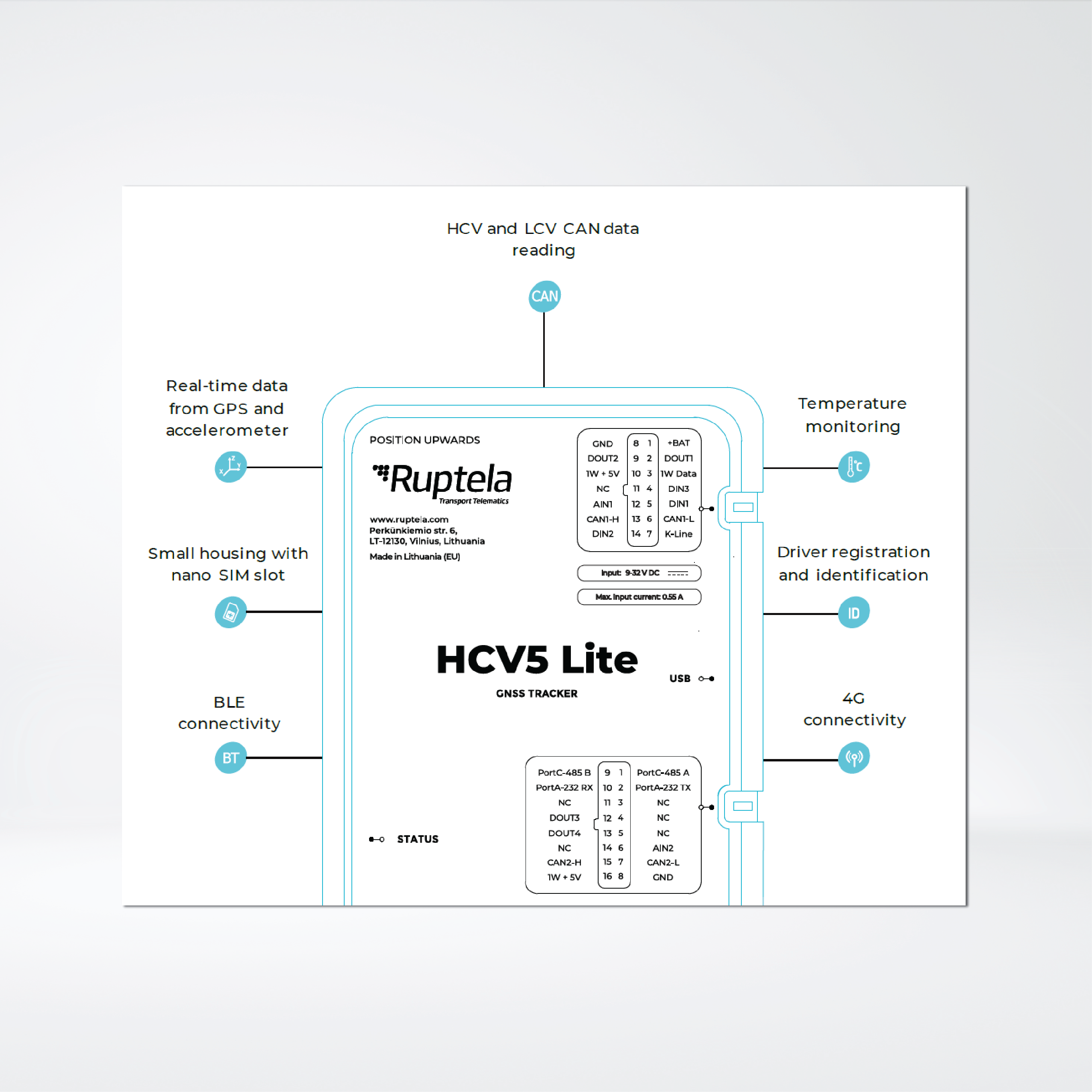

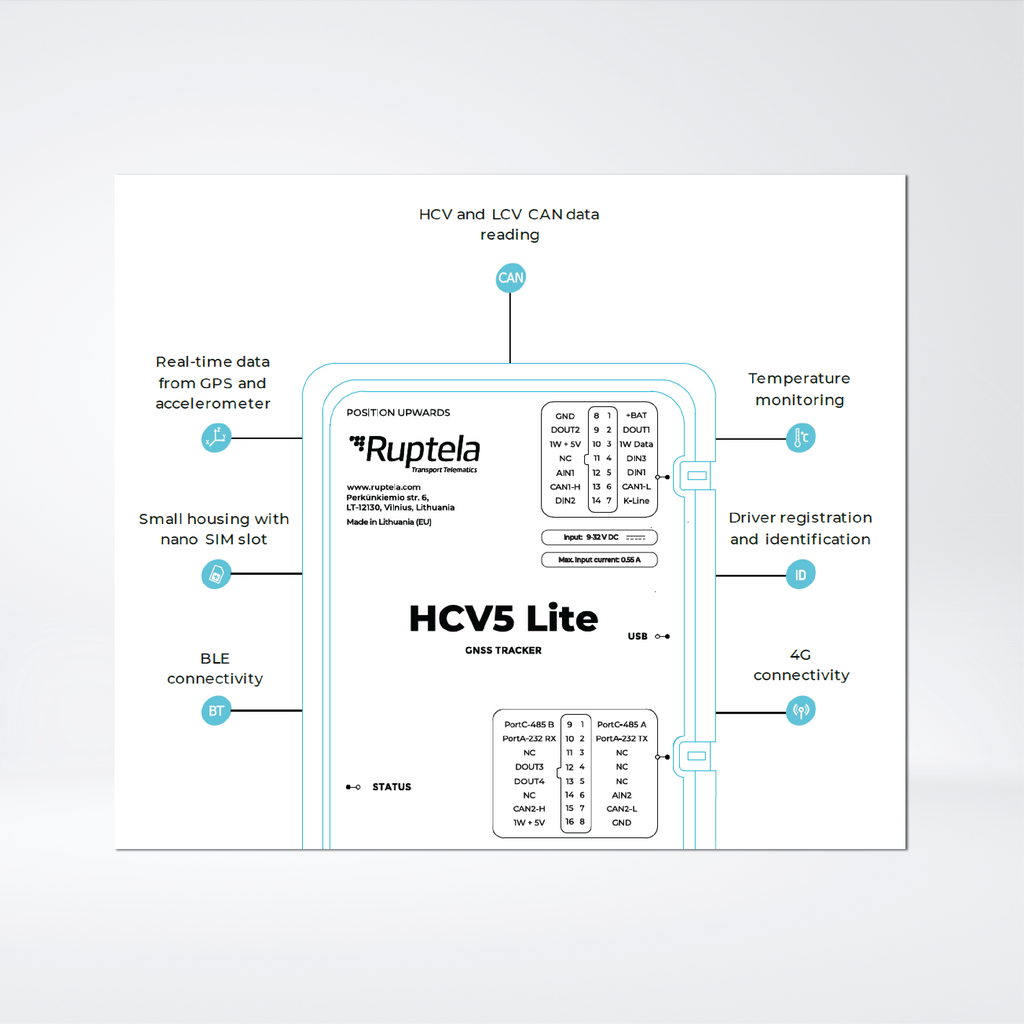

  • 3xDIN, 2xAIN, 4XDOUT, 1-wire
  • Internal memory (16 MB)
  • Jamming detection
  • Internal GNSS antenna
  • Switchable serial ports: RS232/RS485/K-line
  • FW configuration SMS/GPRS (FOTA)/USB
  • Proprietary vehicle data reading
  • Concealed OBD installation using splitter harnesses
  • Wide vehicle model coverage

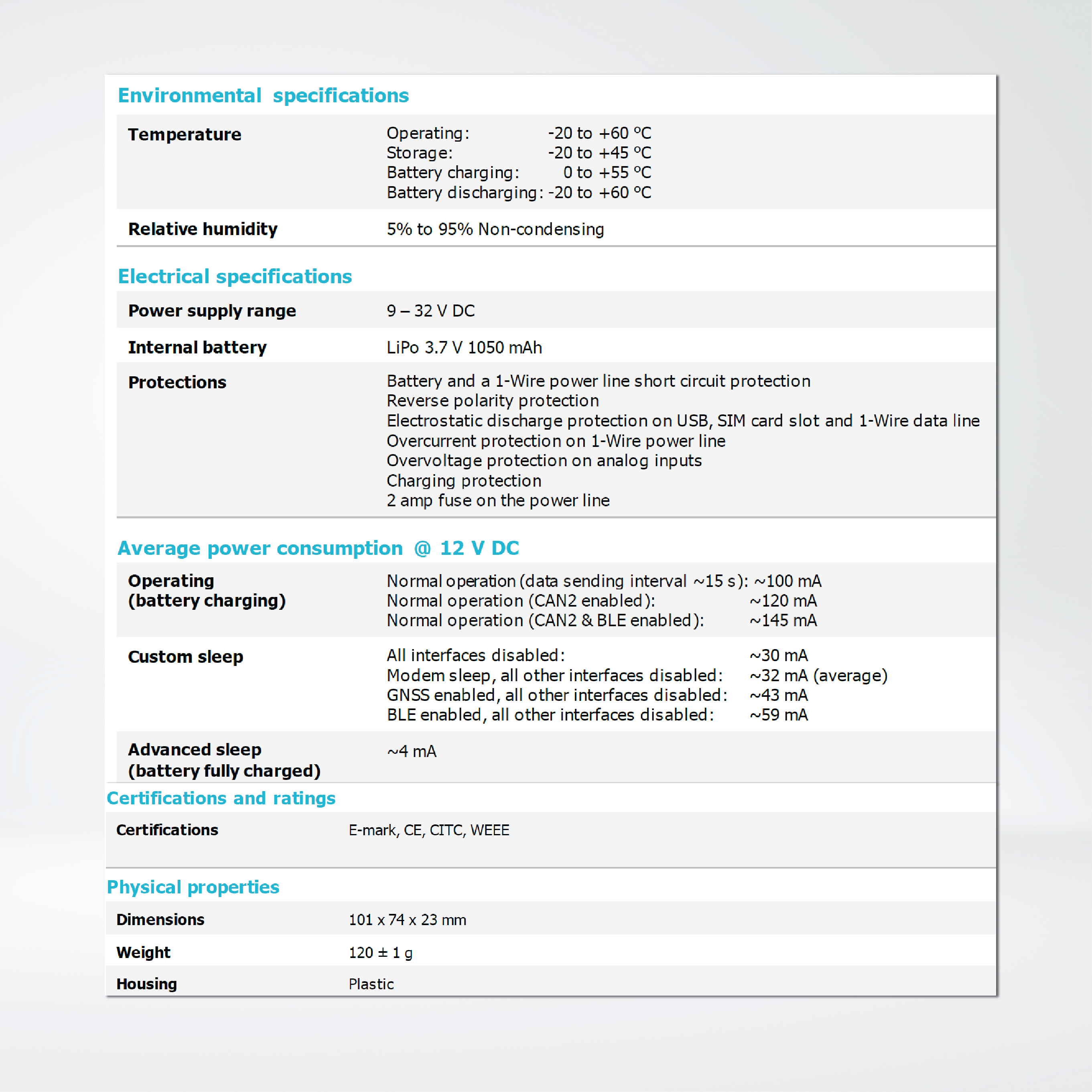

  • Operating temperature -20 °C to +60°C
  • Power supply 9-32V DC
  • Ergonomic size 101 x 74 x 23 mm


• Application:
  • Real-time monitoring of fleets and cargo
  • Fleet efficiency optimization
  • Driver behavior monitoring
  • Ensures driver, vehicle, and cargo safety and security
  • Fuel monitoring
  • Cargo conditions monitoring
  • Maintenance cost reduction
  • Remote tachograph data reading
  • Accident detection
  • Stolen vehicle recovery
  • Driver identification
  • Business and private trips selection
