SW4008 8 Outputs and 24 HD inputs ,medium size video wall controller

Features

SW4008 is a medium size video wall controller which offers up to 8 outputs and 24 HD inputs simultaneously. It is perfect for a small video wall with a handful of input signals.

- Advanced Crossbar technology
- Robust FPGA video data process technology
- No PC vulnerabilities
- Input signal preview
- Four-window overlay mode
- 1 to 72 display outputs

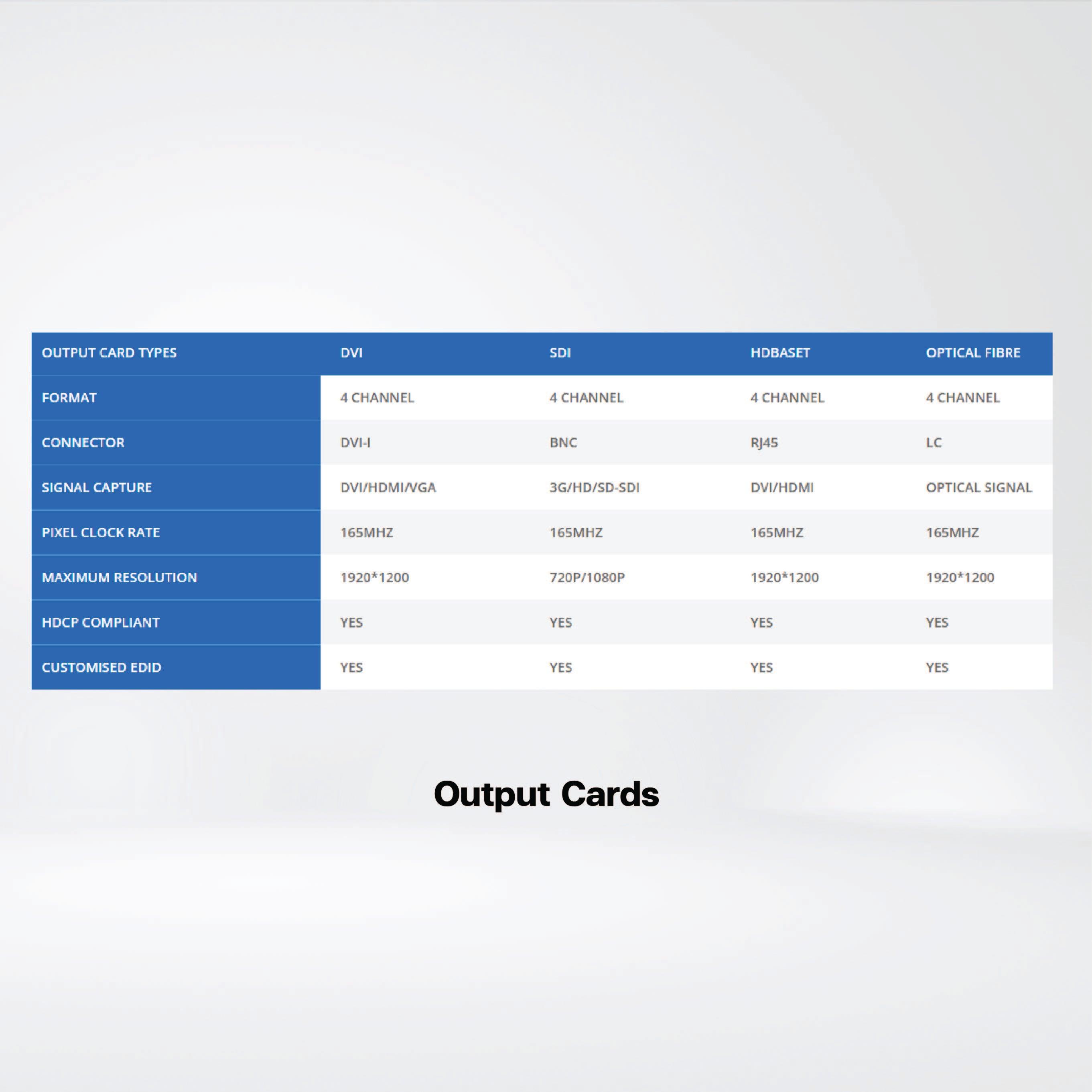

- Multi output option: DVI-I (Digital & Analog), SDI, HDBaseT, Optical Fibre
- 1-256 1080p IP camera inputs capture
- 1-128 HD DVI/HDMI/RGB inputs capture
- 1-512 composite video inputs capture

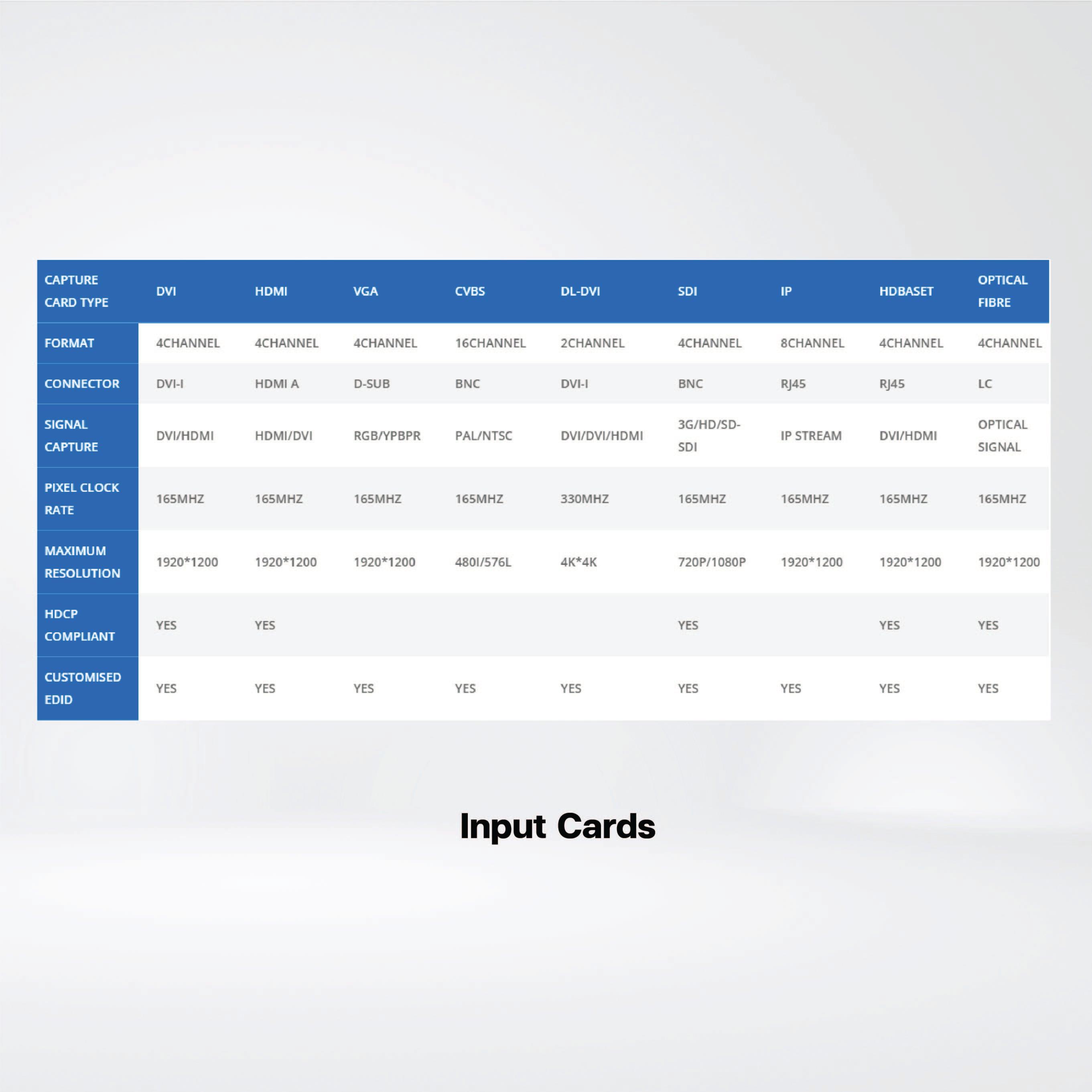

- Multi input option: DVI-D, HDMI, VGA, YPbPr, CVBS, SDI, HDBaseT, Optical Fibre, IP streaming
- MVWS( Multi Video Walls Support) technology
- Low power consumption
- Fast start up within 5 seconds, Low capture & display latency
- HDCP support for DVI/HDMI
- Support 4K input capture
- Support IP signal decode and capture
