Description
reComputer R1000 is a powerful and flexible industry Raspberry Pi IoT gateway & controller, CM4-powered, with AI capabilities. With 3*RS485, dual-ethernets, BACnet, and Modbus support, equipped with all the necessary features that a robust and reliable industrial edge IoT device needs. With compatibility with AI NPU accelerator, it's a perfect fit for remote access control, especially BMS, BAS, and iBMS.
Features
-

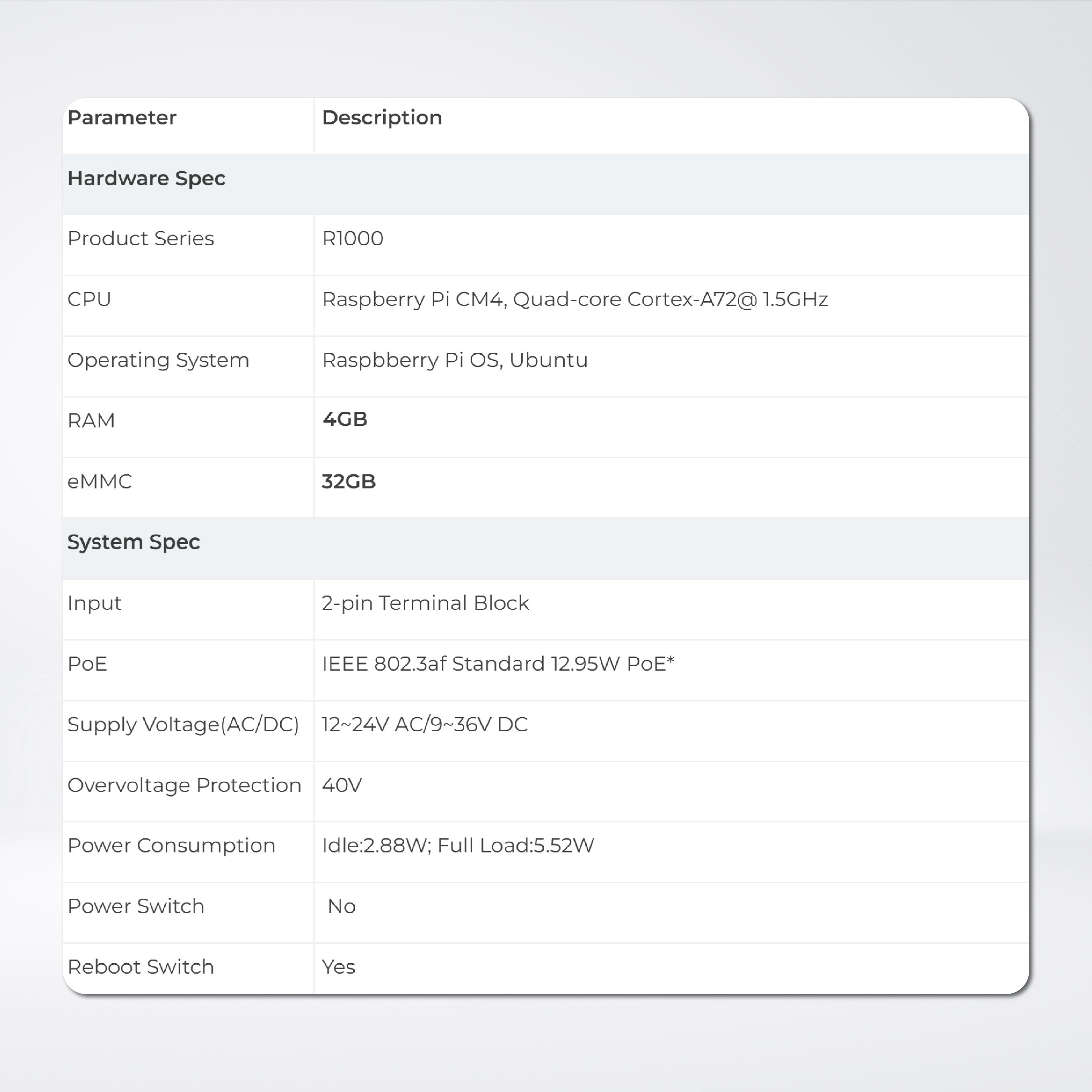

Hardware Spec
Product Series : R1000
CPU : Raspberry Pi CM4, Quad-core Cortex-A72@ 1.5GHz
Operating System : Raspbberry Pi OS, Ubuntu
RAM : 4GB
eMMC : 32GB -
System Spec
Input : 2-pin Terminal Block
PoE : IEEE 802.3af Standard 12.95W PoE*
Supply Voltage(AC/DC) : 12~24V AC/9~36V DC
Overvoltage Protection : 40V
Power Consumption : Idle:2.88W; Full Load:5.52W
Power Switch : No
Reboot Switch : Yes -
Interface
Ethernet : 1 x 10/100/1000 Mbps (supports PoE*) ,1 x 10/100 Mbps IEEE802.3/802.3u
USB : 2 x USB-A 2.0 Host , 1 x USB-C 2.0 (For flashing OS)
RS485 : 3 x 3-pin Terminal Block (isolated)
HDMI : 1 x HDMI 2.0
SIM Card Slot : supports Standard SIM Card
M.2 Slot : supports M.2 NVMe SSD
LED : 6 x LED indicators
Buzzer : 1
Reset Button : 1
HDMI : 1 x HDMI 2.0 -
Wireless Communication
LoRa® : USB LoRa®*/SPI LoRa®*
4G Cellular : 4G LTE*
Zigbee : USB Zigbee* -
Standards
EMC :
- ESD: EN61000-4-2, Level 3
- EFT: EN61000-4-4, Level 2
- Surge: EN61000-4-5, Level 2
Certification :
- CE, FCC
- TELEC
- RoHS -
Ambient Conditions
Ingress Protection : IP40
Operating Temperature : -30~70 °C
Operating Humidity : 10~95% RH
Storage Temperature : -40~80 °C -
Others
Supercapacitor UPS : SuperCAP UPS LTC3350 Module*
Hardware Watchdog : 1~255s
RTC : High Accuracy RTC
Security : Encryption Chip TPM 2.0* , ATECC608A
Heat Dissipation : Fanless
