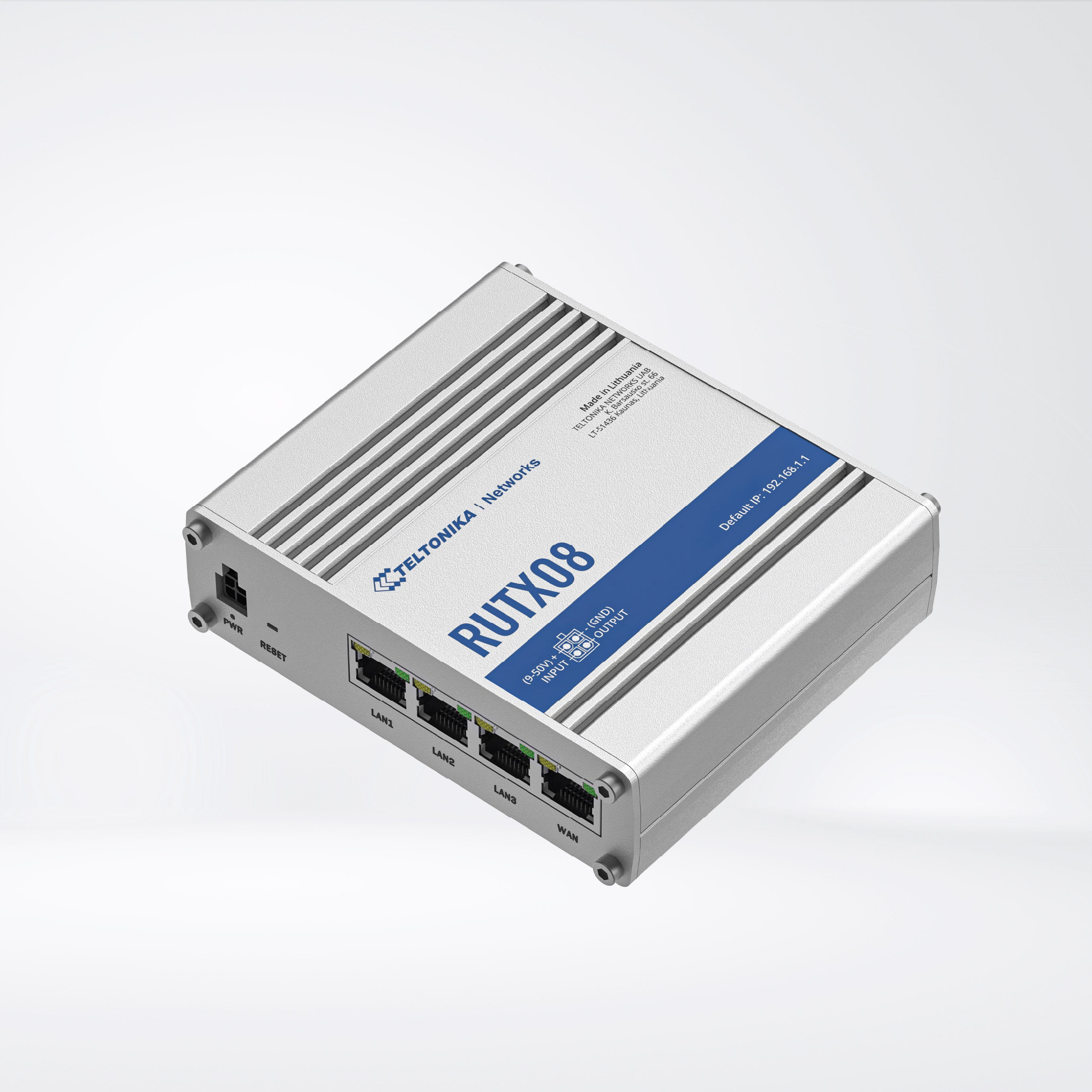

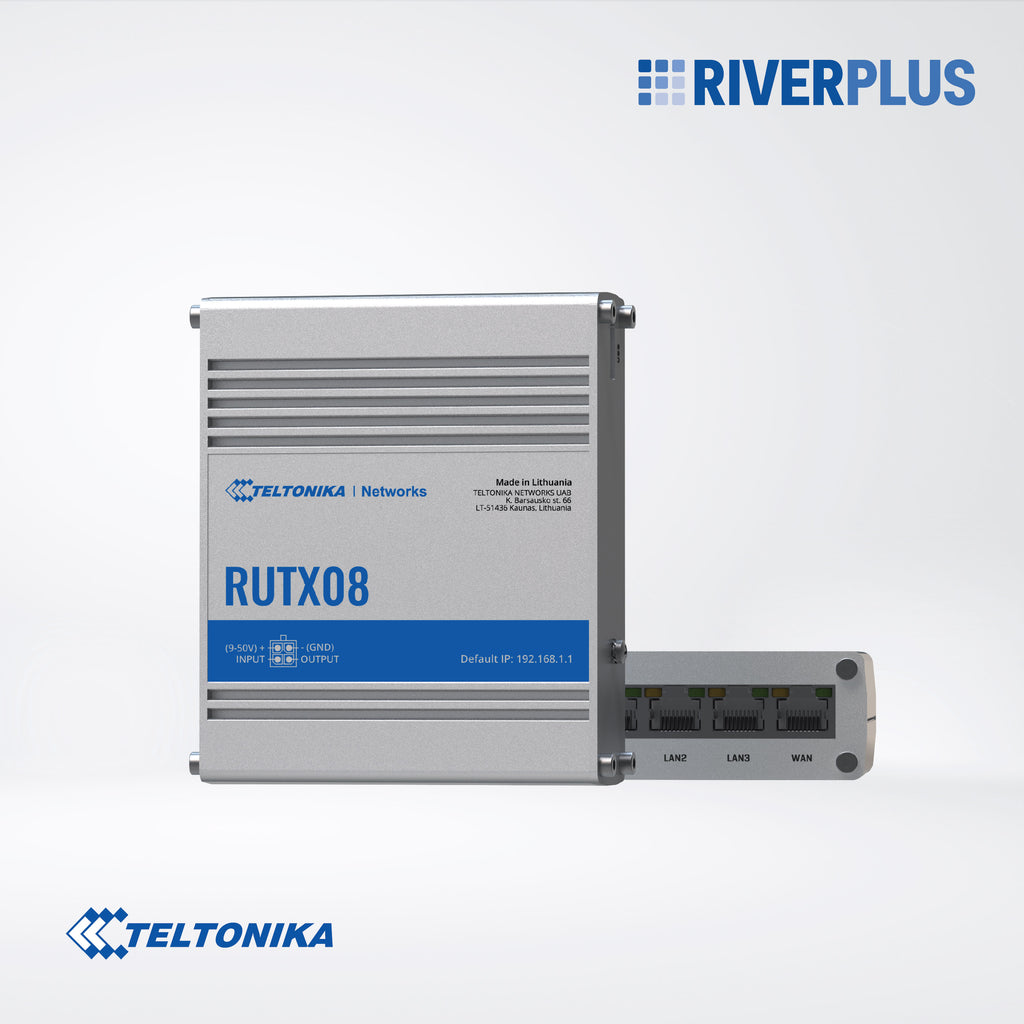

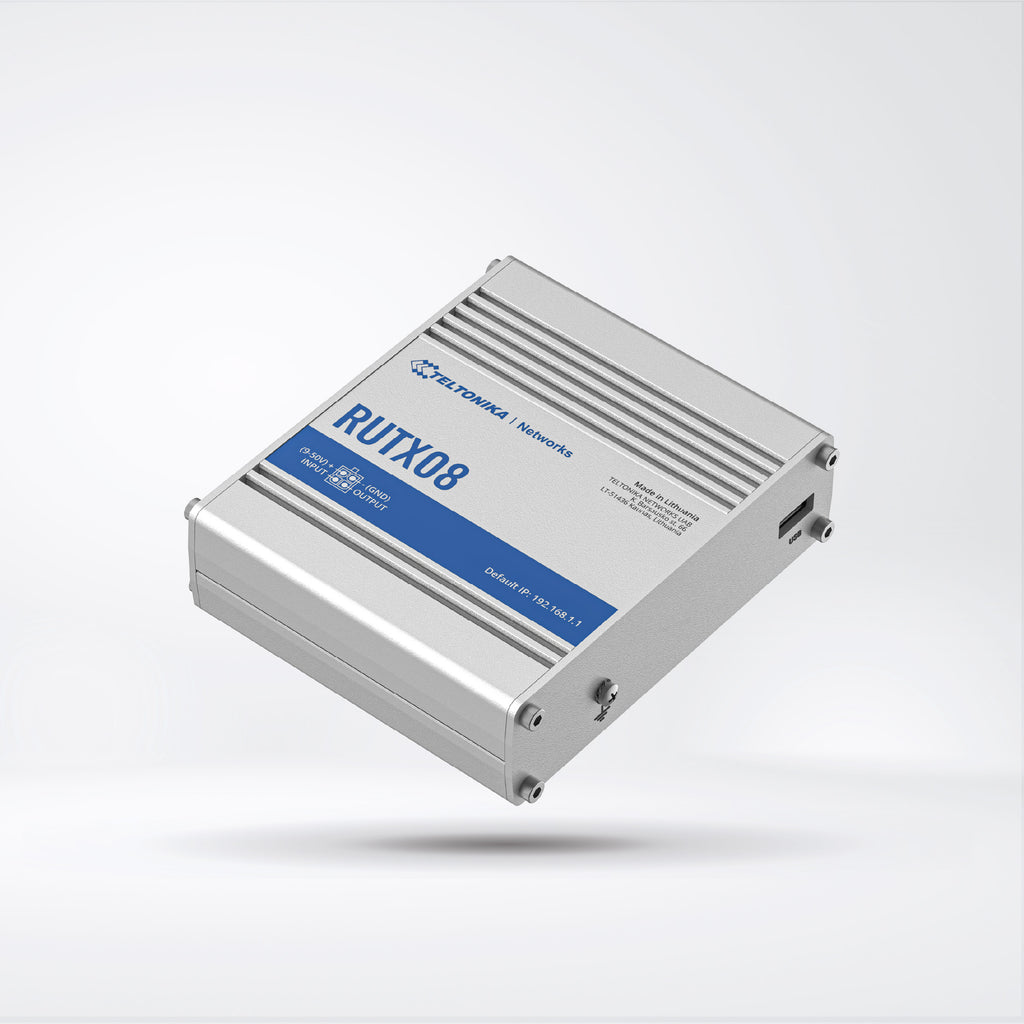

RUTX08 Industrial Ethernet Router

This robust industrial router has four Gigabit Ethernet ports, a Quad-Core CPU, and 256 MB RAM. These powerful specifications combined with core RutOS software features, such as multiple VPN services, advanced Firewall, and RMS support, make this device a superb industrial performer.

Features

HARDWARE

• CPU : Qualcomm, 4 x ARM Cortex A7, 717 MHz
• Storage : 256 MB Flash
• Memory : 256 MB RAM
• Powering option : 4pin power socket, 9-50 VDC

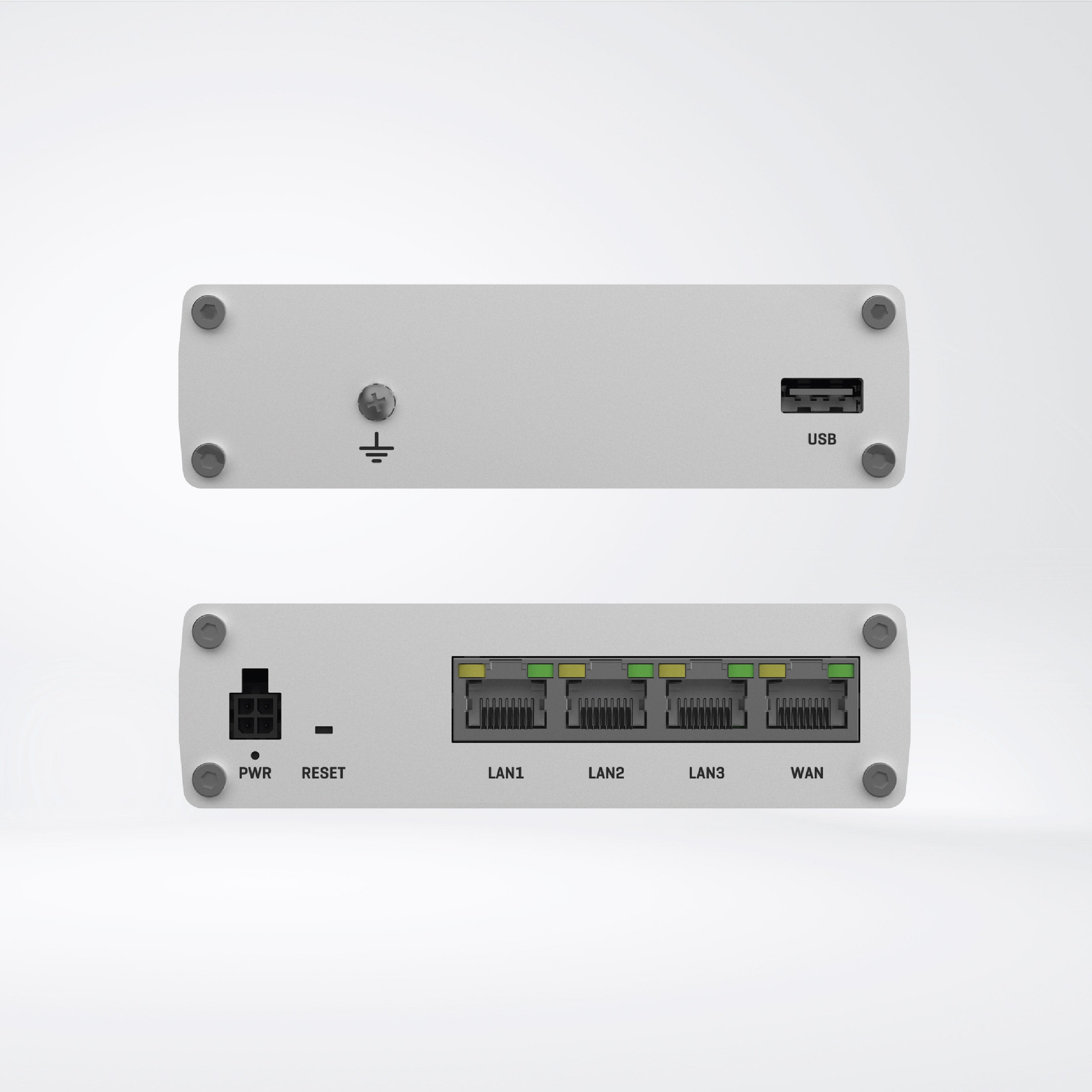

• Ethernet : 4 x 10/100/1000 Ethernet ports: 1 x WAN (configurable as LAN), 3 x LAN
• Inputs/Outputs : On 4pin socket: 1 x Digital input, 1 x Digital open collector output
• Other : 1 x USB Host
• Status LEDs : 8 x Ethernet, 1 x Power
• Operating temperature : -40 °C to 75 °C
• Housing : Aluminium housing with DIN rail mounting option and grounding capability
• Dimensions (W x H x D) : 115 x 32.2 x 95.2 mm
• Weight : 345 g

SOFTWARE

• Operating system : RutOS (OpenWrt based Linux OS)

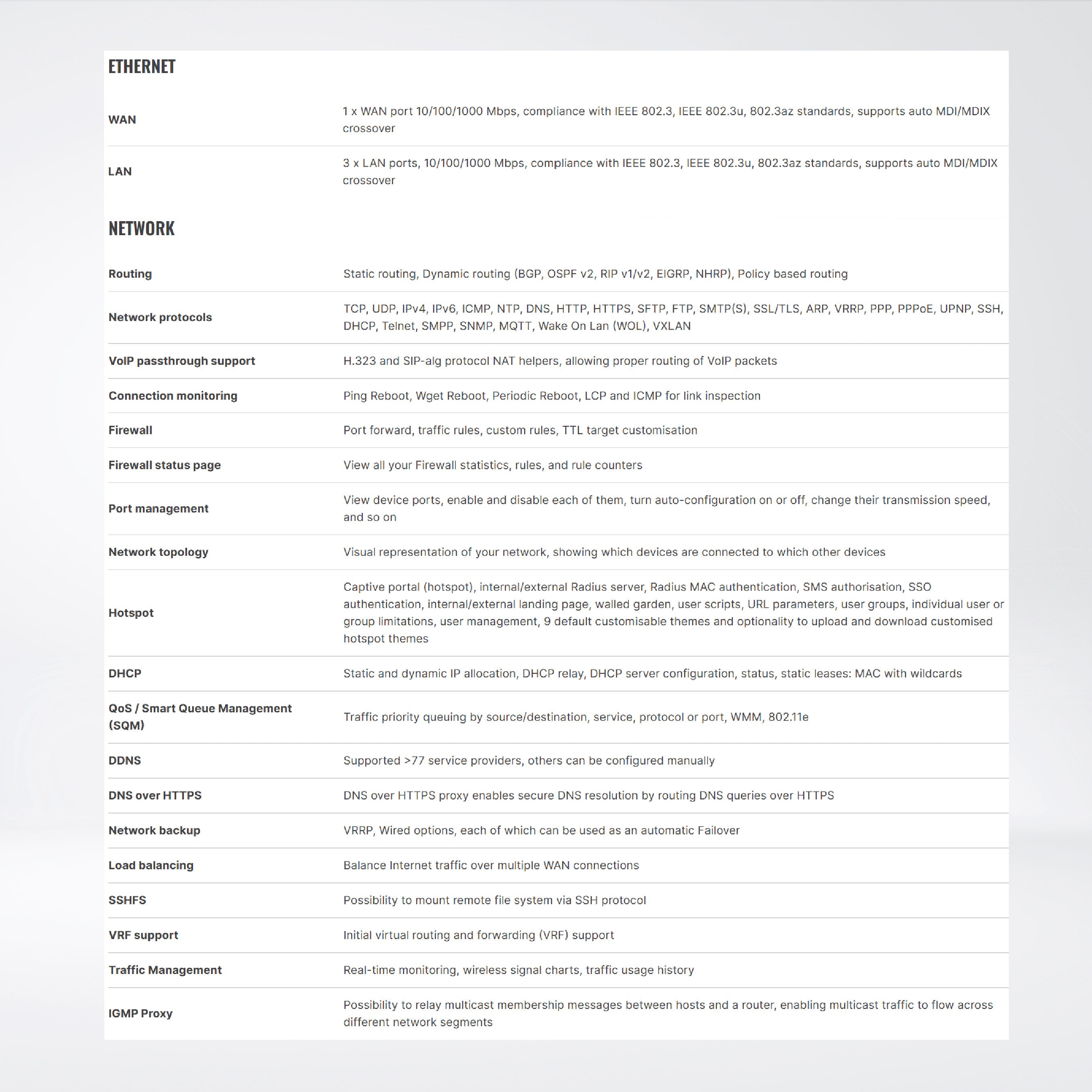

• Network protocols : TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSLv3, TLS 1.3, ARP, PPP, PPPoE, DHCP, Telnet
• Routing :  Static routes, Dynamic routes (BGP, OSPFv2, RIPv1/v2, EIGRP, NHRP), Routing rules
• Firewall : Port forward, Traffic rules, Custom rules, Pre-configured firewall rules, DMZ, NAT, NAT-T, NAT helpers, Unlimited firewall configuration via CLI

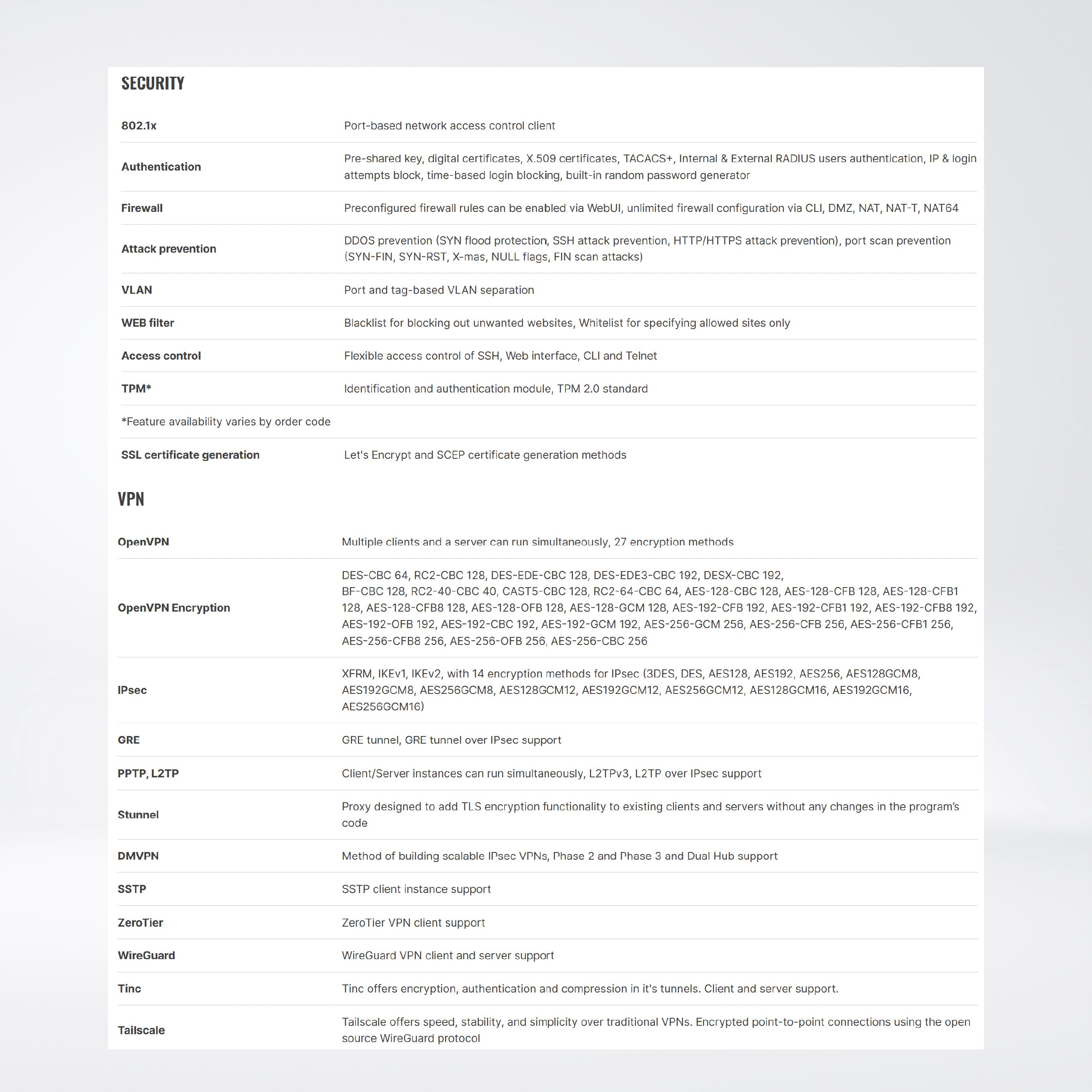

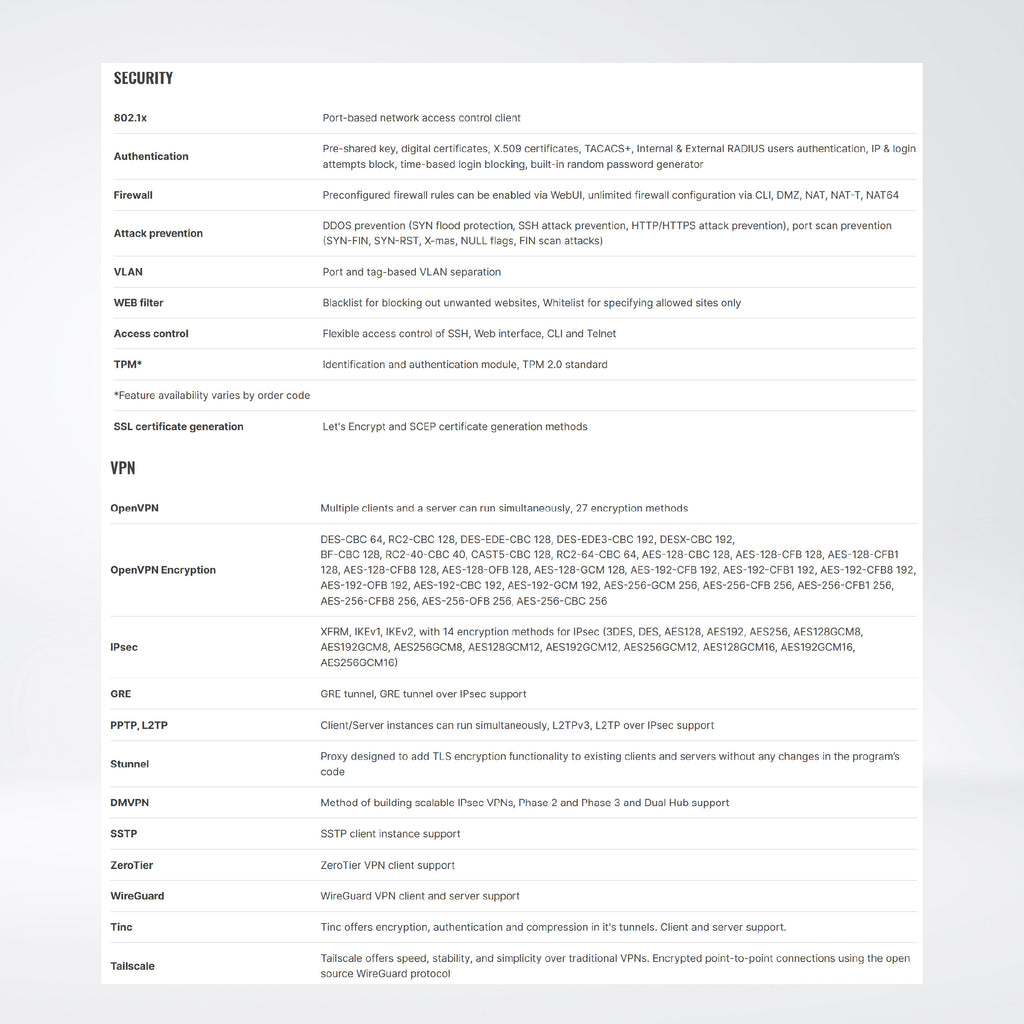

• Security : DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), Port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)

• VPN and tunneling : OpenVPN, IPsec, GRE, PPTP, L2TP, Stunnel, DMVPN, SSTP, WireGuard, ZeroTier
• Monitoring and Management : WEB UI, CLI, SSH, TR-069, SNMP, JSON-RPC, MQTT, MODBUS, RMS
• Cloud solutions : RMS, FOTA, Azure IoT Hub, Cloud of Things, Cumulocity, ThingWorx
• Services : DDNS, VRRP, Wake On Lan (WOL), WEB filter, UPNP, Network shares (Samba), Traffic Logging
• Administration :  Multi user, Configuration profiles, Diagnostics, logs, Configuration backup
