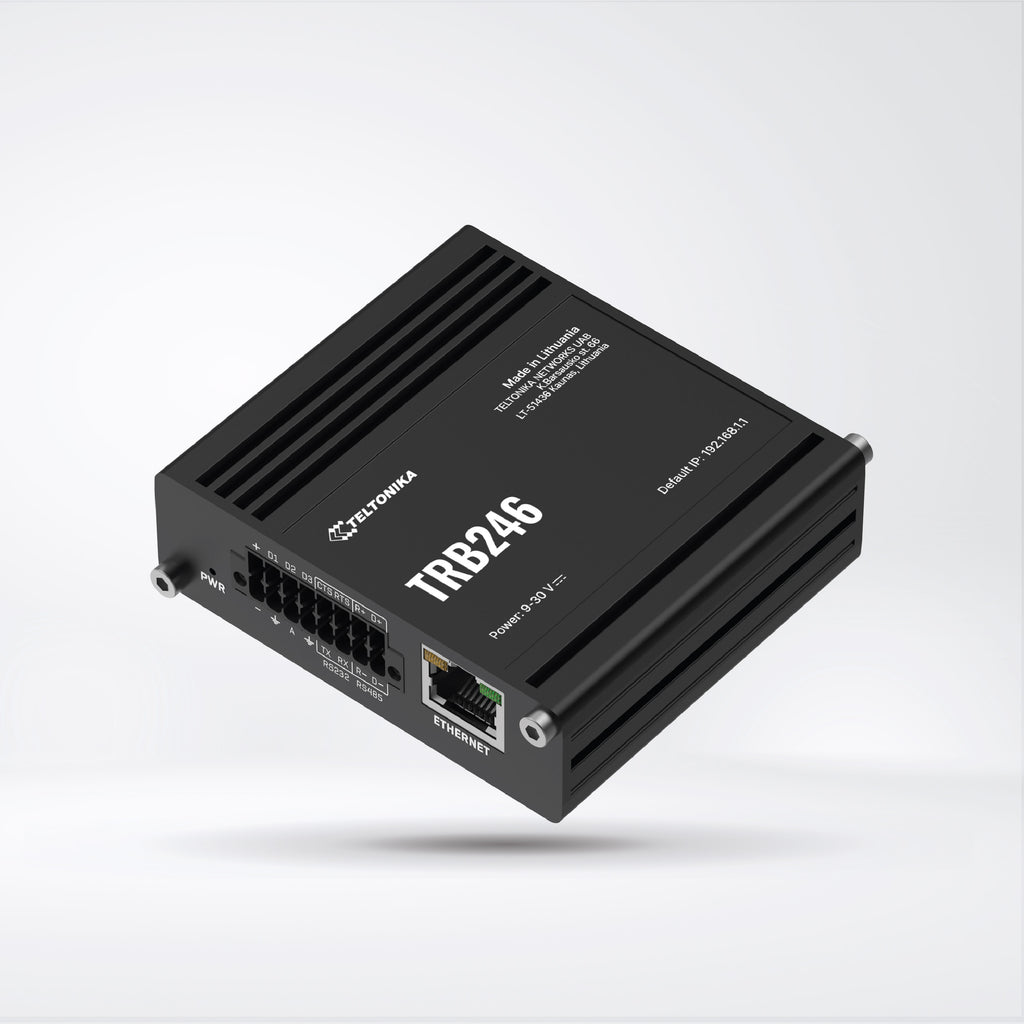

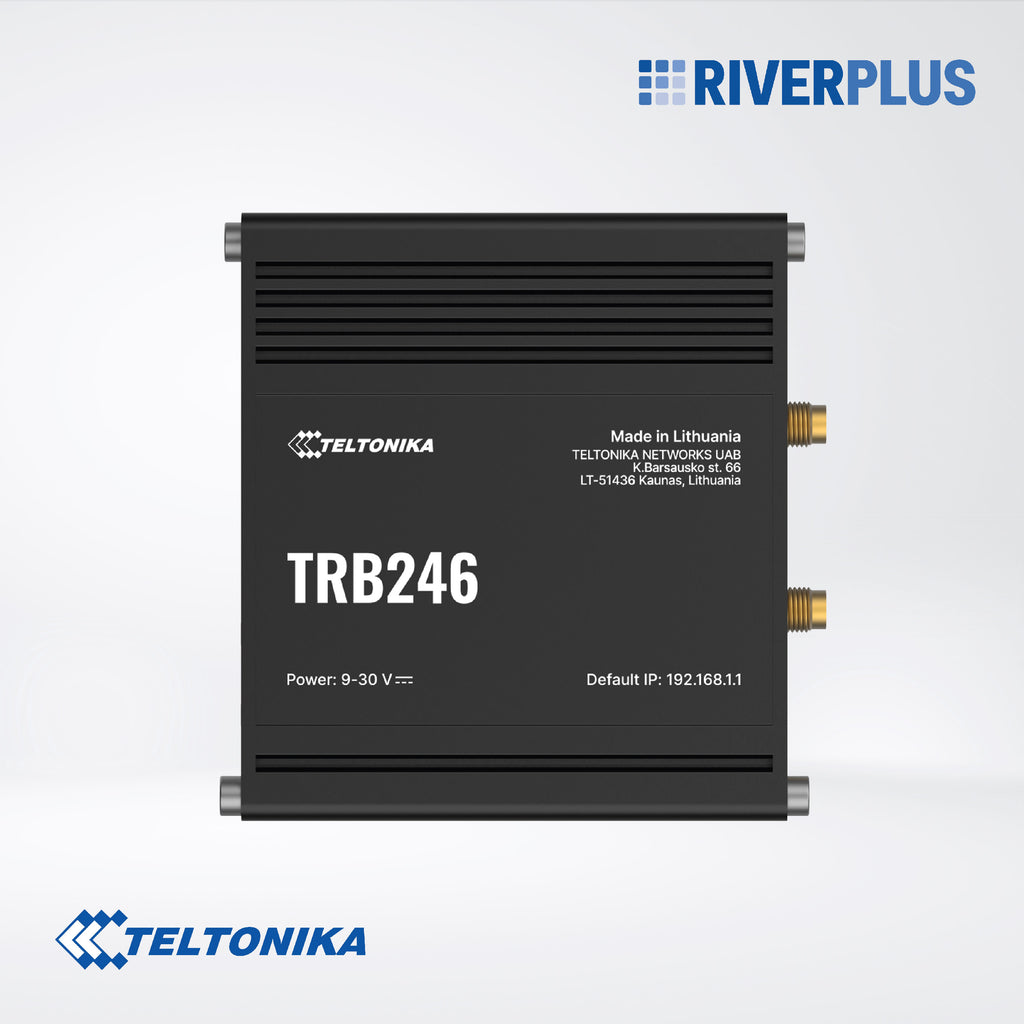

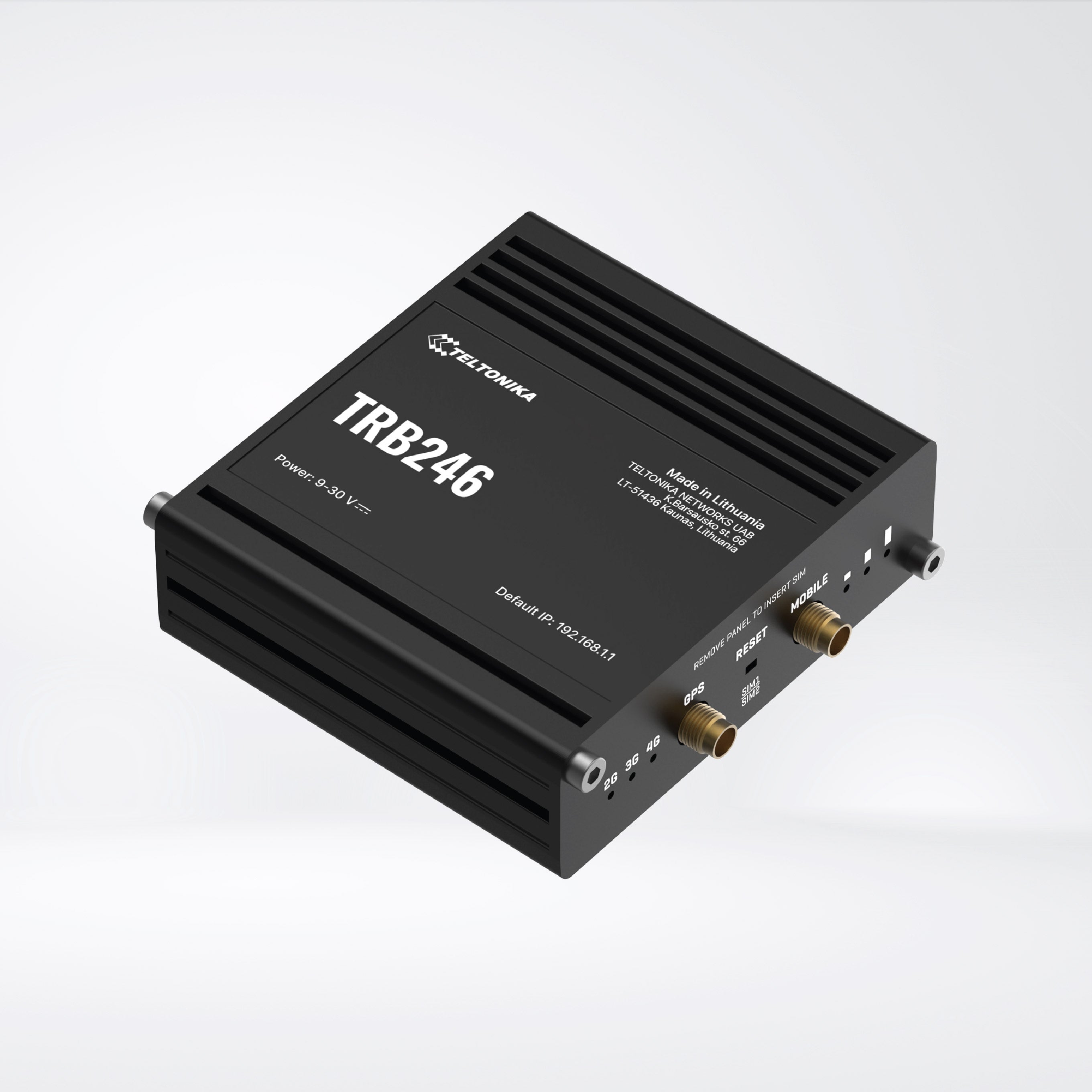

TRB246 LTE Cat 4 Industrial Gateway

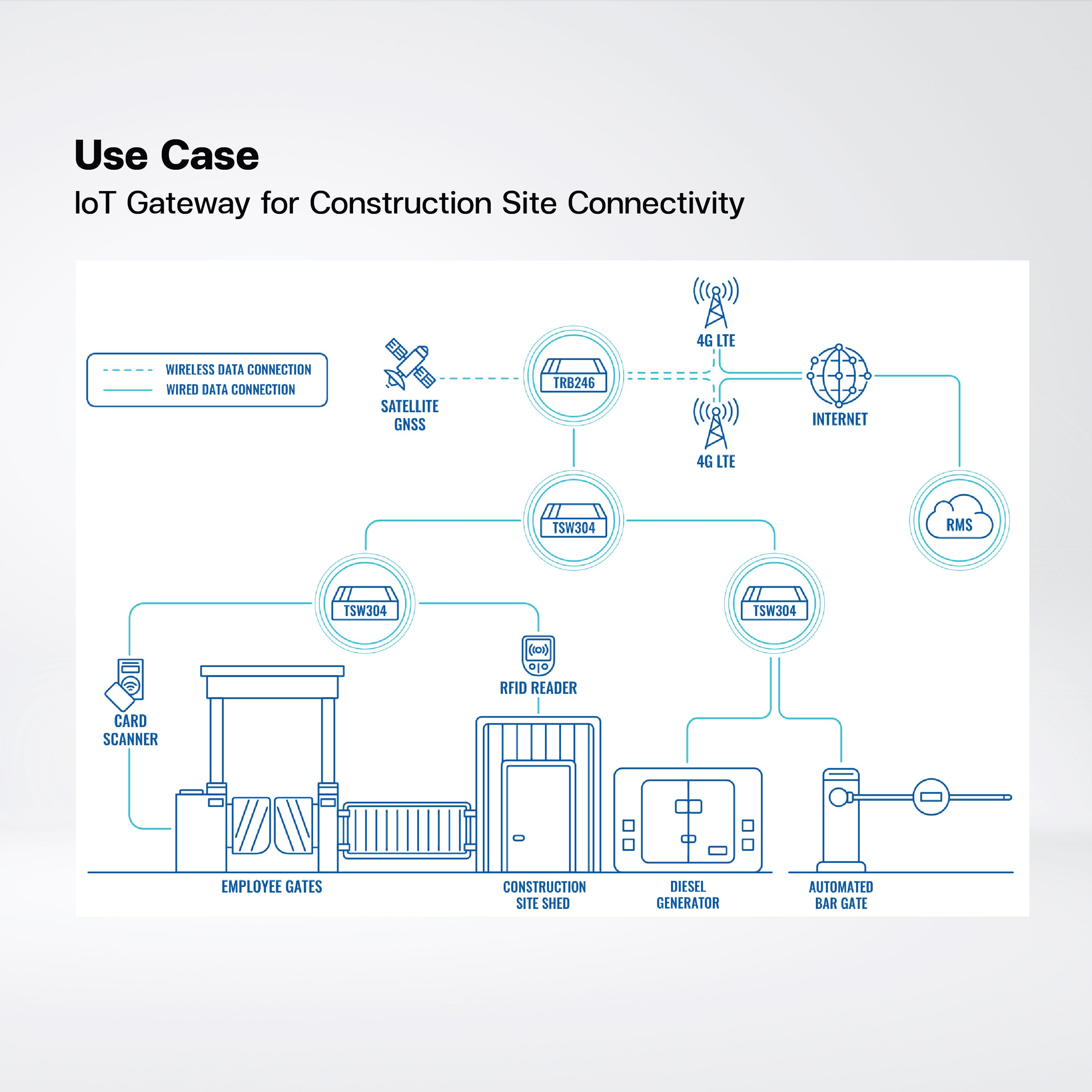

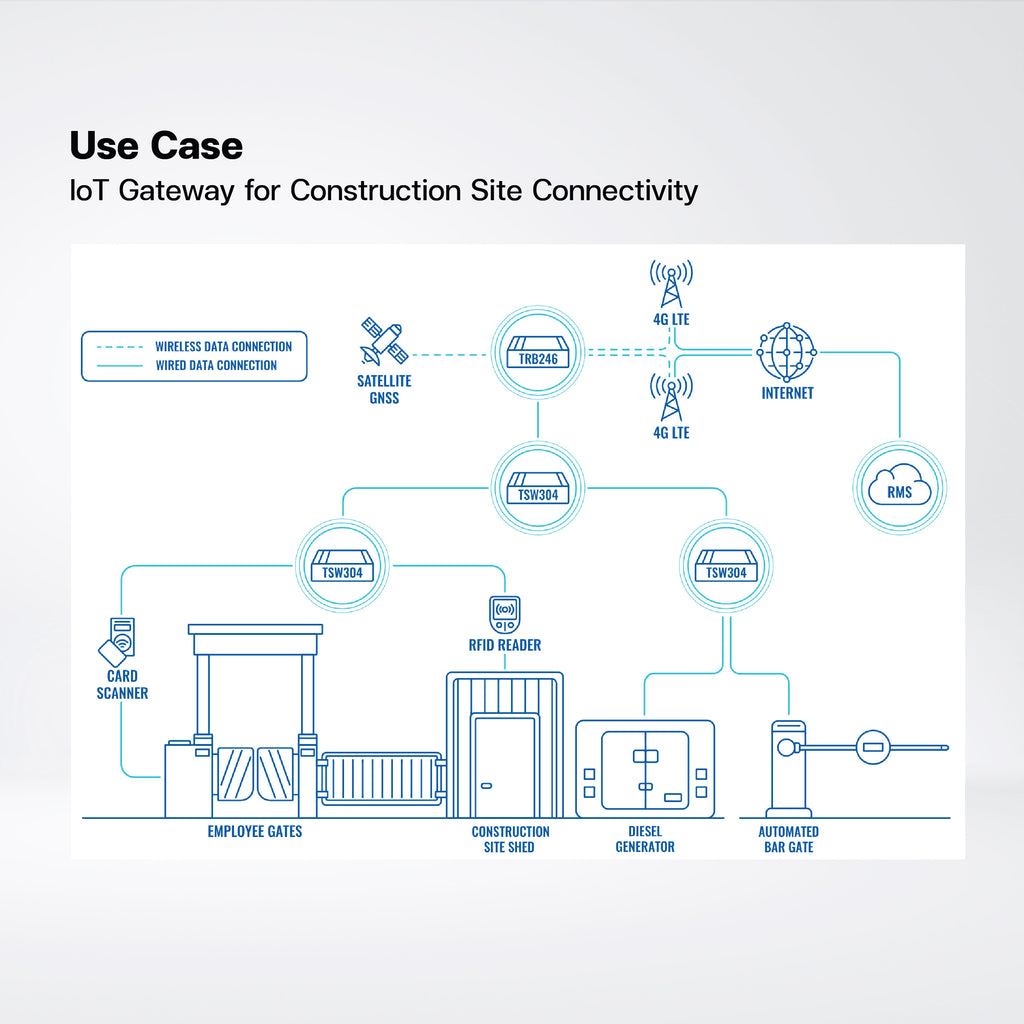

The TRB246 is an industrial 4G LTE gateway equipped with I/Os, RS232, RS485, and Ethernet interfaces for IoT solutions requiring versatility and reliable M2M communication support. This gateway has dual SIM functionality and supports multiple protocols, like DNP3, DLMS, and Modbus, vital for ensuring smooth data transmission. Encased in aluminium housing, this industrial-grade IoT gateway can tolerate extreme environmental conditions in manufacturing, agriculture, or construction.

Features

• CONNECTIVITY
  4G/LTE (Cat 4), 3G, 2G
• DUAL SIM
  Auto-failover, backup WAN, and more switching scenarios
• INTERFACES

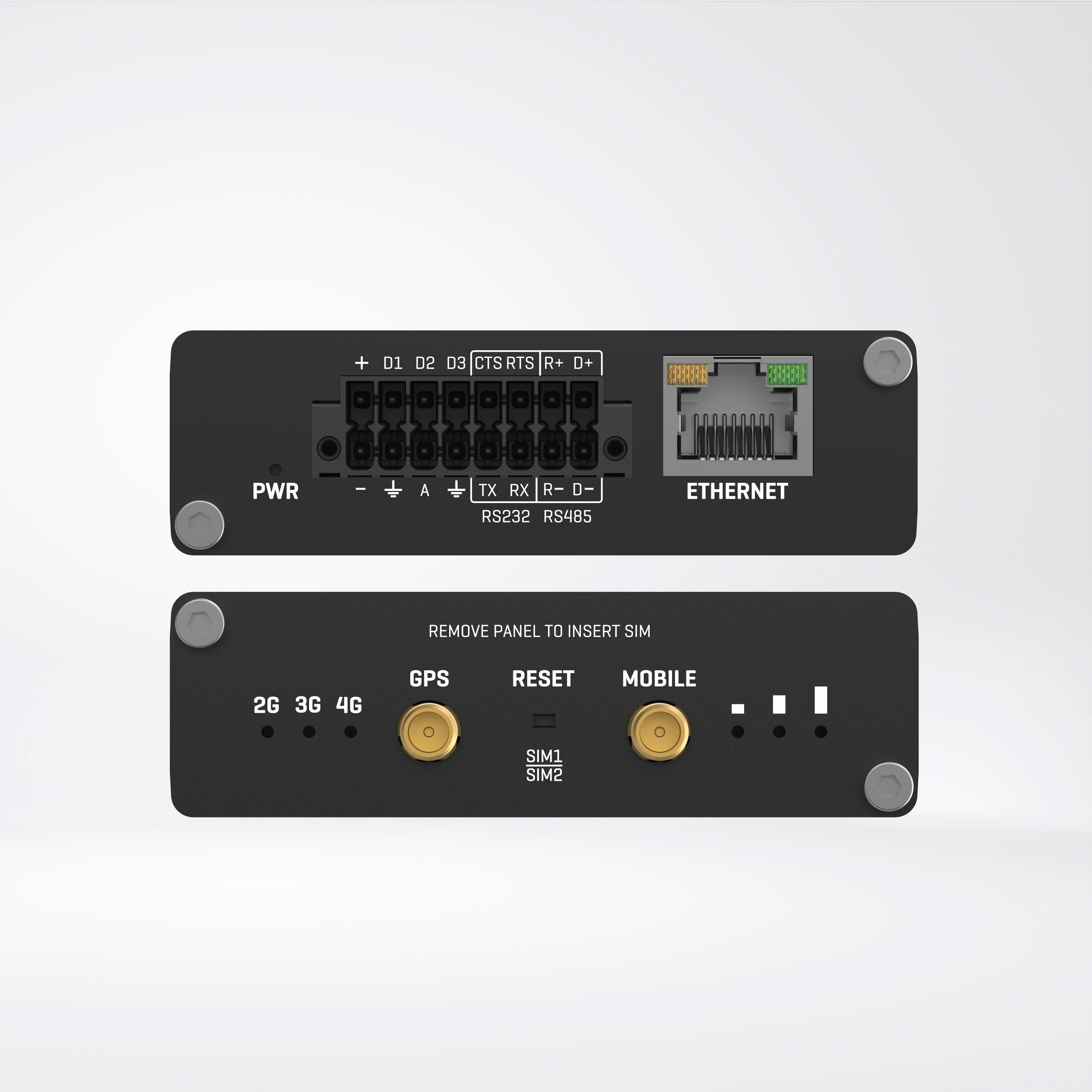

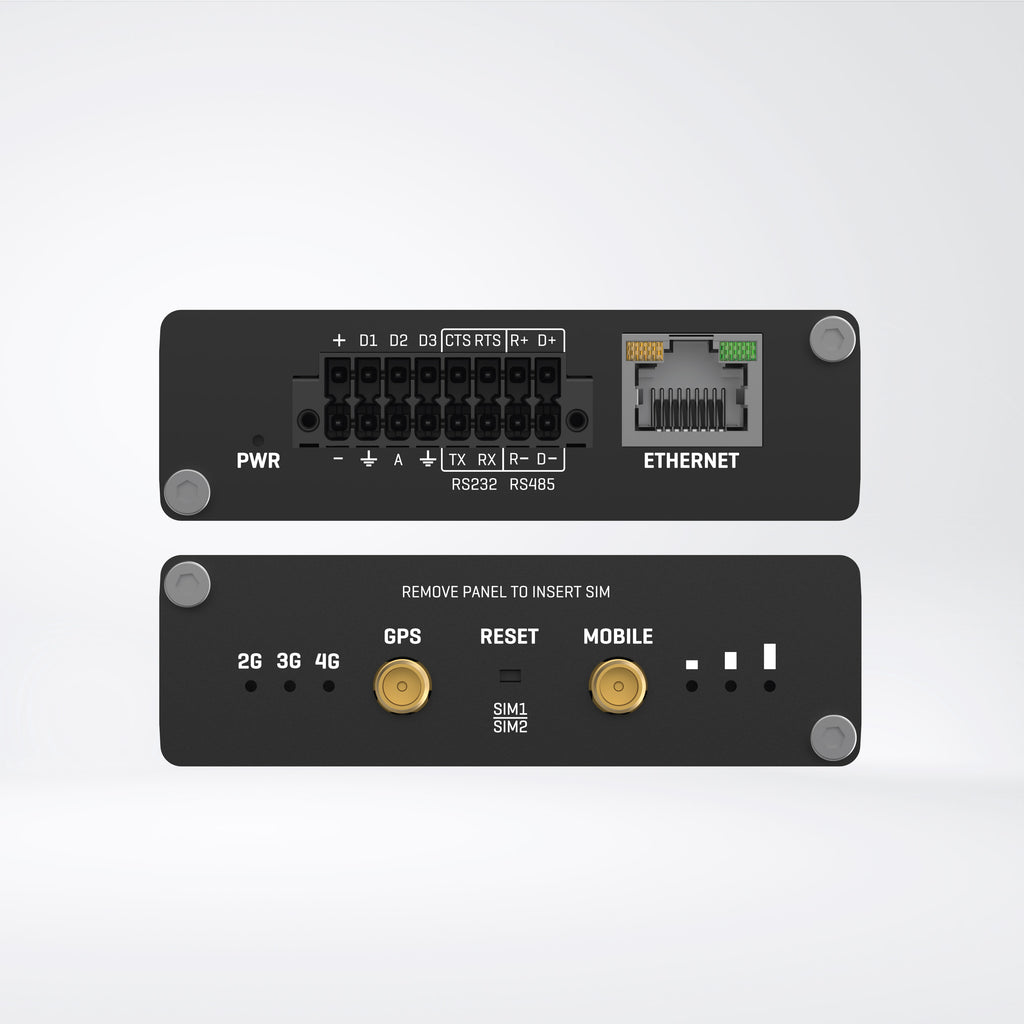

  Ethernet, I/Os, and serial (RS232, RS485) interfaces with 16-pin terminal block
• PROTOCOLS
  Supports DNP3, DLMS, Modbus, and other communication protocols

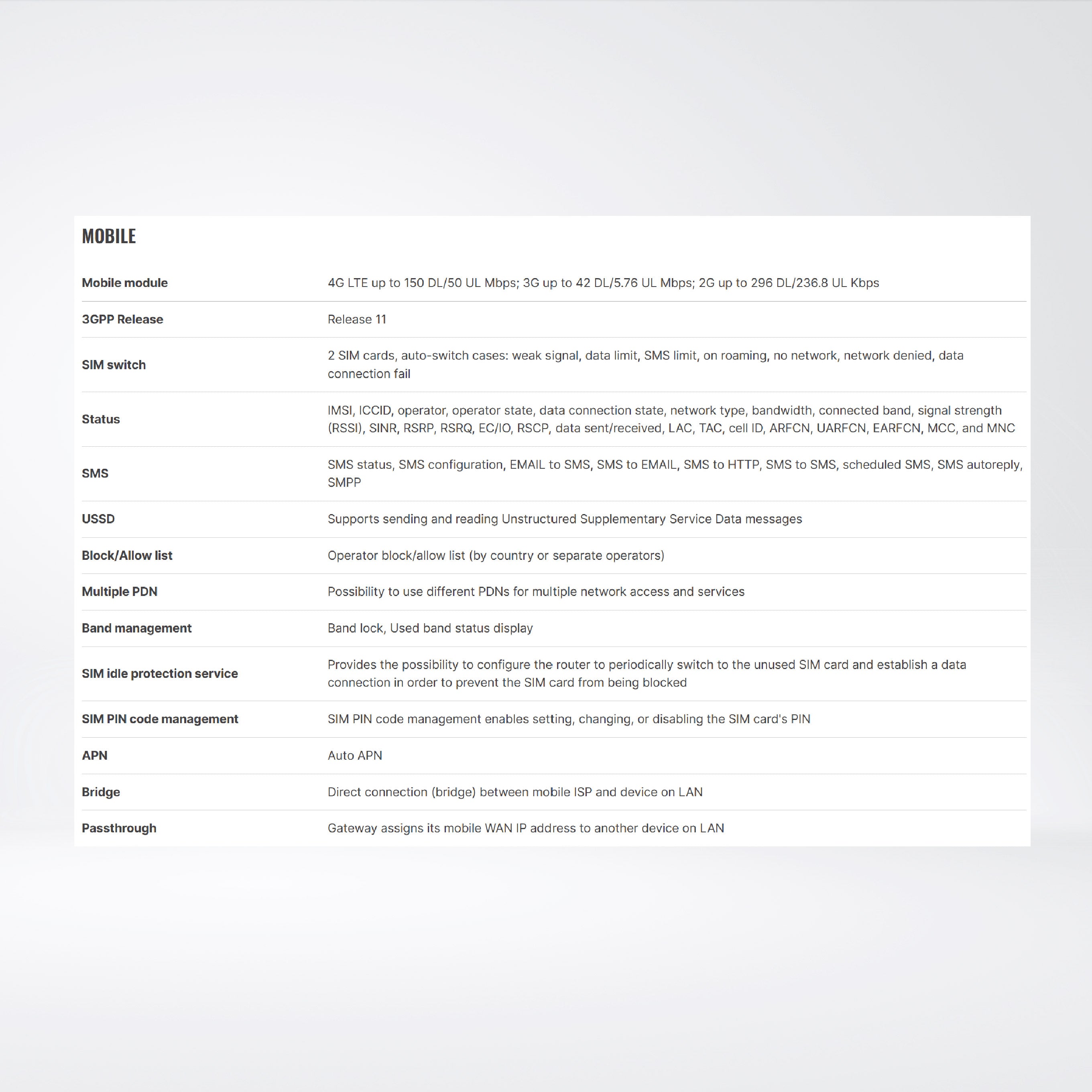

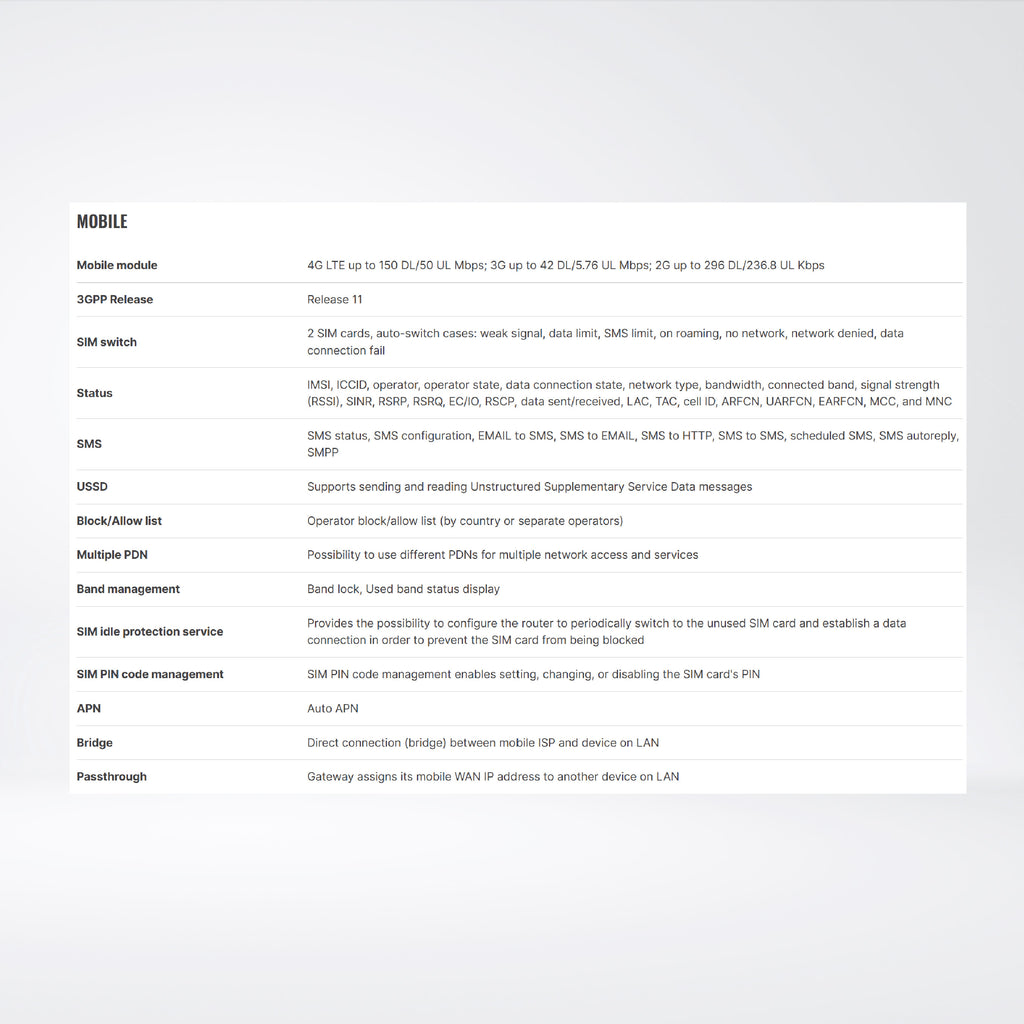

• Mobile module : 4G LTE up to 150 DL/50 UL Mbps; 3G up to 42 DL/5.76 UL Mbps; 2G up to 296 DL/236.8 UL Kbps

• 3GPP Release : Release 11

• SIM switch : 2 SIM cards, auto-switch cases: weak signal, data limit, SMS limit, on roaming, no network, network denied, data connection fail

• Status : IMSI, ICCID, operator, operator state, data connection state, network type, bandwidth, connected band, signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, data sent/received, LAC, TAC, cell ID, ARFCN, UARFCN, EARFCN, MCC, and MNC

• SMS : SMS status, SMS configuration, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP

• USSD : Supports sending and reading Unstructured Supplementary Service Data messages

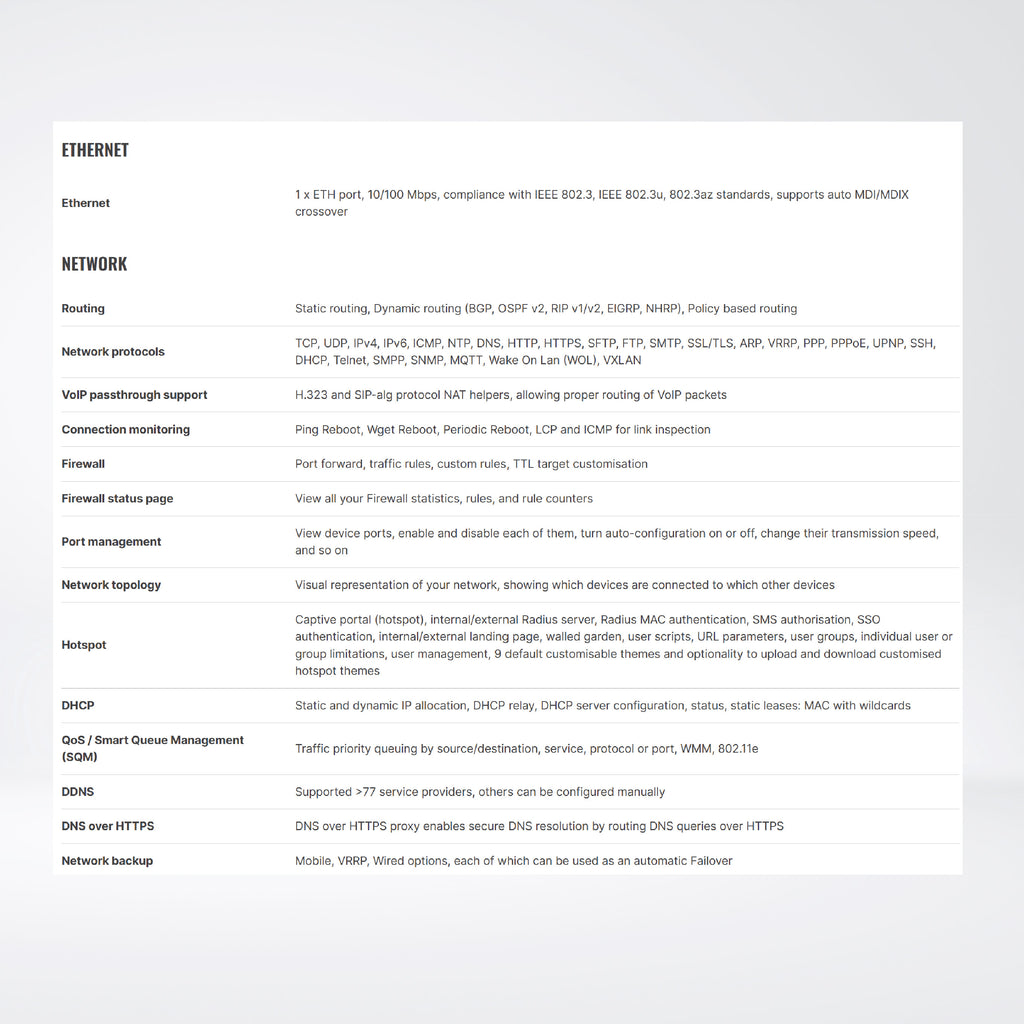

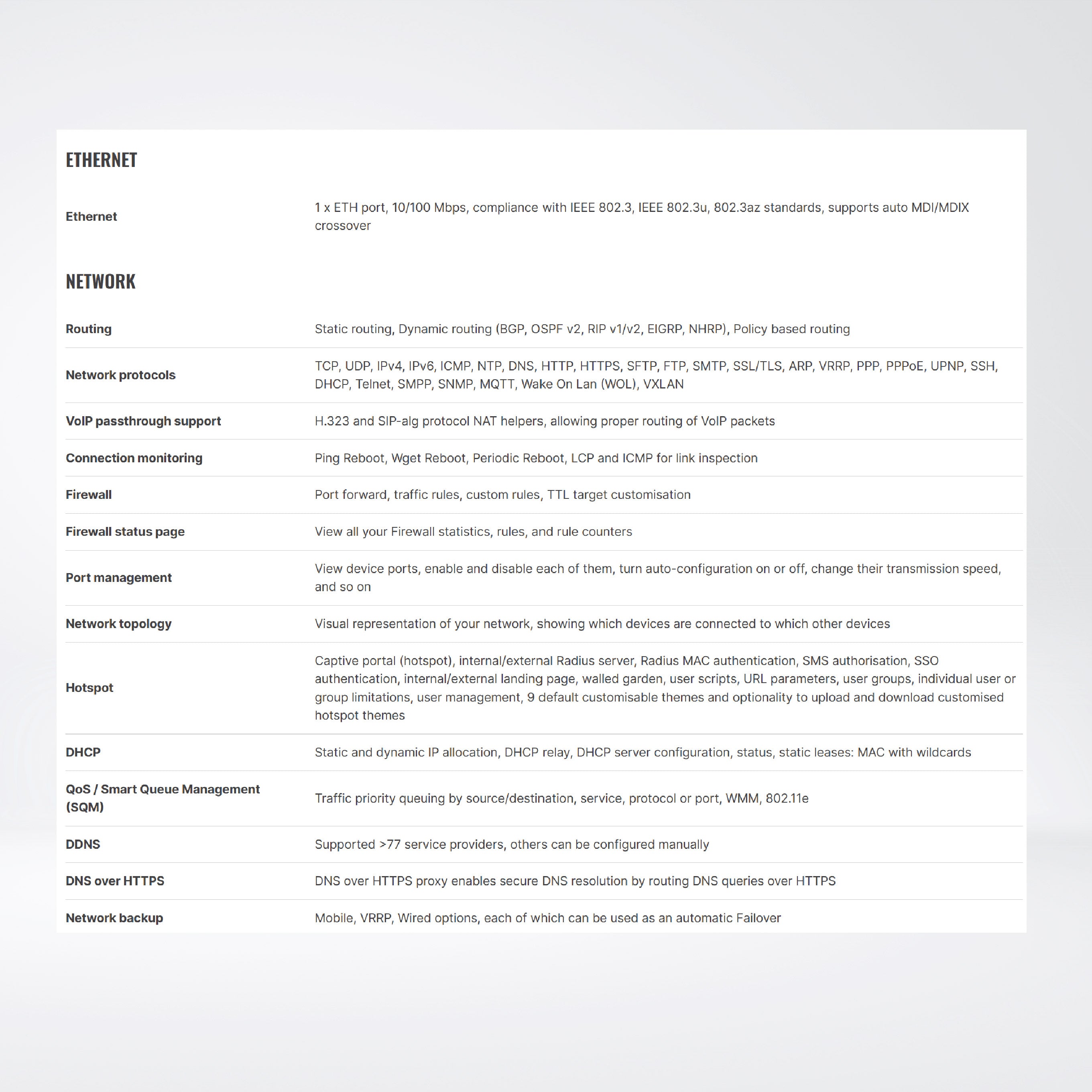

• Ethernet : 1 x ETH port, 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover

  • Routing

    Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing

  • Network protocols

    TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL), VXLAN

  • VoIP passthrough support

    H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets

  • Connection monitoring

    Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection

  • Firewall

    Port forward, traffic rules, custom rules, TTL target customisation

  • Firewall status page

    View all your Firewall statistics, rules, and rule counters

  • Port management

    View device ports, enable and disable each of them, turn auto-configuration on or off, change their transmission speed, and so on
