Description

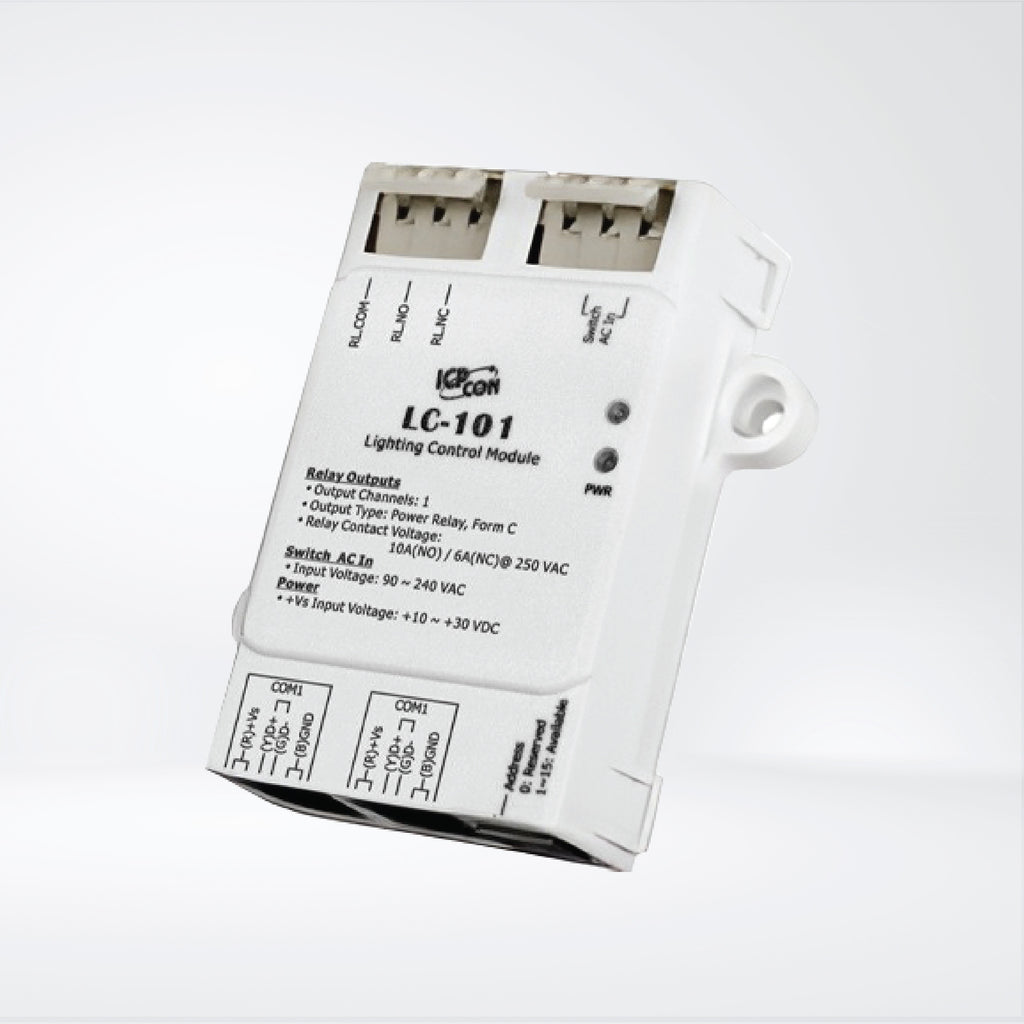

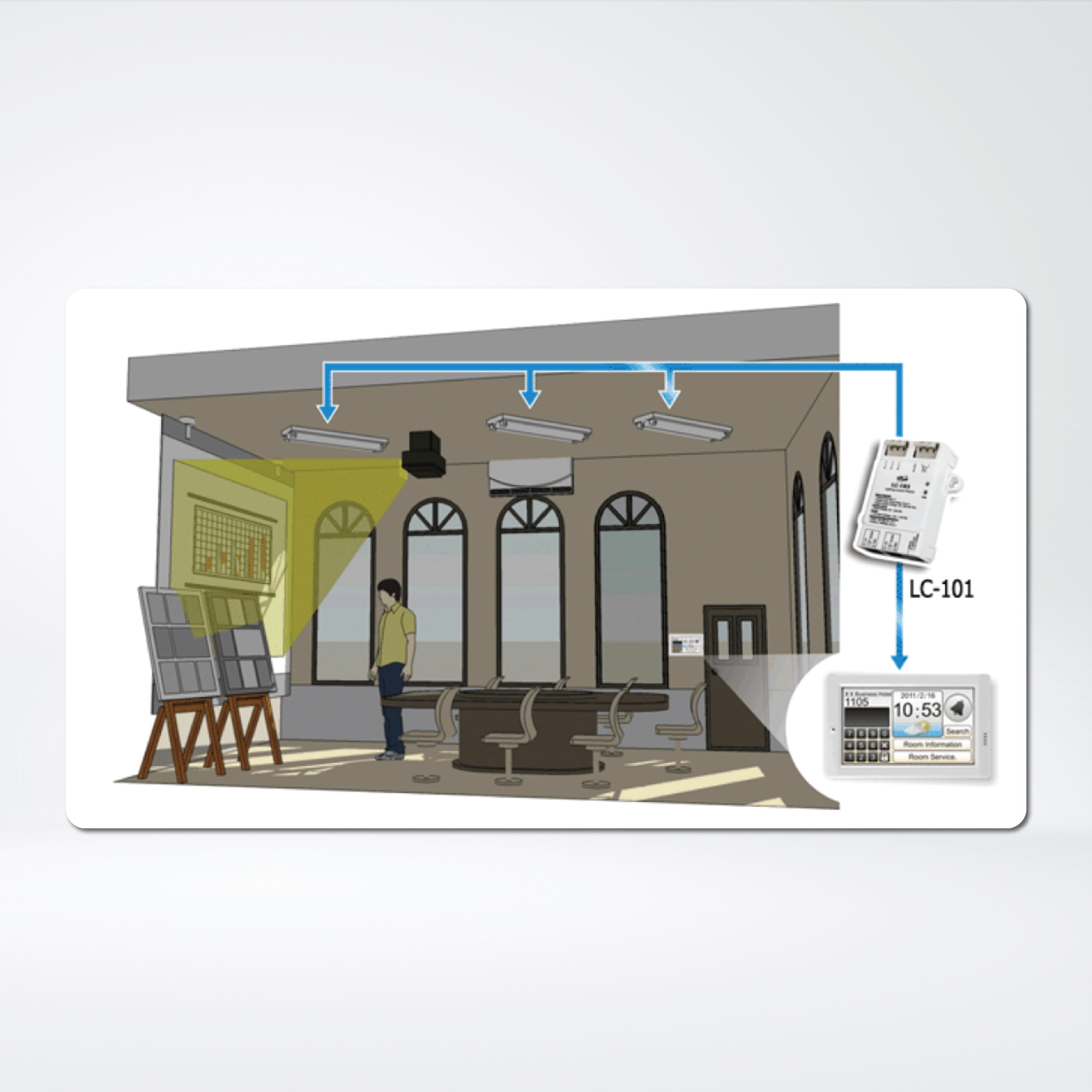

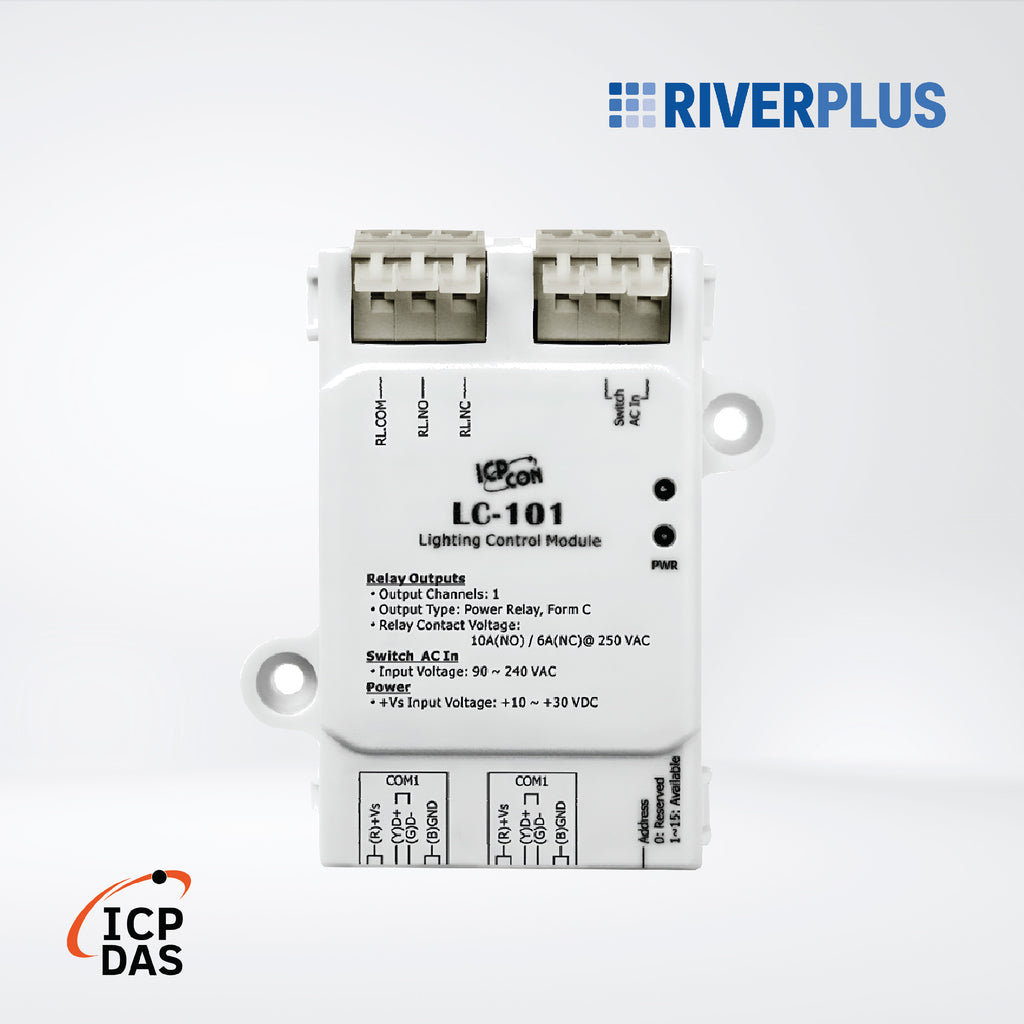

The LC-101 is an easy-to-use lighting control module that requires no specialist skills to install and operate, and no software is needed in order to control the DO channels.
The LC-101 provides 1 channel for digital input (photo couple isolation) and 1 channel for relay output. The output channel is form C type relay, while the input channel is based on a sink-type using a wire connection. The input channel can directly control the relay ON and OFF sequence without requiring a remote host controller. 4 kV ESD protection and 5000 Vrms intra-module isolation are also provided.
When required, communication with the LC-101 is programmable based on the Modbus RTU protocol, and an added benefit is that different addresses can be set for Modbus RTU communication via hardware configuration.

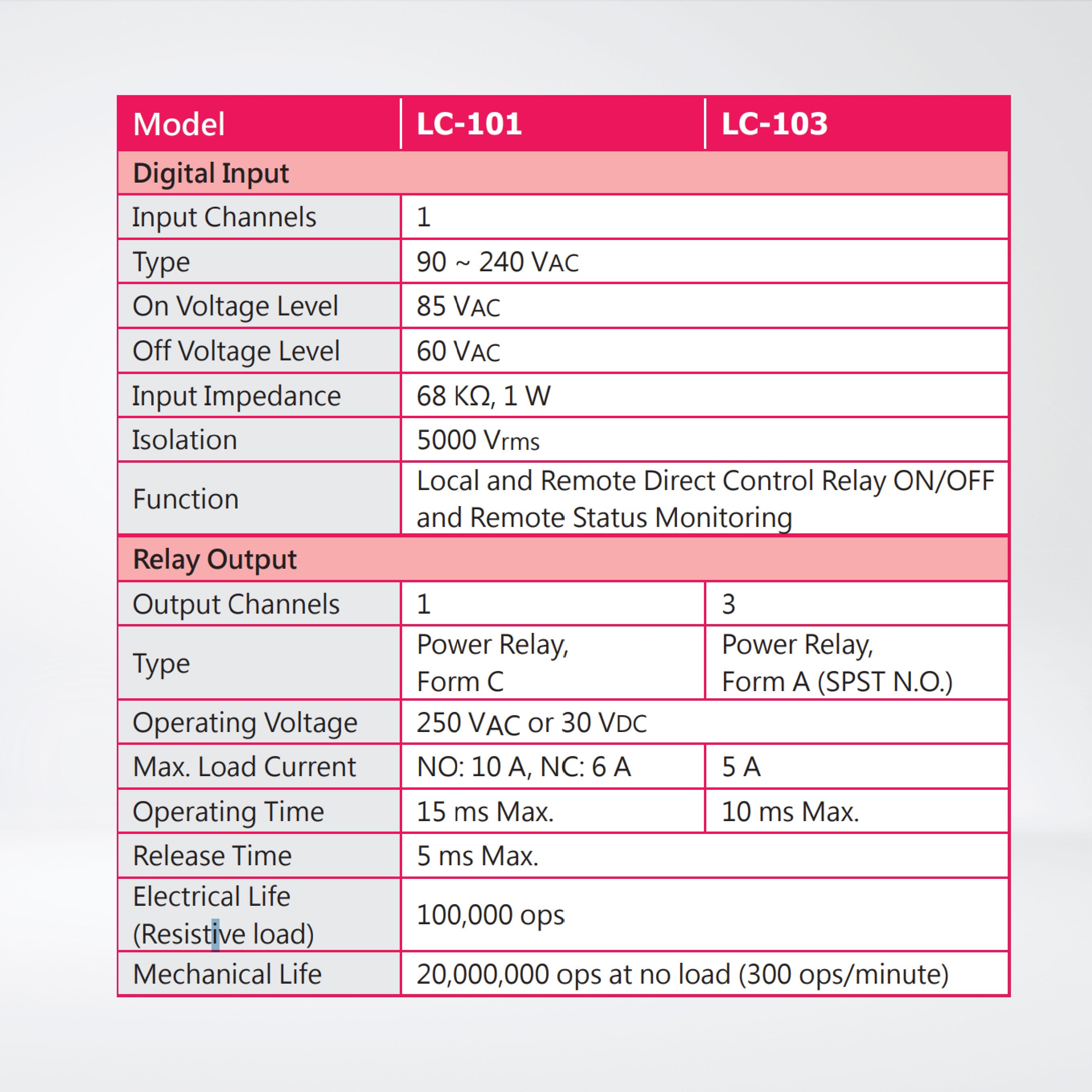

Features
- Digital Input
- Input Channels : 1
- Type : 90 ~ 240 VAC
- On Voltage Level : 85 VAC
- Off Voltage Level : 60 VAC
- Input Impedance : 68 KΩ, 1 W
- Isolation : 5000 Vrms
- Function : Local and Remote Direct Control Relay ON/OFF and Remote Status Monitoring
- Relay Output
- Output Channels :1
- Type : Power Relay, Form C
- Operating Voltage : 250 VAC or 30 VDC
- Max. Load Current : NO: 10 A, NC: 6 A
- Operating Time : 15 ms Max.
- Release Time : 5 ms Max.
- Electrical Life (Resistive load) : 100,000 ops
- Mechanical Life : 20,000,000 ops at no load (300 ops/minute)
- Power-on Value : No
- Safe Value :No

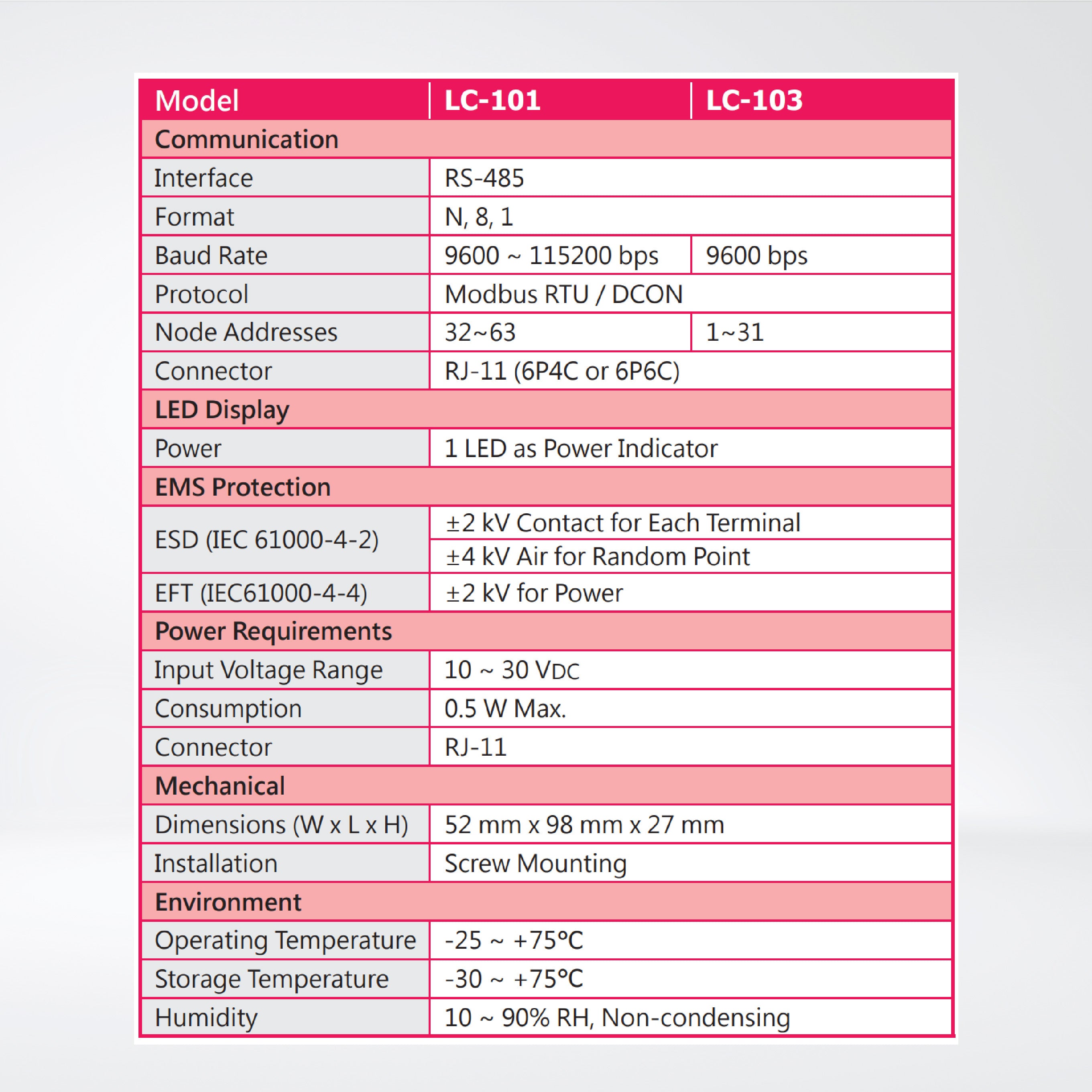

Communication
- Interface : RS-485
- Format : N, 8, 1
- Baud Rate : 1200 ~ 115200 bps
- Protocol : Modbus RTU/DCON
- Node Addresses : Hardware Configuration: 32 ~ 63 Software Configuration: 0~255 for DCON and 1~247 for Modbus RTU standard)
- Connector : RJ-11(6P4C or 6P6C)
LED Display
Power : 1 LED as Power Indicator
EMS Protection
ESD (IEC 61000-4-2) : ±2 kV Contact for Each Terminal
±4 kV Air for Random Point
EFT (IEC 61000-4-4) : ±2 kV for Power
Power Requirements
Input Voltage Range :10 ~ 30 VDC
Consumption : 0.5 W Max.
Connector : RJ-11
Mechanical
Dimensions (W x L x H) : 52 mm x 98 mm x 27 mm
Installation : Screw Mounting
Environment
Operating Temperature : -25°C ~ +75°C
Storage Temperature : -30°C ~ +75°C
Humidity : 10 ~ 95% RH, Non-condensing
