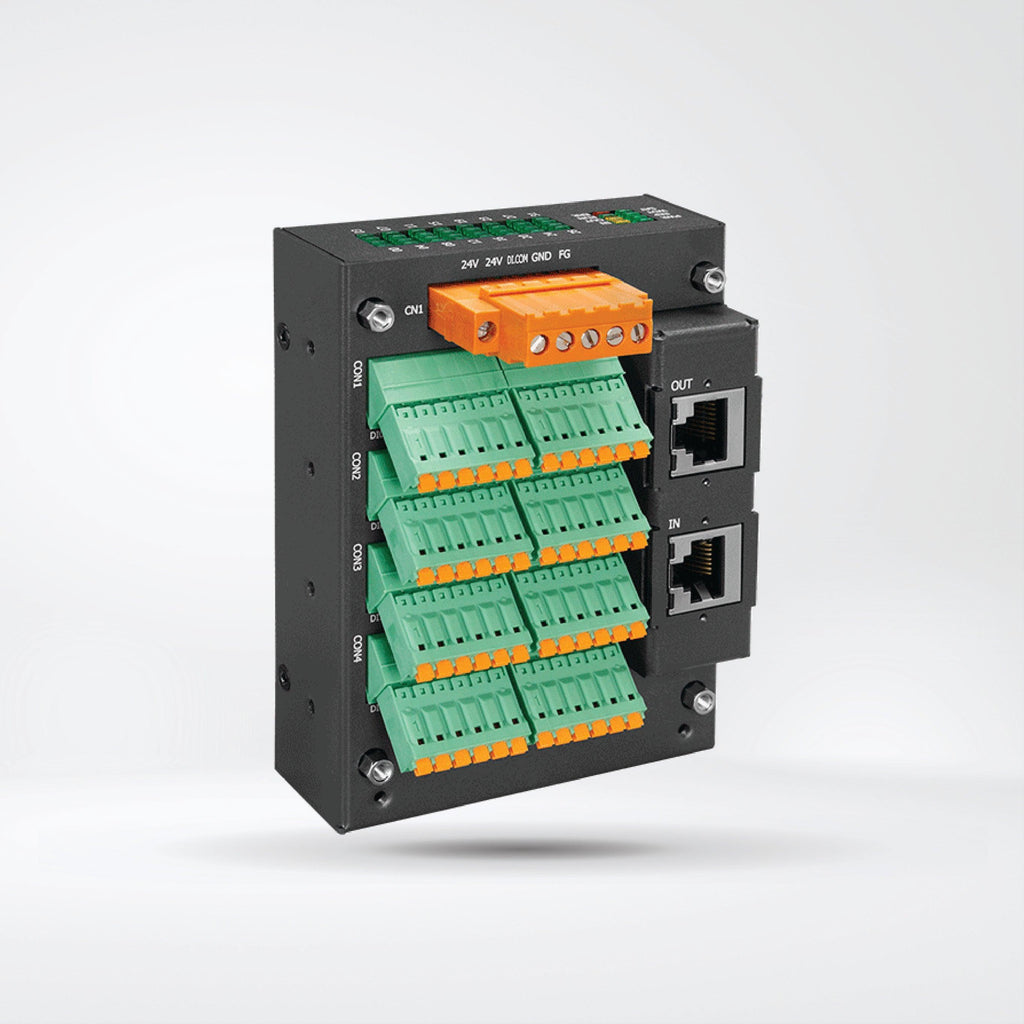

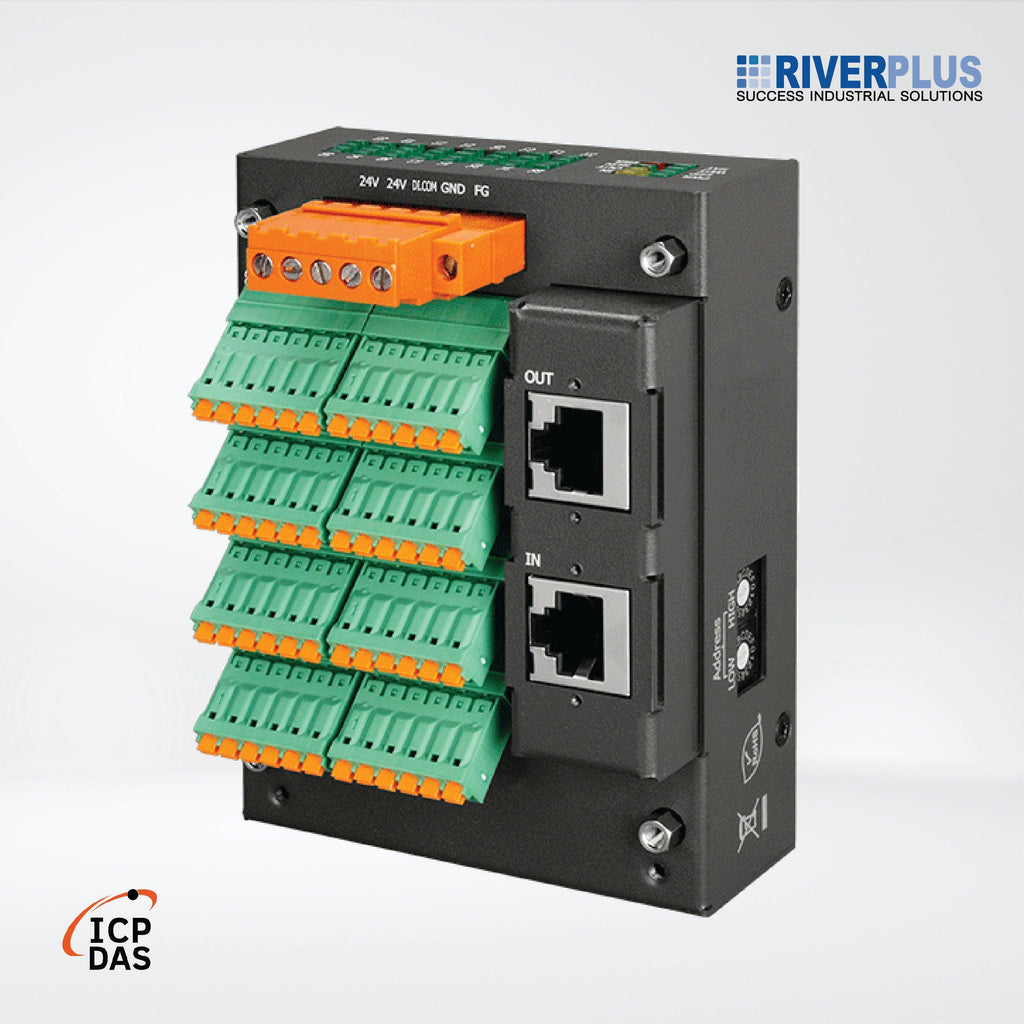

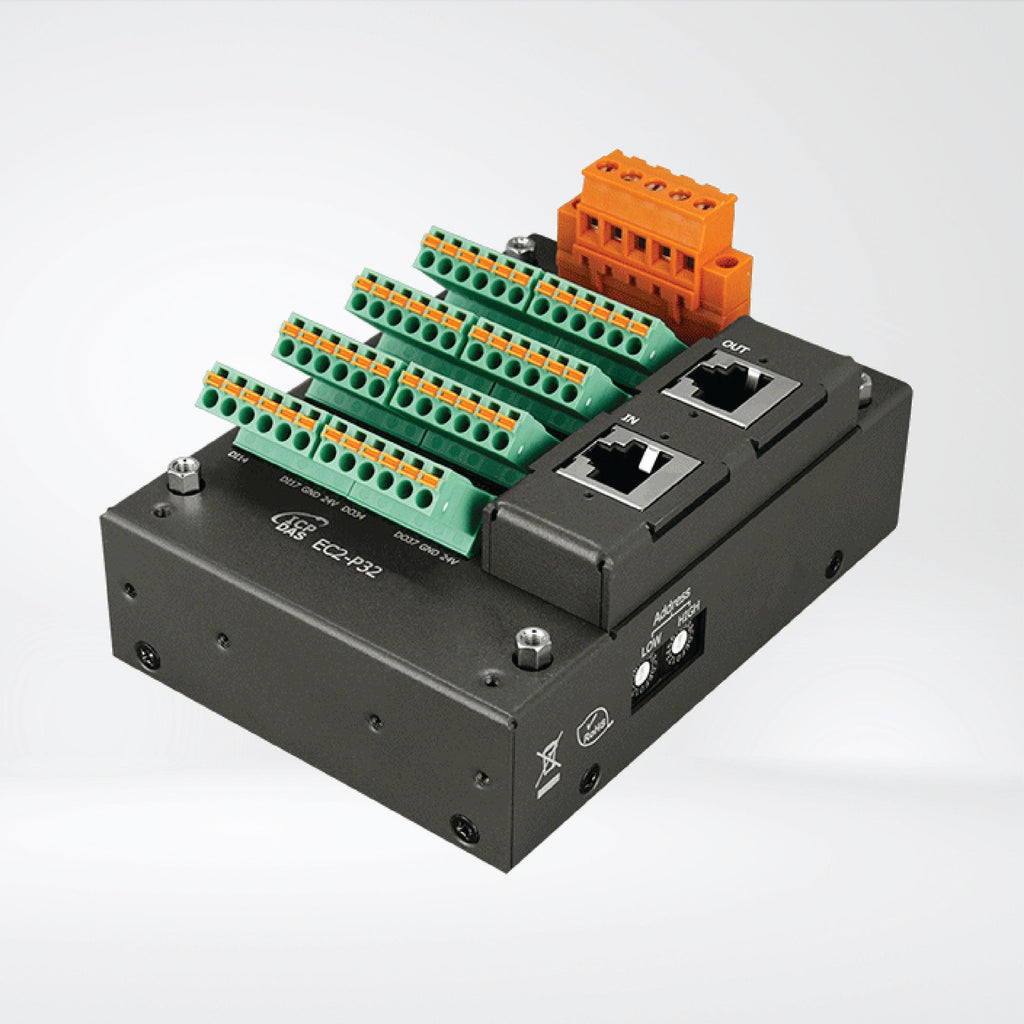

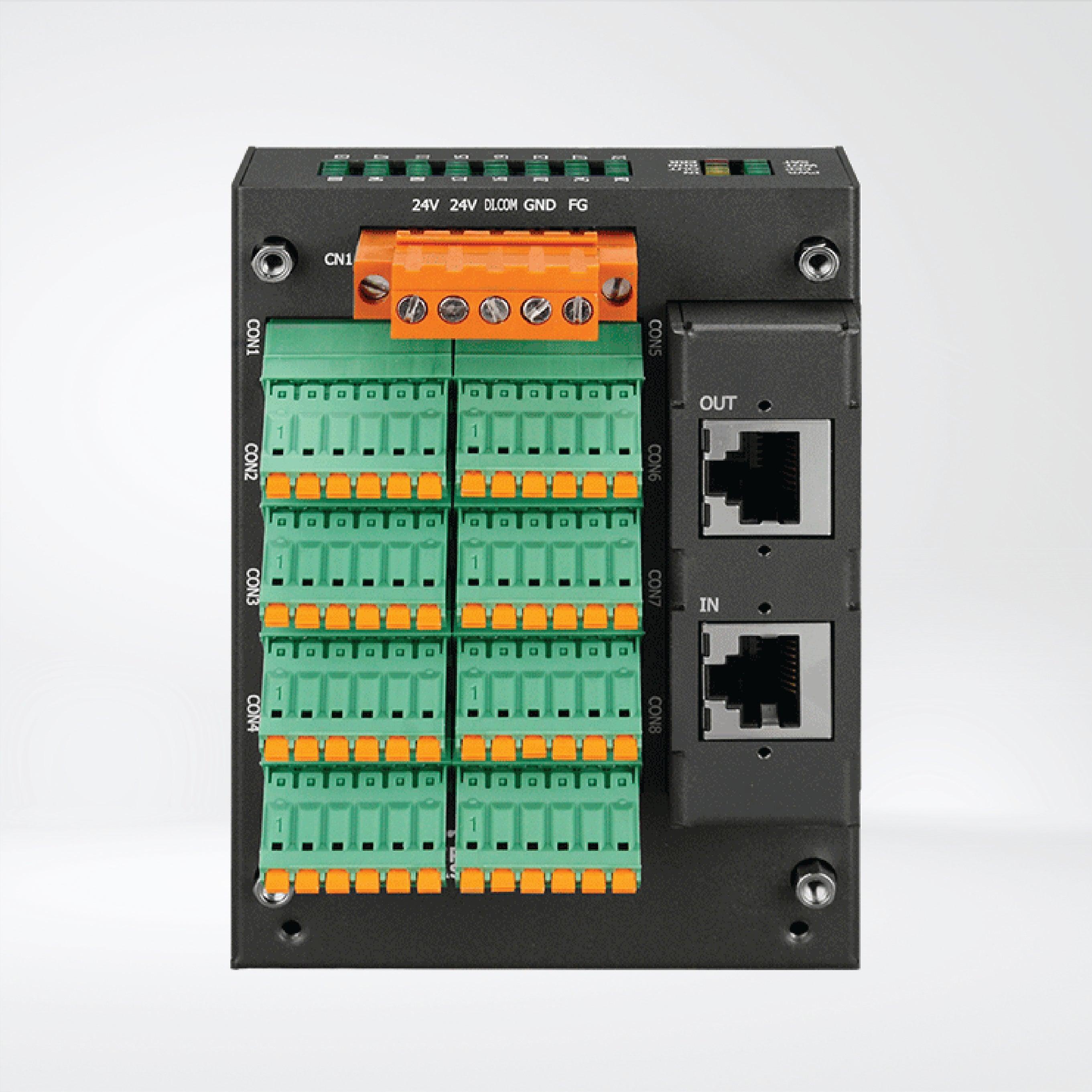

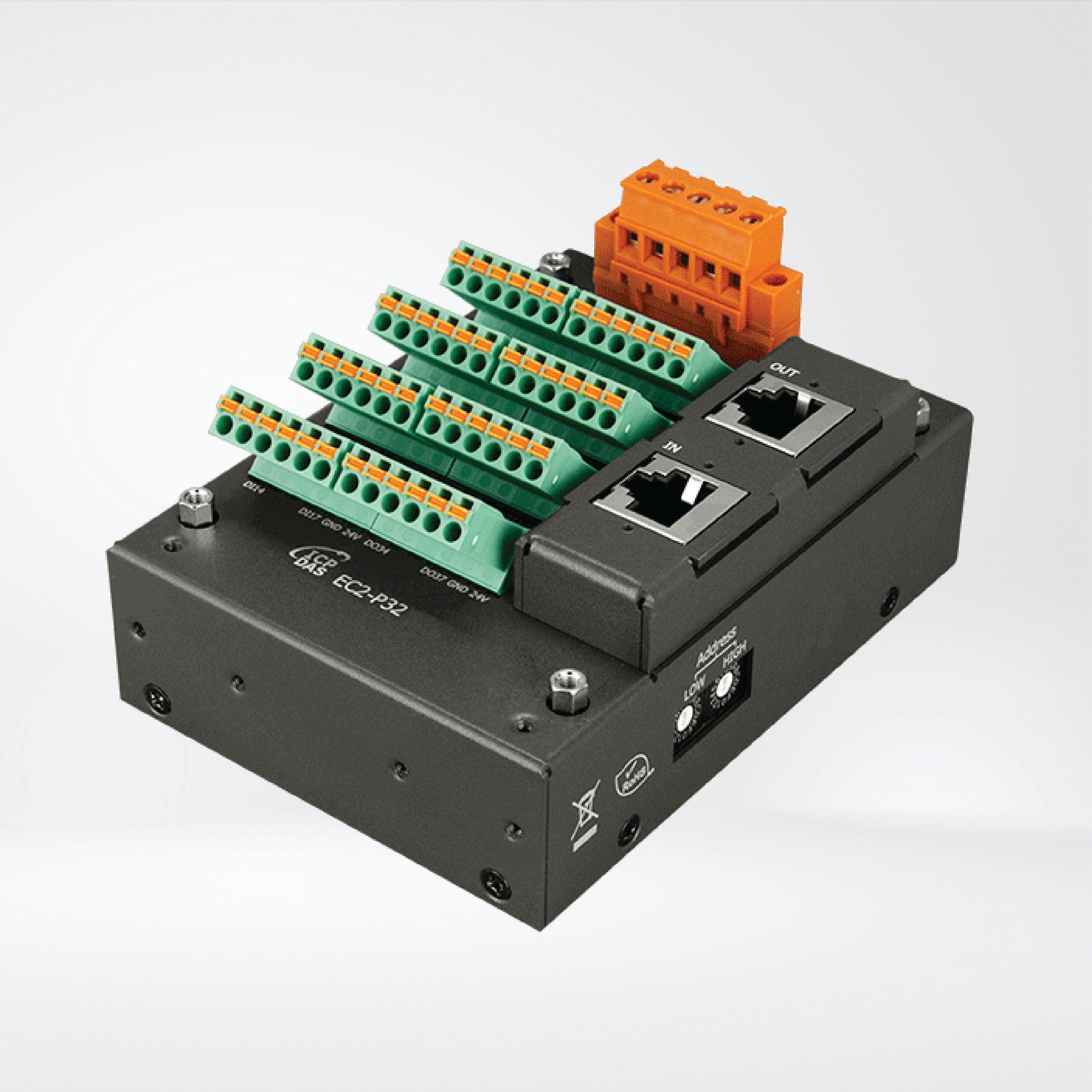

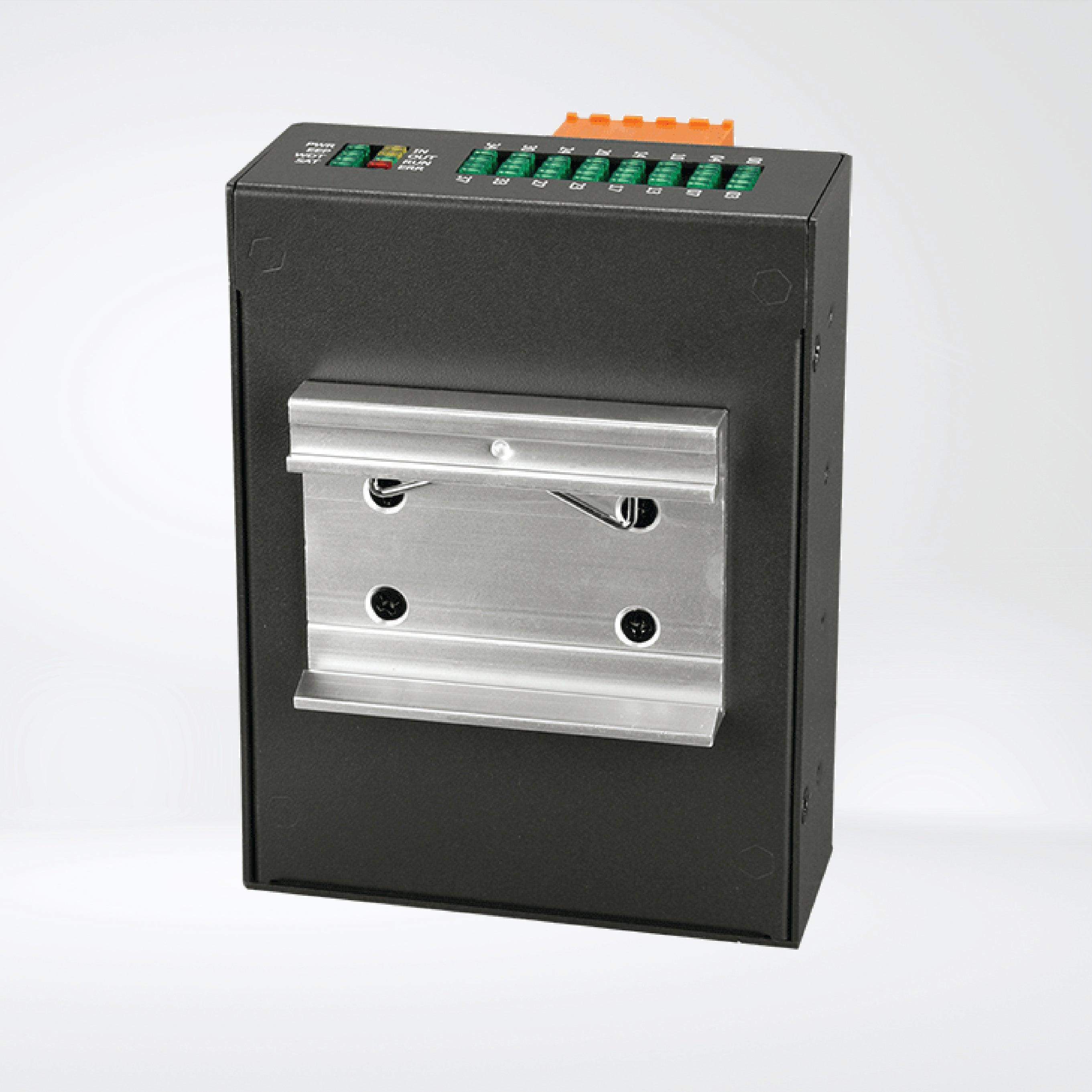

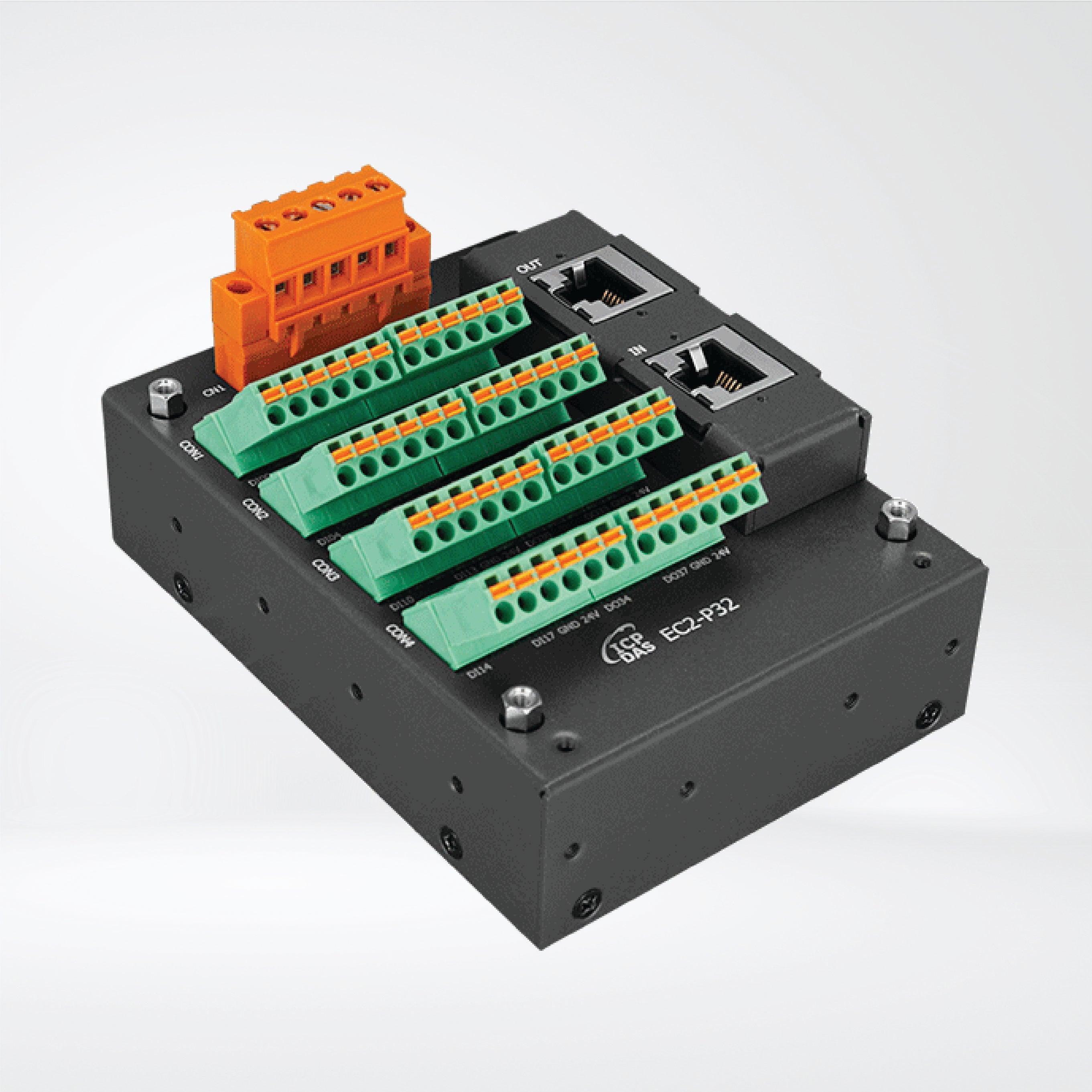

EC2-P32 EtherCAT Slave I/O Module with Isolated 32-channel Digital Inputs

Features

- On the fly processing: EtherCAT
- Powerful MCU handles efficient network traffic
- 2 x RJ-45 bus interface
- Maximum distance between Stations can be up to 100 m (100BASE-TX)

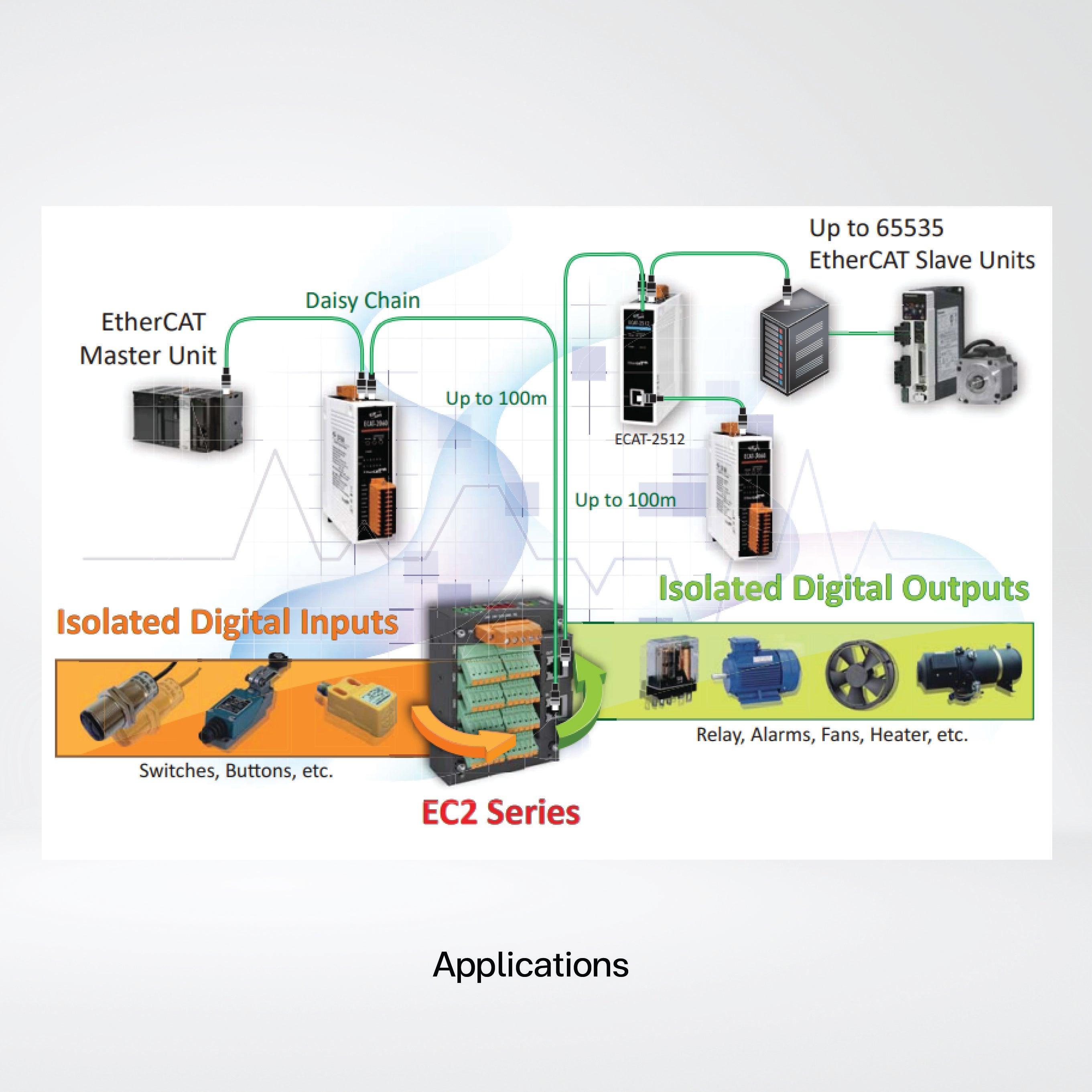

- Support daisy chain and star connection
- EtherCAT conformance test tool verified

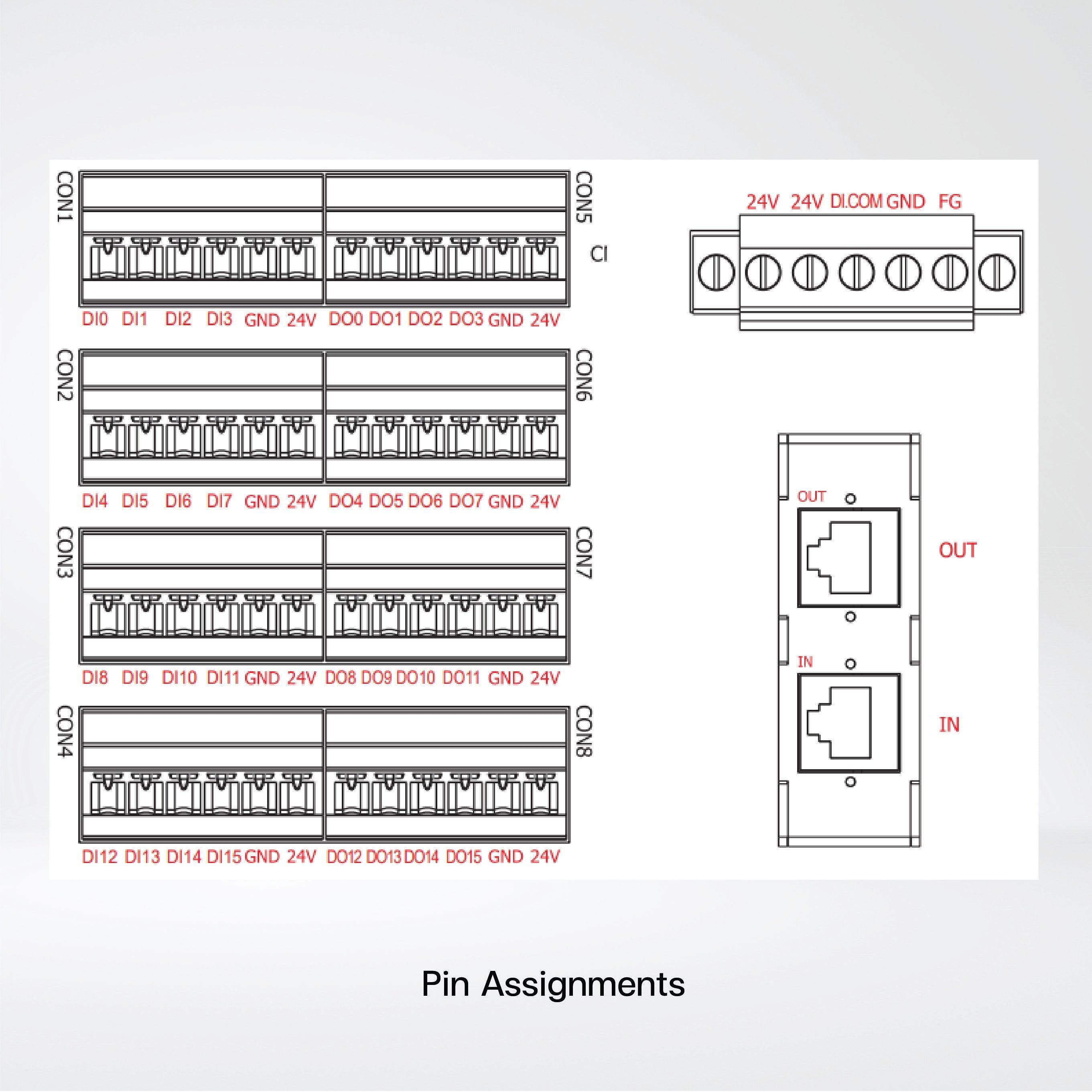

- Removable terminal block connector
- LED indicators for the input status
- Built-In isolated 32-channel digital inputs
- Low Pass Filter
- ESD Protection 4 KV Contact for each channel
