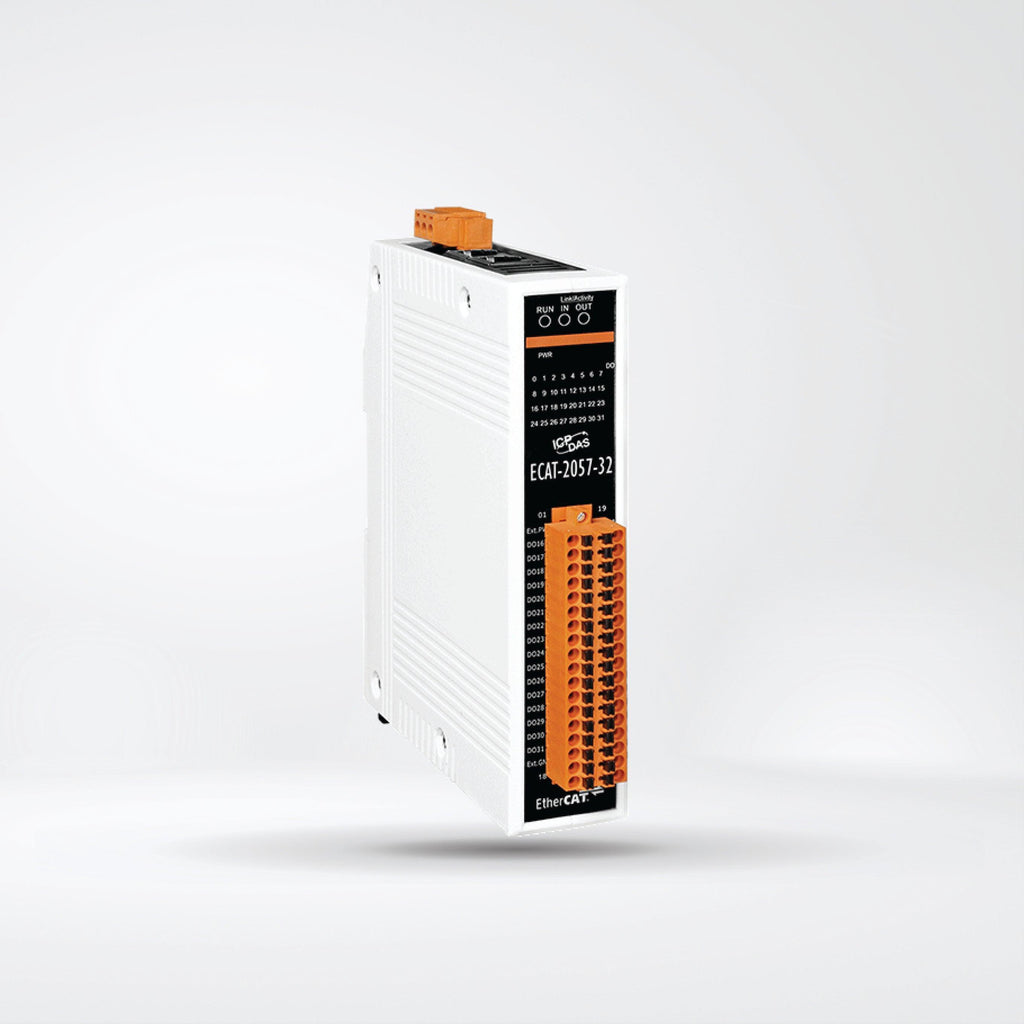

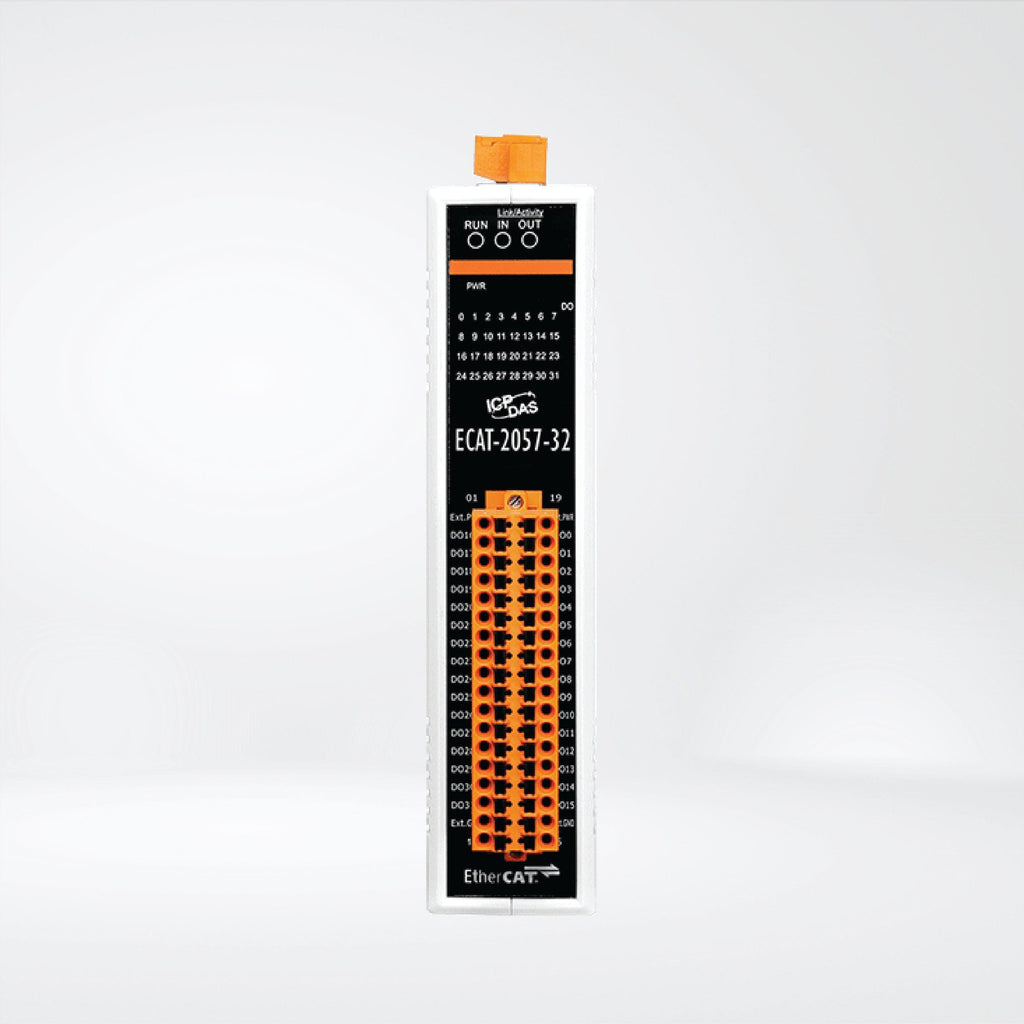

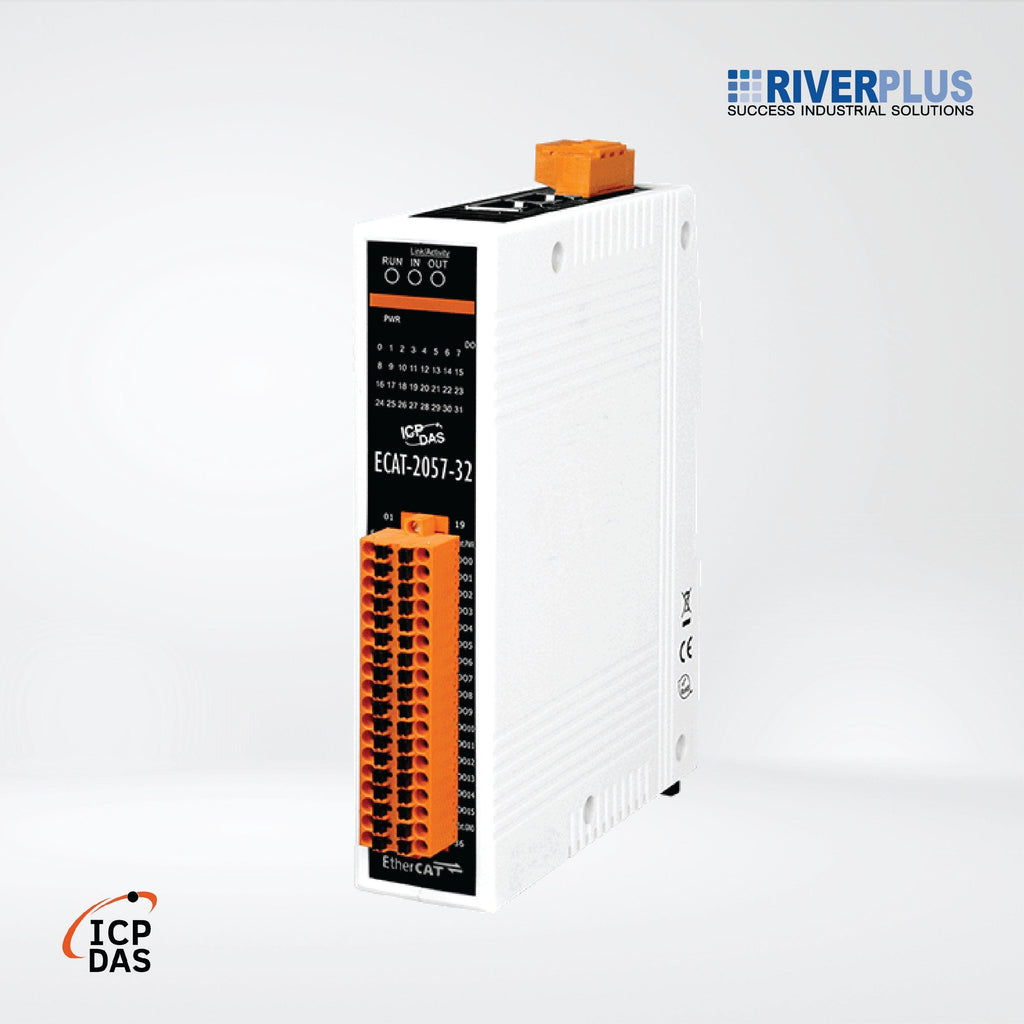

ECAT-2057-32 EtherCAT Slave I/O Module with Isolated 32-ch DO

• On the fly processing: EtherCAT
• Powerful MCU handles efficient network traffic

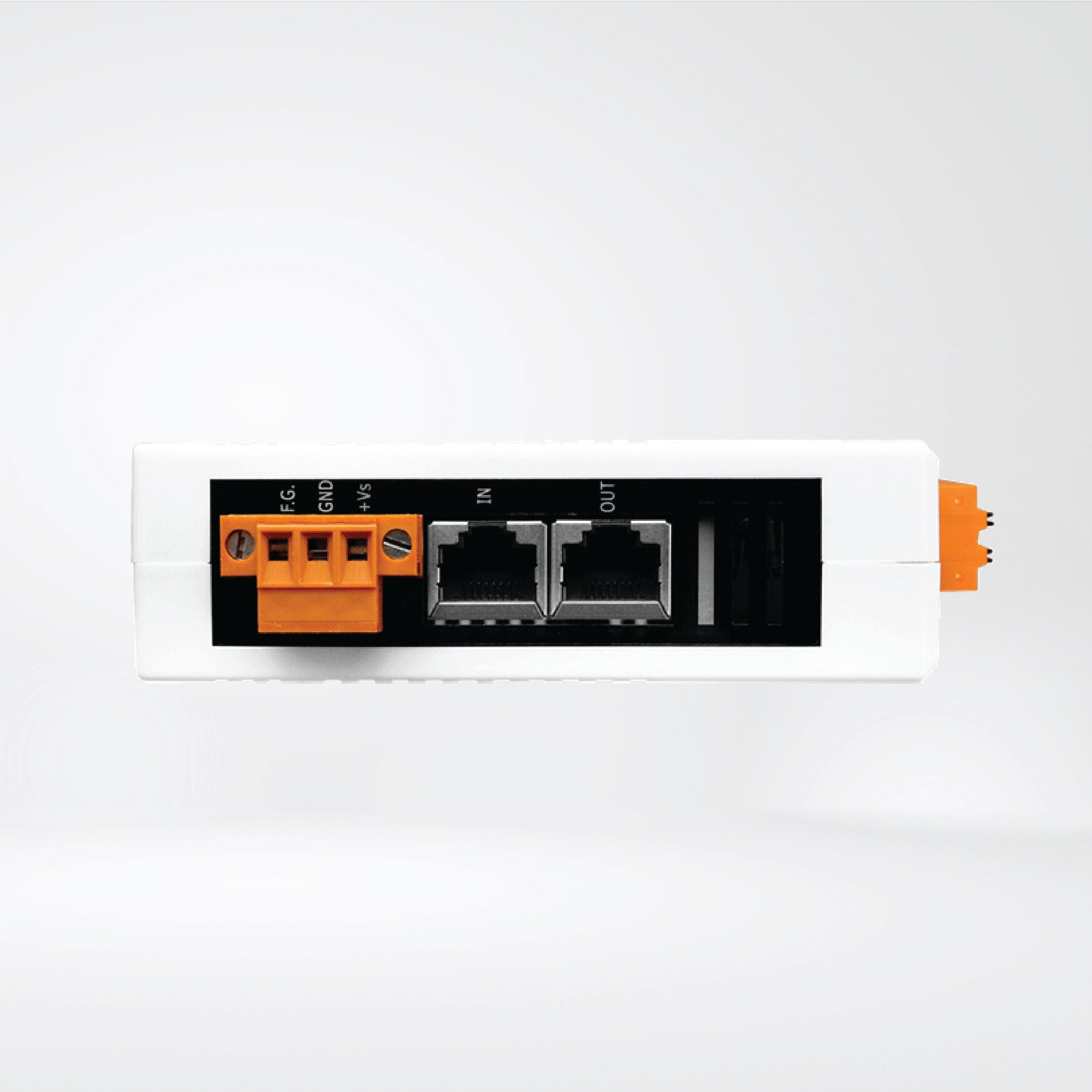

• 2 x RJ-45 bus interface
• Distance between Stations up to 100 m (100BASE-TX)

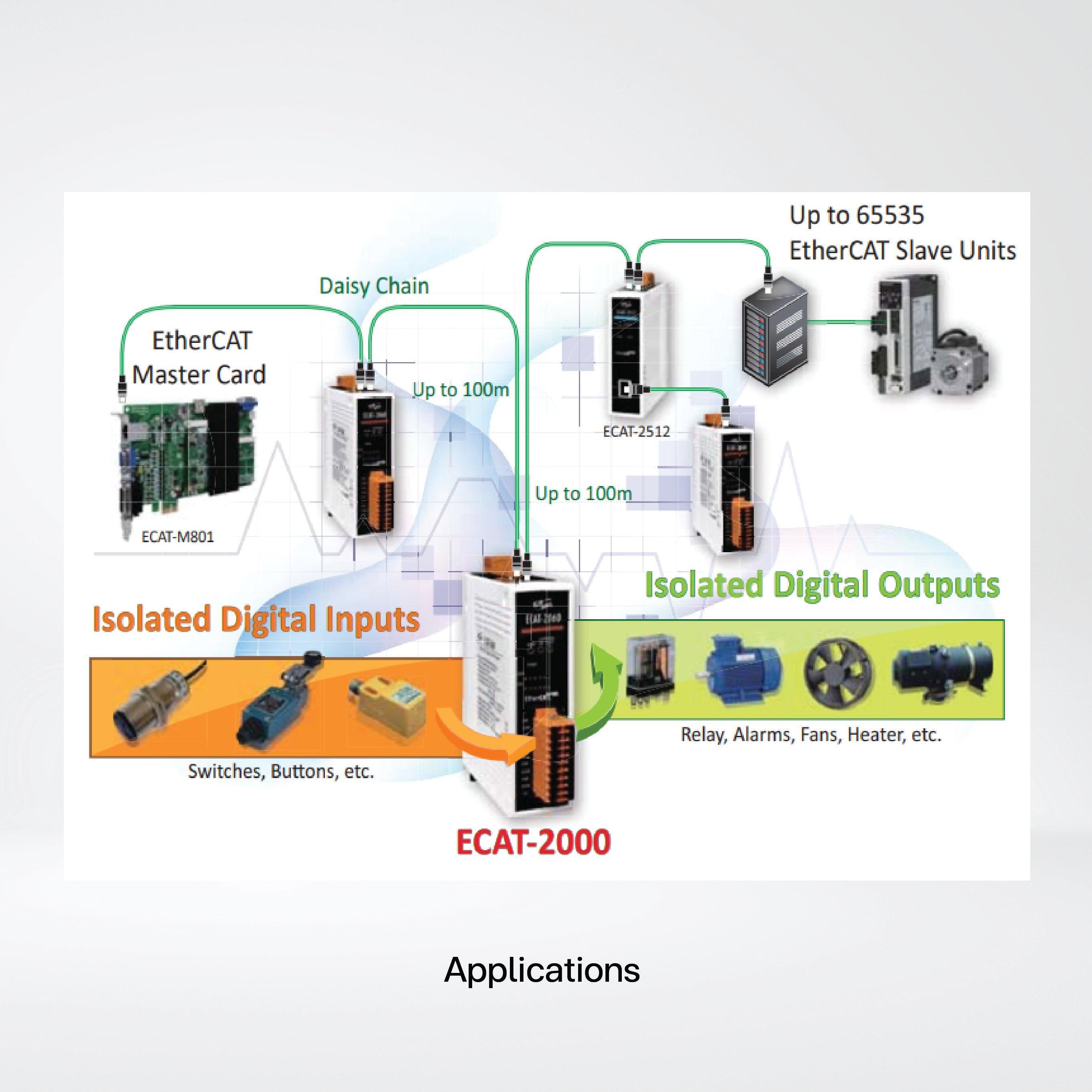

• Support daisy chain connection
• EtherCAT conformance test tool verified

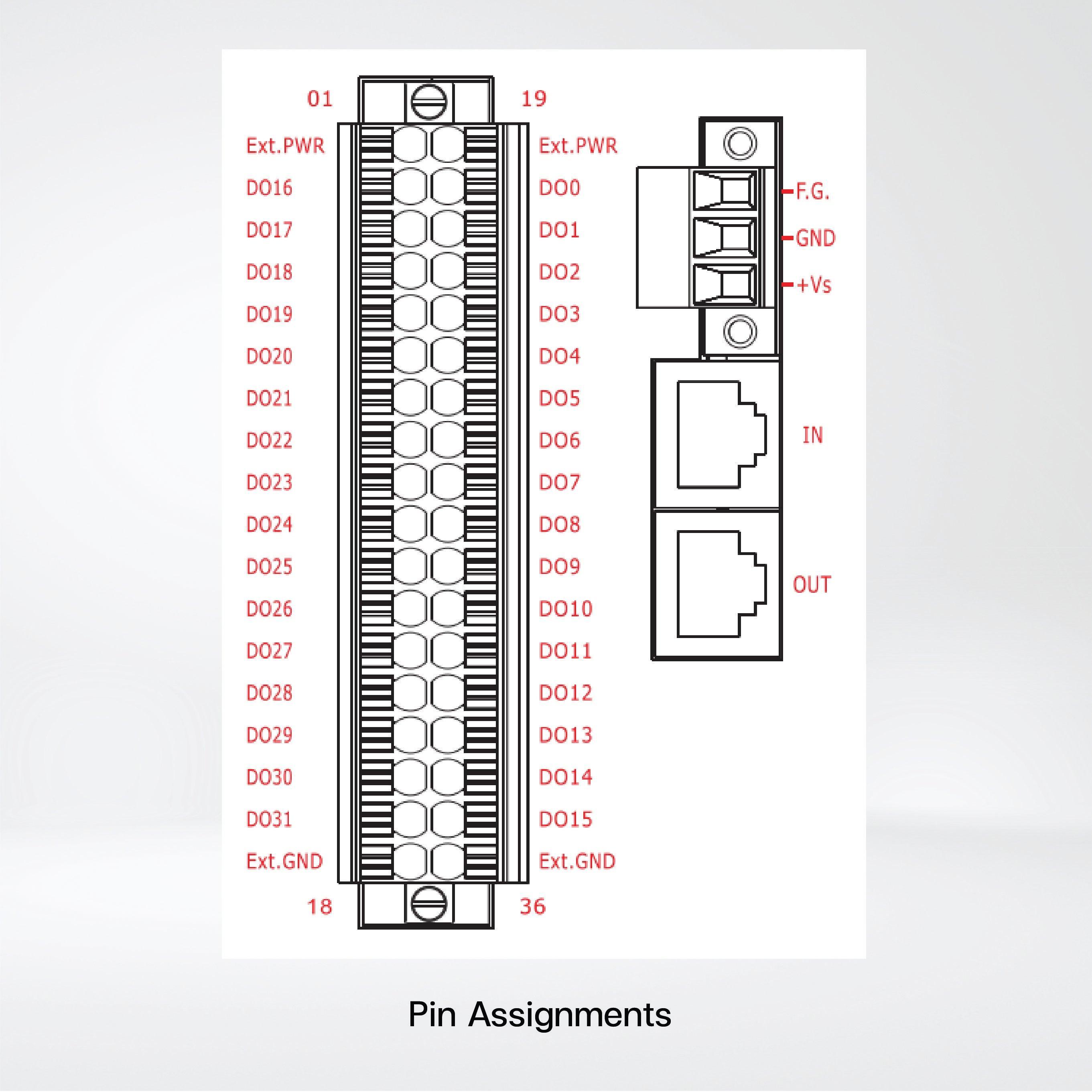

• Removable terminal block connector
• LED indicators for the output status
• Built-In 32 digital outputs
• RoHS compliant
• ESD Protection 4 KV Contact for each channel
