Description

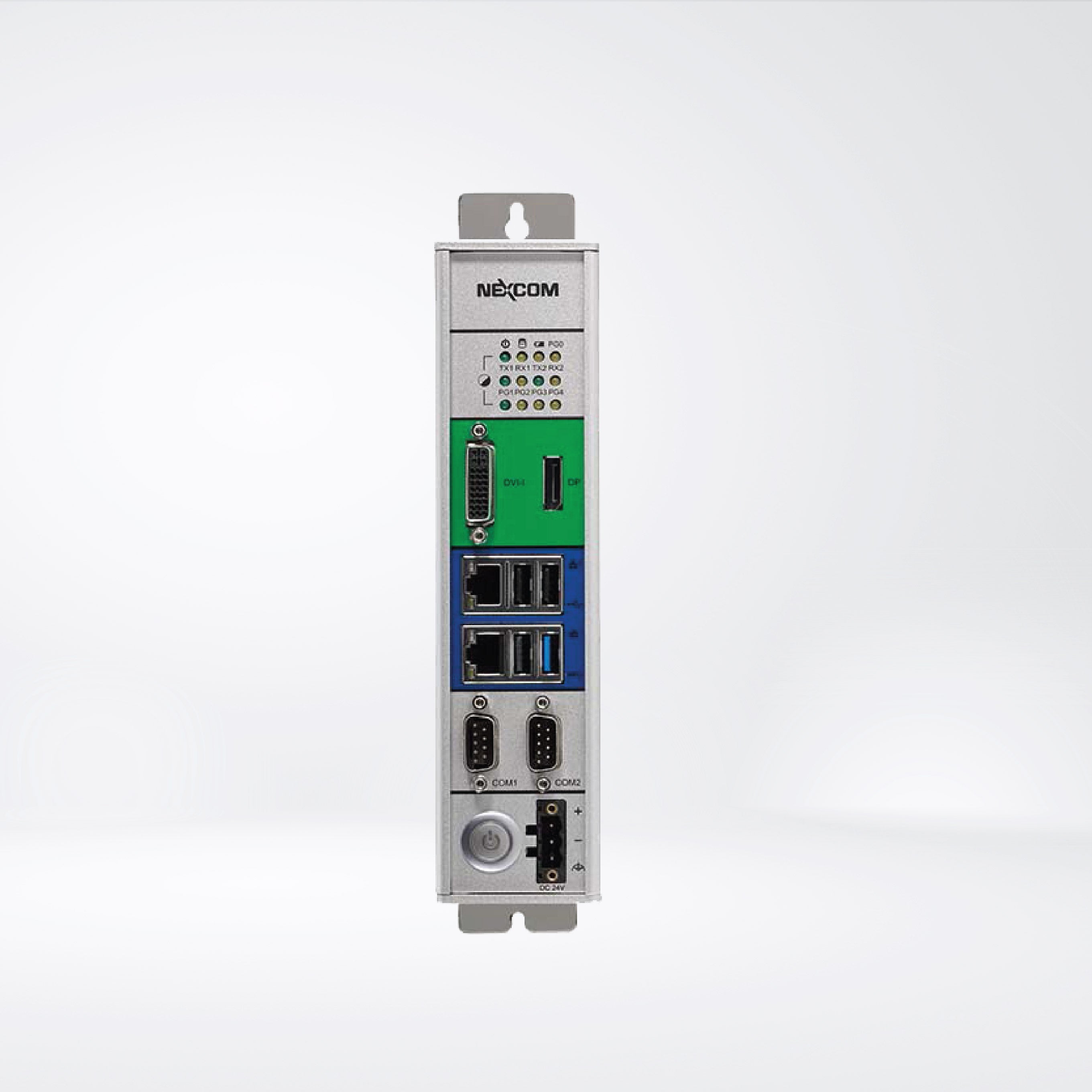

Powered by the latest generation of Intel® Celeron® processor J1900 (formerly codenamed “Bay Trail-D”), NIFE 200S presents intelligent PC-based controller and IoT gateway for factory automation. NIFE 200S supports up to 8G DDR3L memory and support flash type of storage devices like SD (data storage use) and mSATA for better vibration resistance. The NIFE 200S support operating temperature from -10°C to 60°C with typical DC input 24V ±20% range. The NIFE 200S has high integration ability with optional mini-PCIe module and 2 x COM ports, which makes it a reliable connection with devices in factory automation applications, IoT applications (with optional GbE LAN, Wi-Fi, 3.5G/4G LTE module) and communication applications (with optional GPIO, RS232/422/485). NIFE 200S is definitely the top choice for M2M intelligent system as a factory automation controller and gateway.
Features
- Onboard Intel® Celeron® processor J1900 Quad Core 2.0GHz
- Dual independent display output
- 2 x Intel® I210-AT GbE LAN ports support WoL, teaming and PXE
- 3 x USB 2.0 & 1 x USB 3.0
- 2 x RS232/422/485 with 2.5KV isolation protection
- 2 x mini-PCIe socket for optional wireless modules
- Support -10°C to 60°C operating temperature
- Typical 24V DC input
